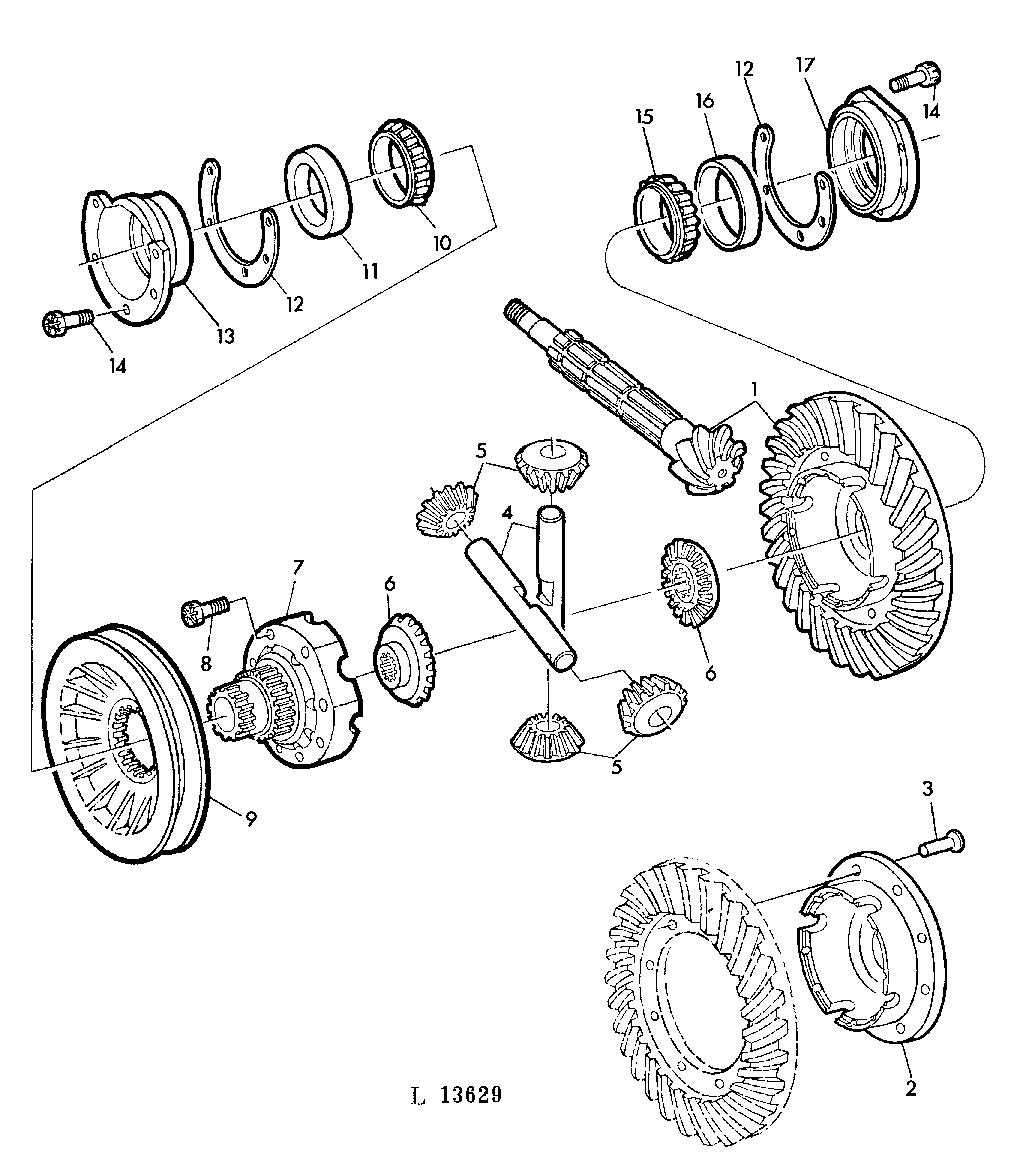

DIFFERENTIAL (WITH 4 DIFFERENTIAL PINIONS) [02D20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL38555	1	Kit	ASSY,INCL KEYS 2,3,Z=9/39 (SUB FOR AT21622)
1	AL35155	1	KIT	ASSY,INCL KEYS 2,3,Z=9/43 (SUB FOR AT21623)
1	AL39098	1	KIT	ASSY,INCL KEYS 2,3,Z=9/46 (SUB FOR AT24183)
1	AL39413	1	KIT	ASSY,INCL KEYS 2,3,Z=7/40 (SUB FOR AT24185)
2	T30253	1	HOUSING	-
3	L40557	8	RIVET	7/16"X1-11/16" (SUB FOR L29871, T30254)
4	L29226	2	SHAFT	(SUB FOR T21875)
5	L29227	4	GEAR	Z=11 (SUB FOR T21876)
6	T29394	2	BEVEL GEAR	Z=18 (SUB FOR T21971)
7	T21974	1	HOUSING	(ORD R51500, R51501)
7	R51500	1	HOUSING	LH
8	T21430	8	CAP SCREW	3/8"
9	T21596	1	BRAKE DRUM	(A)
10	JD8147	1	Bearing Cone	LH
11	JD7425	1	Bearing Cup	LH
12	T21434	1	SHIM	0,08MM(.003")
12	T21435	1	SHIM	0,13MM(.005")
12	T21436	1	SHIM	0,25MM(.010")
12	T29862	1	SHIM	0,51MM(.020")
13	T21433	1	BEARING HOUSING W/O BEARING	LH
14	T22874	10	BOLT	3/8"
15	JD8946	1	Bearing Cone	RH
16	JD8206	1	Bearing Cup	RH
17	T21432	1	BEARING HOUSING W/O BEARING	RH

DIFFERENTIAL (WITH 4 DIFFERENTIAL PINIONS) [02D20]
