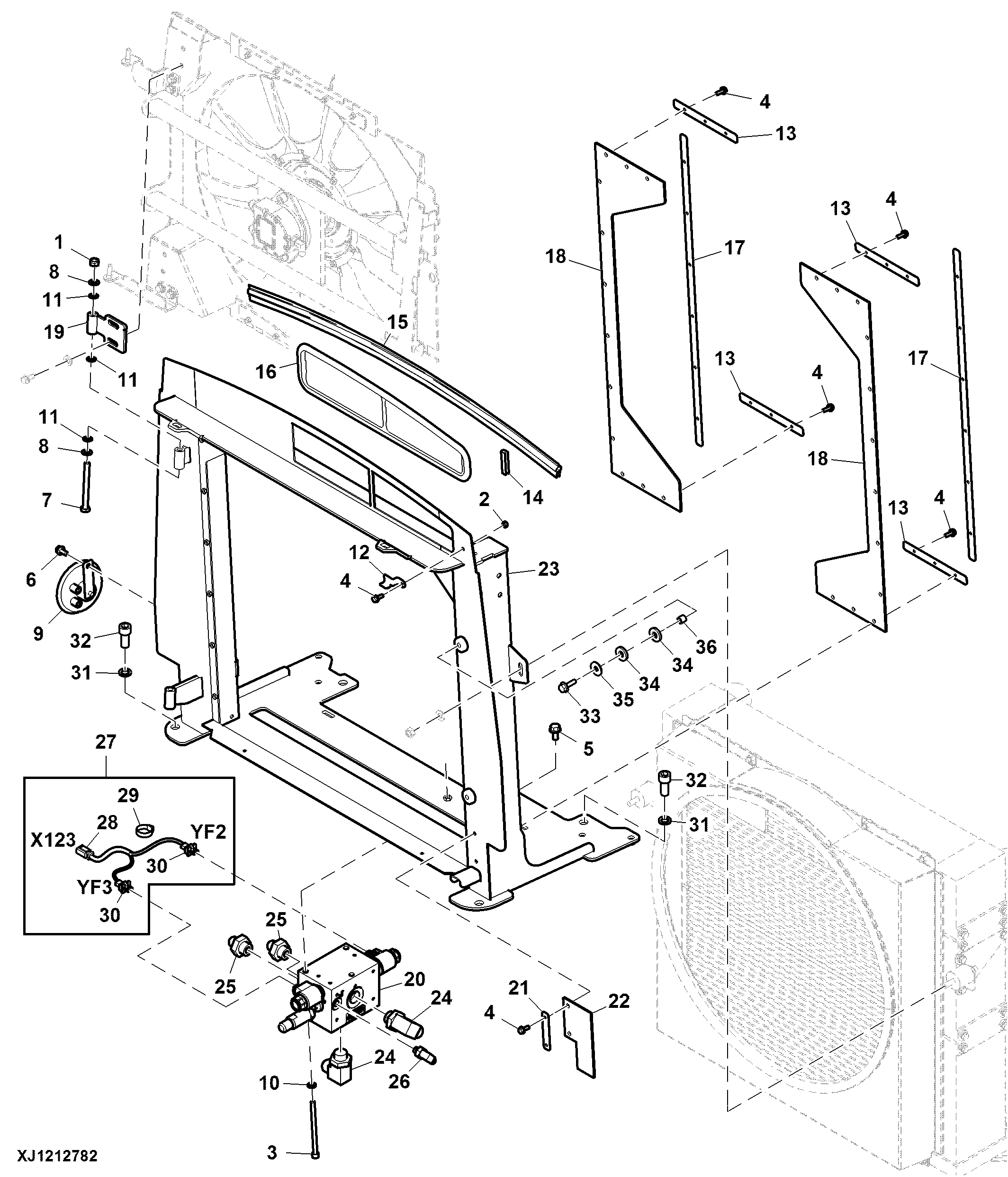

Oil Cooler Bracket / Radiator Shroud (005277 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7610	2	Lock Nut	M10
2	14M7622	1	Nut	M6
3	19M9180	2	Screw	M8 X 120
4	19M9443	27	Screw	M6 X 16
5	19M9448	1	Screw	M10 X 20
6	19M9567	1	Screw	M8 X 16
7	19M9577	2	Cap Screw	M10 X 100
8	24M7488	4	Washer	10.500 X 20 X 2 mm
9	F005312	1	Horn	-
10	F064435	2	Lock Washer	-
11	F071010	6	Shim	TK = 1.5 mm
12	F625554	1	Plate	-
13	F638681	4	Plate	-
14	F639072	3	Weatherstrip	LGTH = 50 mm
15	F639073	1	Weatherstrip	LGTH = 975 mm
16	F642187	1	Grate	-
17	F642194	2	Plate	-
18	F642197	2	Plate	-
19	F643985	2	Hinge	-
20	F070041	1	Control Valve	COMPONENTS ON SEPARATE PAGE
21	F649123	1	Plate	-
22	F649124	1	Plate	-
23	F676006	1	Frame	-
24	F005049	2	Elbow Fitting	-
25	F012507	2	Fitting	-
26	F024599	1	Elbow Fitting	-
27	F639603	1	Wiring Harness	-
28	F059559	1	Electrical Connector Assy	To Transmission Controller
28	57M7619	1	Elec.Connect Locking Device	Not Illustrated
28	57M7541	4	Elec. Connector Terminal	Not Illustrated
29	Z36392	1	Tie Band	-
30	F056901	2	Elec. Connector Terminal	To Fan Freewheeling Solenoid and To Fan Backwards Solenoid
30	F031719	2	Guard	Not Illustrated
30	57M9532	4	Elec. Connector Terminal	Not Illustrated
30	57M7399	4	Elec. Connector Seal	Not Illustrated
31	F005012	4	Lock Washer	-
32	19M9513	4	Screw	M16 X 35
33	F062120	2	Screw	-
34	F602701	4	Isolator	-
35	24M7489	2	Washer	10.500 X 30 X 2.500 mm
36	F676928	2	Bushing	-

Oil Cooler Bracket / Radiator Shroud (005277 - )

Нет текстового описания
