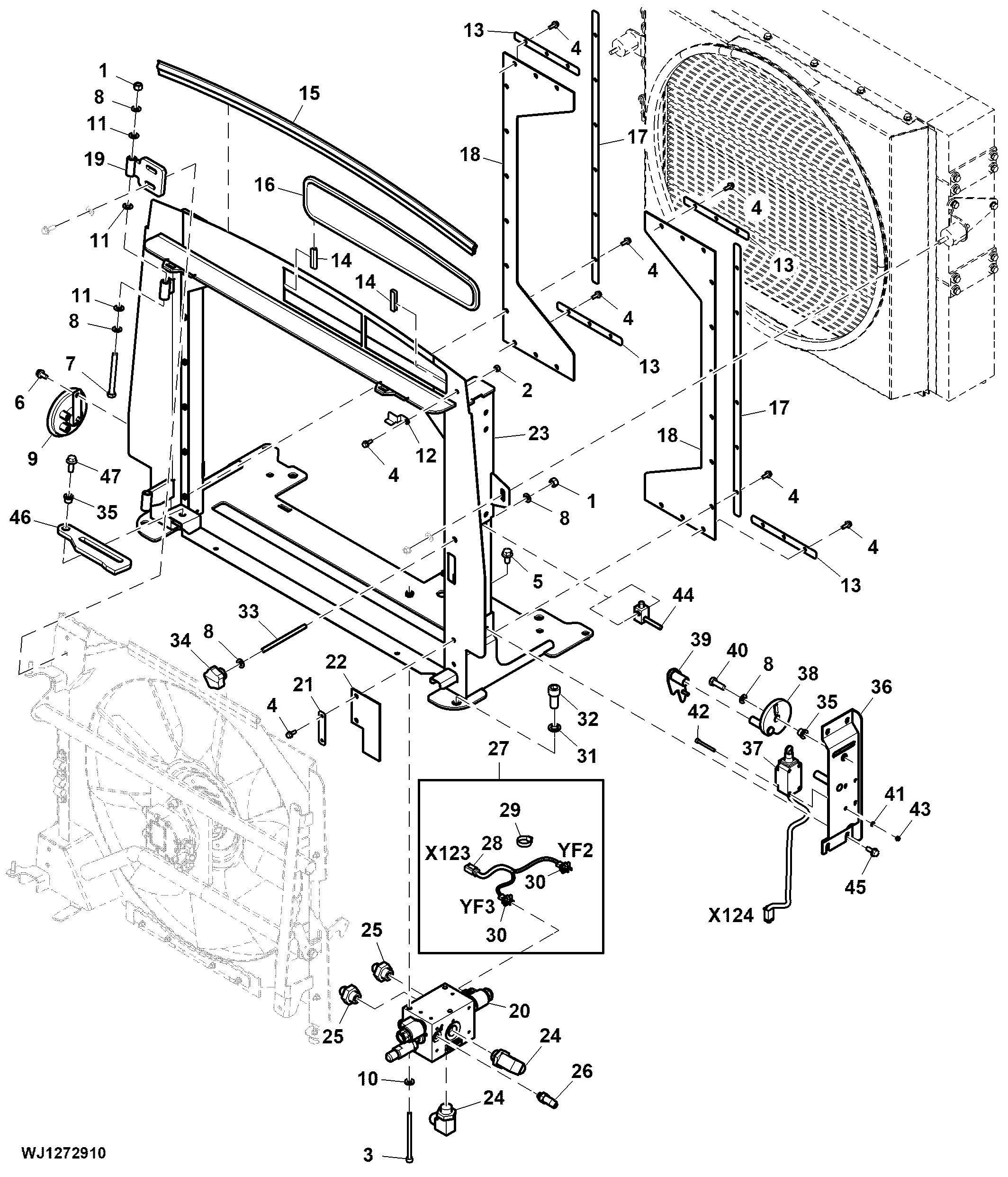

Oil Cooler Bracket / Radiator Shroud ( - 005276)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7610	3	Lock Nut	M10
2	14M7622	1	Nut	M6
3	19M9180	2	Screw	M8 X 120
4	19M9443	27	Screw	M6 X 16
5	19M9448	1	Screw	M10 X 20
6	19M9567	1	Screw	M8 X 16
7	19M9577	2	Cap Screw	M10 X 100
8	24M7488	7	Washer	10.500 X 20 X 2 mm
9	F005312	1	Horn	-
10	F064435	2	Lock Washer	-
11	F071010	6	Shim	TK = 1.5 mm
12	F625554	1	Plate	-
13	F638681	4	Plate	-
14	F639072	3	Weatherstrip	LGTH = 50 mm
15	F639073	1	Weatherstrip	LGTH = 975 mm
16	F642187	1	Grate	-
17	F642194	2	Plate	-
18	F642197	2	Plate	-
19	F638570	2	Hinge	-
20	F070041	1	Control Valve	COMPONENTS ON SEPARATE PAGE
21	F649123	1	Plate	-
22	F649124	1	Plate	-
23	F642160	1	Frame	-
24	F005049	2	Elbow Fitting	-
25	F012507	2	Fitting	-
26	F024599	1	Elbow Fitting	-
27	F639603	1	Wiring Harness	-
28	57M7619	1	Elec.Connect Locking Device	Not Illustrated
28	57M7541	4	Elec. Connector Terminal	Not Illustrated
28	F059559	1	Electrical Connector Assy	To Transmission Controller
29	Z36392	1	Tie Band	-
30	F056901	2	Elec. Connector Terminal	To Fan Freewheeling Solenoid and To Fan Backwards Solenoid
30	57M7399	4	Elec. Connector Seal	Not Illustrated
30	57M9532	4	Elec. Connector Terminal	Not Illustrated
30	F031719	2	Guard	Not Illustrated
31	F005012	4	Lock Washer	-
32	19M9717	4	Screw	M16 X 30
33	F638635	1	Stud	-
34	F070039	1	Knob	-
35	F638486	2	Bushing	-
36	F636158	1	Cover	-
37	F640466	1	Wiring Harness	-
38	F640711	1	Lock	-
39	F647096	1	Lock	-
40	19M9640	1	Cap Screw	M10 X 30
41	24M7502	4	Washer	5.300 X 10 X 1 mm
42	19M9482	4	Screw	M5 X 50
43	F003585	4	LOCK NUT	-
44	F638516	1	Adapter Fitting	-
45	19M9568	4	Screw	M8 X 20
46	F649120	1	Plate	-
47	19M9698	1	Screw	M10 X 25

Oil Cooler Bracket / Radiator Shroud ( - 005276)
