Hydraulic Drive Pump and Work Pump Mounting

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F003764	1	O-RING	-
2	F636549	1	Flange	-
3	19H3942	4	Cap Screw	1/2" X 1-1/2"
4	24M7491	4	Washer	13 X 24 X 2.500 mm
5	F005073	1	Tee Fitting	-
6	R26773	1	O-Ring	-
7	F056540	1	Fitting	-
8	F057116	1	Fitting	-
9	F024359	1	Tube	-
10	19M9659	4	Cap Screw	M16 X 45
11	F604148	6	Washer	-
12	F678180	1	Hydraulic Pump	Hydraulic Drive Pump, NLA; ORDER F698287, COMPONENTS ON SEPARATE PAGE
12	F698287	1	Hydraulic Pump	Hydraulic Drive Pump, COMPONENTS ON SEPARATE PAGE
13	F070737	2	Fitting	-
14	F070739	2	Elbow Fitting	-
15	F057112	1	Fitting	-
16	F005076	1	Tee Fitting	-
17	F005071	1	NIPPLE	-
18	F005047	1	Elbow Fitting	-
20	19H3952	2	Cap Screw	5/8" X 1-3/4"
21	F074832	1	Hydraulic Pump	COMPONENTS ON SEPARATE PAGE
21	F683495	1	Hydraulic Pump	Also S.N. 005391 and 005395; COMPONENTS ON SEPARATE PAGE
21	F074832	1	Hydraulic Pump	-
21	F074832	1	Hydraulic Pump	-
22	F648658	1	Manifold	-
23	T78393	2	O-Ring	-
24	F004405	2	Flange	-
25	19H3616	4	Screw	1/2" X 3"
26	F010079	1	COUPLING NUT	-
27	F025424	1	Fitting	-
28	F031738	1	Tee Fitting	-
30	F012520	1	T-CONNECTION	-
32	F056676	1	Hydraulic Hose	LGTH = 1400 mm
33	F008489	4	Hose Clamp	-
34	F072510	1	Suction Hose	LGTH = 780 mm
34	F072510	1	Suction Hose	-
34	F072510	1	Suction Hose	-
34	F692854	1	Suction Hose	LGTH = 760 mm, Also S.N. 005391 and 005395
35	F015551	2	Hose Clamp	-
36	F063140	1	Suction Hose	LGTH = 1270 mm
37	F005045	2	Elbow Fitting	-

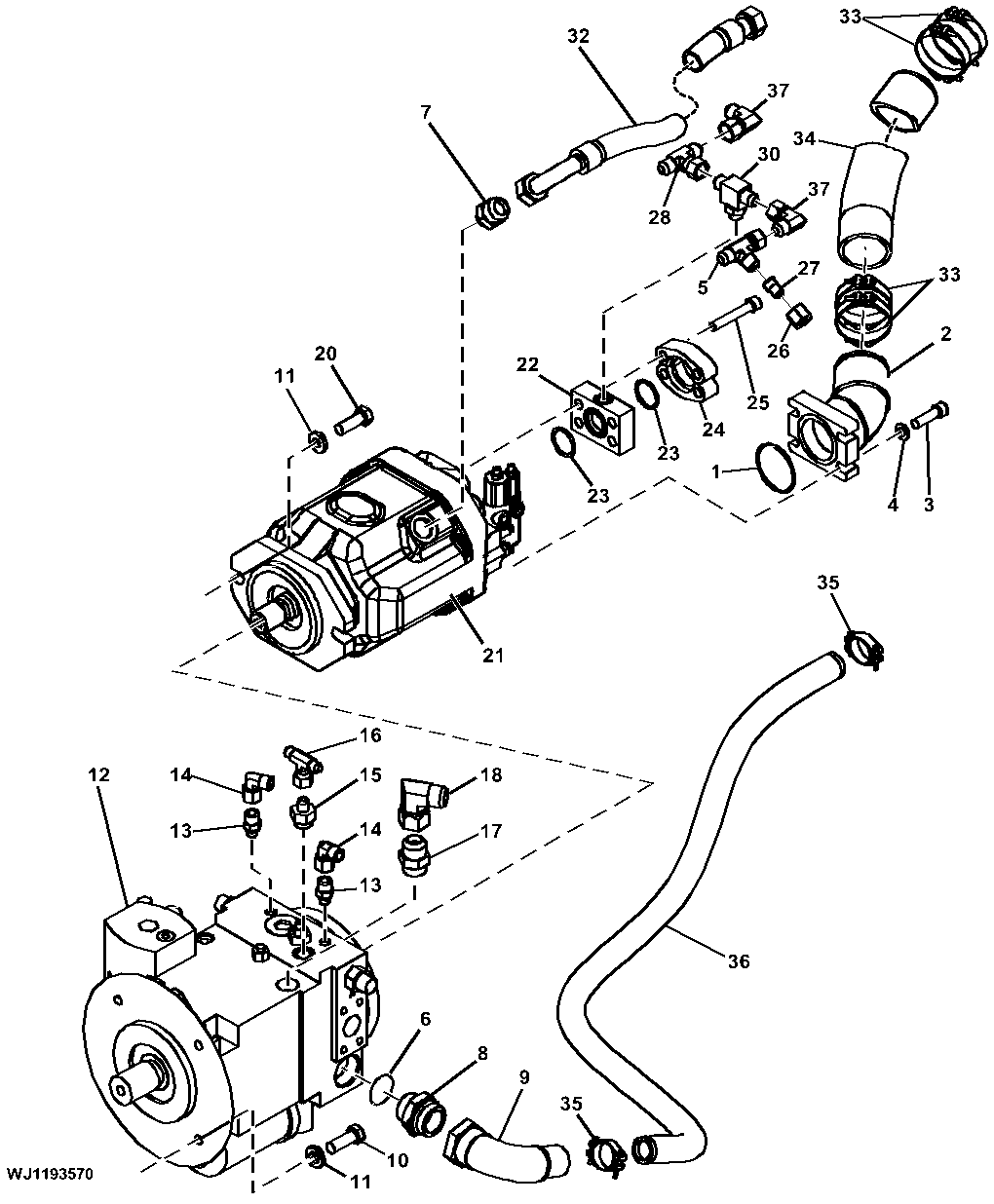

Hydraulic Drive Pump and Work Pump Mounting
