Bulldozer Blade Hydraulics (Proportional)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F038836	1	Hydraulic Hose	LGTH = 2300 mm
2	F005045	2	Elbow Fitting	-
3	F005057	2	Fitting	-
4	F005073	1	Tee Fitting	-
5	F005335	7	Tie Band	-
6	F007730	4	Hose Support	-
7	F684592	1	Fitting	SUB FOR F005089
8	F010079	1	COUPLING NUT	-
9	F022417	3	Elbow Fitting	-
10	F015494	1	Check Valve	-
11	F025424	1	Fitting	-
12	F026843	2	Fitting	-
13	F052883	2	Hydraulic Hose	LGTH = 600 mm, Fabricate
14	F072553	2	Hydraulic Hose	LGTH = 500 mm
15	F051025	2	Hose Guard	-
16	F023044	2	Hydraulic Hose	LGTH = 750 mm, Fabricate
17	F052869	4	Hose Clamp	-
18	F062777	1	Mounting Parts	-
19	F062778	1	Hydraulic Restrictor	-
20	F013741	1	Hydraulic Hose	LGTH = 1000 mm
21	F067200	4	Hydraulic Hose	LGTH = 950 mm
22	F051580	1	Hydraulic Hose	LGTH = 900 mm
23	F640407	1	Plate	-
24	F633228	1	Pipe	-
25	F633229	1	Pipe	-
26	-	1	Part 26	Components on Separate Page
27	-	1	Part 27	Components on Separate Page
28	F642124	1	Wiring Harness	-
29	F649091	1	Rubber Track Belt	-
30	F675746	1	Hydraulic Cylinder	SUB FOR F062207
31	-	1	Part 31	Components on Separate Page
32	AZ54536	1	Elec. Connector Housing	-
33	57M7619	1	Elec.Connect Locking Device	-
34	57M8164	6	Elec. Connector Terminal	-
35	F031719	2	Guard	-
36	57M7399	4	Elec. Connector Seal	-
37	F056901	2	Elec. Connector Terminal	-
38	57M9532	4	Elec. Connector Terminal	-
39	F005062	1	Fitting	-
40	F031738	1	Tee Fitting	-

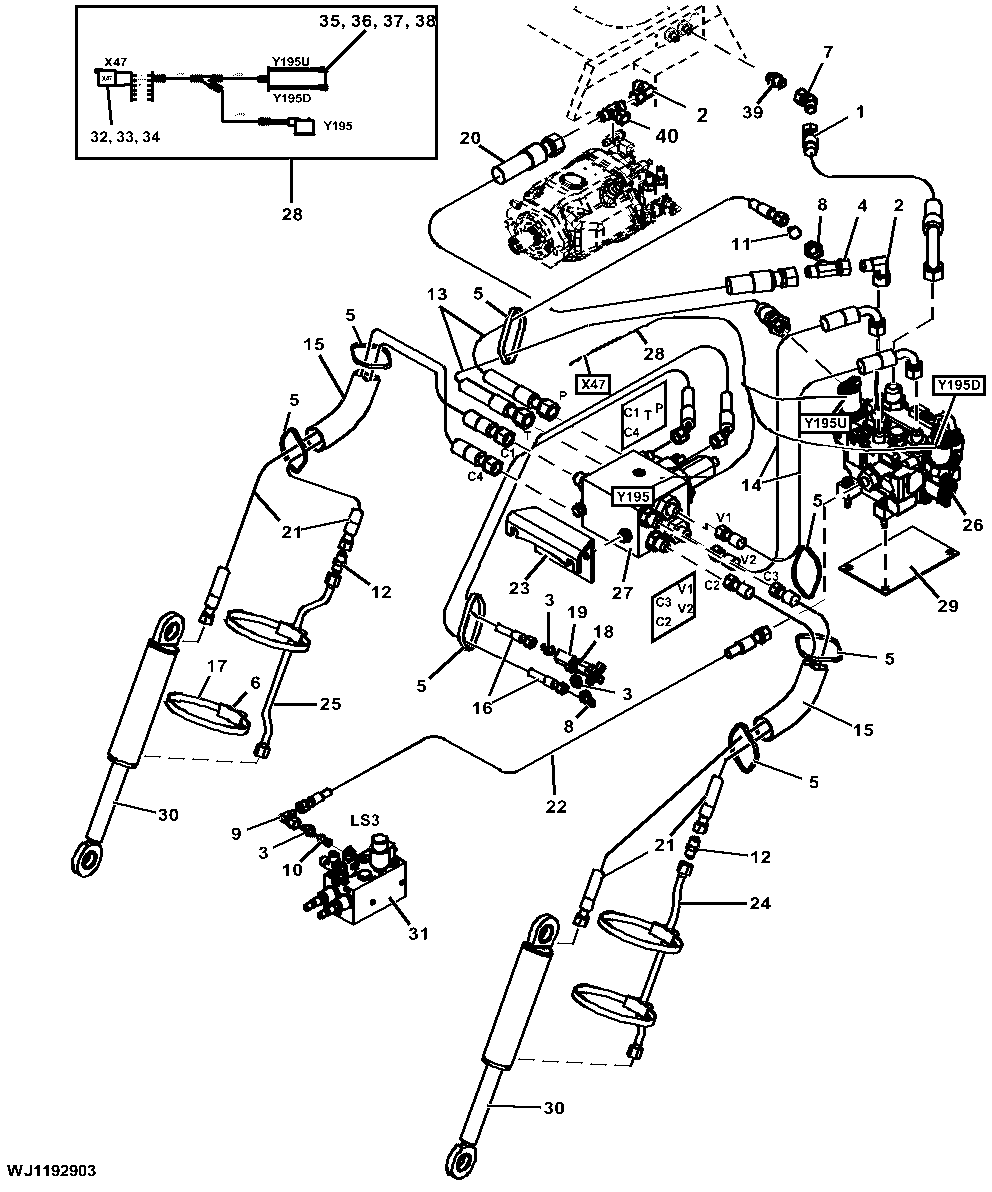

Bulldozer Blade Hydraulics (Proportional)
