Открытый узел

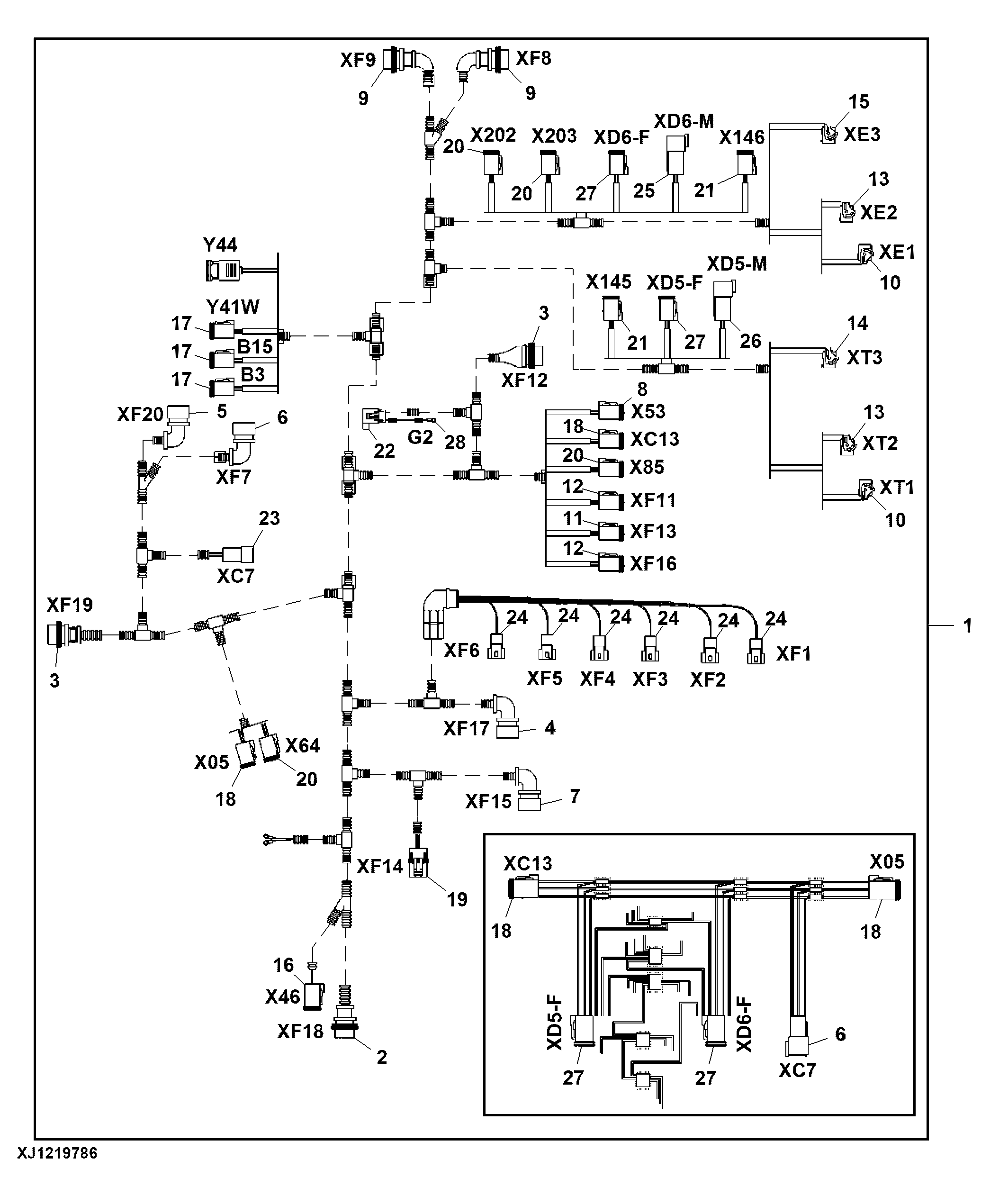

Wiring Harness and Connectors, Front Frame ( - 005276)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
14	57M8528	1	Electrical Connector Cap	-
14	57M8530	1	Elec. Connector Terminal	-
14	57M9184	1	Elec. Connector Terminal	-
14	57M8605	1	Elec. Connector Seal	-
14	57M8604	1	Elec. Connector Seal	-
14	57M8523	1	Elec. Connector Housing	-
15	57M8530	1	Elec. Connector Terminal	-
15	57M8605	1	Elec. Connector Seal	-
15	57M9184	1	Elec. Connector Terminal	-
15	57M8528	1	Electrical Connector Cap	-
15	57M8523	1	Elec. Connector Housing	-
16	F056844	1	Electrical Connector Assy	-
16	F052688	1	Lock	-
16	F052693	1	Plug	-
16	F055139	1	Socket	-
17	F056844	1	Electrical Connector Assy	-
17	F055139	1	Socket	-
17	F052688	1	Lock	-
18	F059788	2	Electrical Connector Assy	-
18	57M8133	2	Elec.Connect Locking Device	-
18	57M8261	1	Elec. Connector Terminal	-
19	F034680	1	CONNECTOR	-
19	57M7274	1	Elec. Connector Accessory	-
19	57M7299	3	Elec. Connector Terminal	-
19	R78062	3	Elec. Connector Seal	-
20	AZ54533	1	Elec. Connector Housing	-
20	F052689	1	Locking Collar	-
20	F055139	1	Socket	-
21	F059558	2	Electrical Connector Assy	-
21	F055139	1	Socket	-
21	F053704	2	Elec. Connector Cavity Plug	-
22	57M8267	1	Elec. Connector Housing	-
22	57M7579	2	Elec. Connector Terminal	-
22	57M8487	1	Electrical Connector Cap	-
22	57M7329	1	Fuse	-
23	F059789	1	Cable	-
23	57M8134	1	Elec. Connector Terminal	-
23	F059843	1	Elec. Connector Terminal	-
24	F005265	6	Electrical Connector Assy	-
24	F015352	1	Elec. Connector Terminal	-
24	F005267	1	PIN	-
25	F059843	1	Elec. Connector Terminal	-
25	57M7678	1	Elec. Connector Terminal	-
25	F052692	1	Pin Fastener	-
25	F052693	1	Plug	-
25	F045798	1	Pin	-
25	AZ54536	1	Elec. Connector Housing	-
26	AZ54536	1	Elec. Connector Housing	-
26	F045798	1	Pin	-
26	F059843	1	Elec. Connector Terminal	-
26	F052693	1	Plug	-
26	57M7678	1	Elec. Connector Terminal	-
27	AZ54533	1	Elec. Connector Housing	-
27	F052689	1	Locking Collar	-
27	F055139	1	Socket	-
27	57M8261	1	Elec. Connector Terminal	-
28	F008190	1	Elec. Connector Accessory	-

Wiring Harness and Connectors, Front Frame ( - 005276)

Нет текстового описания
