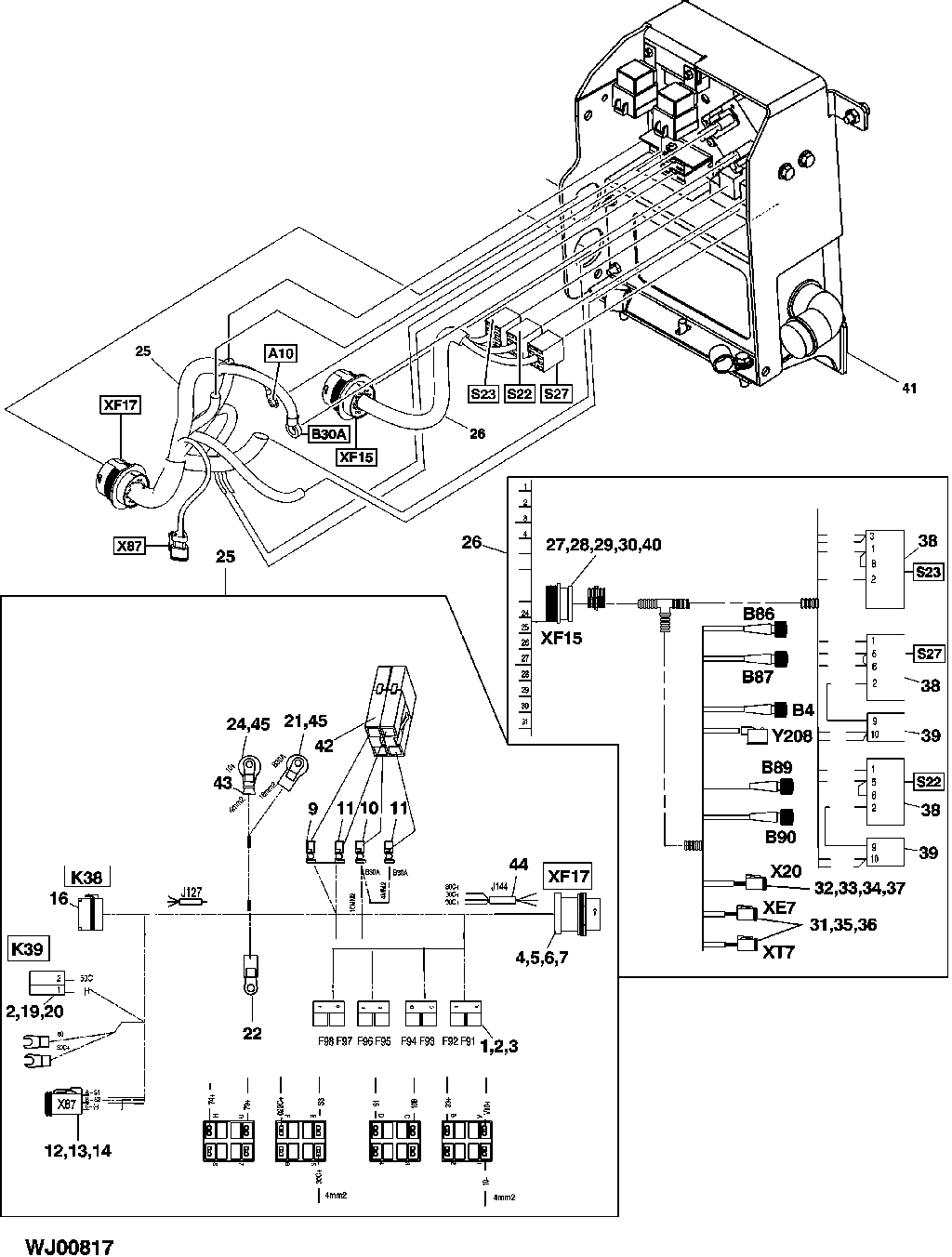

Main Switch and Fuses Wiring Harness ( - 005276)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F024410	1	Electrical Connector Assy	-
2	F008088	16	CABLE LUG	-
3	F008089	2	CABLE LUG	-
4	57M8706	1	Elec. Connector Housing	-
5	57M8035	1	Nut	-
6	F059634	1	Washer	-
7	F052692	15	Pin Fastener	-
9	57M9104	1	Elec. Connector Terminal	-
10	F041327	1	Sleeve	-
11	57M9103	2	Elec. Connector Terminal	-
12	57M7675	1	Electrical Connector Assy	-
13	57M7627	1	Electrical Connector Assy	-
14	F052691	3	Lug	-
16	R104933	2	Elec. Connector Terminal	-
18	57M7054	2	Elec. Connector Terminal	-
19	F017866	1	Electrical Connector Assy	-
20	F015962	1	DIODE	-
21	F040608	1	Elec. Connector Terminal	-
22	F043275	1	Elec. Connector Terminal	-
24	F040621	1	Elec. Connector Terminal	-
25	F649738	1	Wiring Harness	-
26	F638539	1	Wiring Harness	-
27	57M9376	1	Elec. Connector Housing	-
28	57M8035	1	Nut	-
29	F059634	1	Washer	-
30	N282069	10	Elec. Connector Terminal	-
31	F055147	7	Socket	-
32	R78069	15	Elec. Connector Cavity Plug	-
33	57M7627	1	Electrical Connector Assy	-
34	57M7675	1	Electrical Connector Assy	-
35	F043922	2	CONNECTOR	-
36	F052689	2	Locking Collar	-
37	F052691	14	Lug	-
38	F005398	3	Elec. Connector Housing	-
39	F037112	2	Socket	-
40	57M8264	11	Elec. Connector Terminal	-
41	-	1	Part 37	COMPONENTS ON SEPARATE PAGE
42	F041324	2	Fuse Holder	-
43	F005333	3	Tie Band	-
44	F047033	1	Conduit	-
45	F033387	2	Guard	-

Main Switch and Fuses Wiring Harness ( - 005276)
