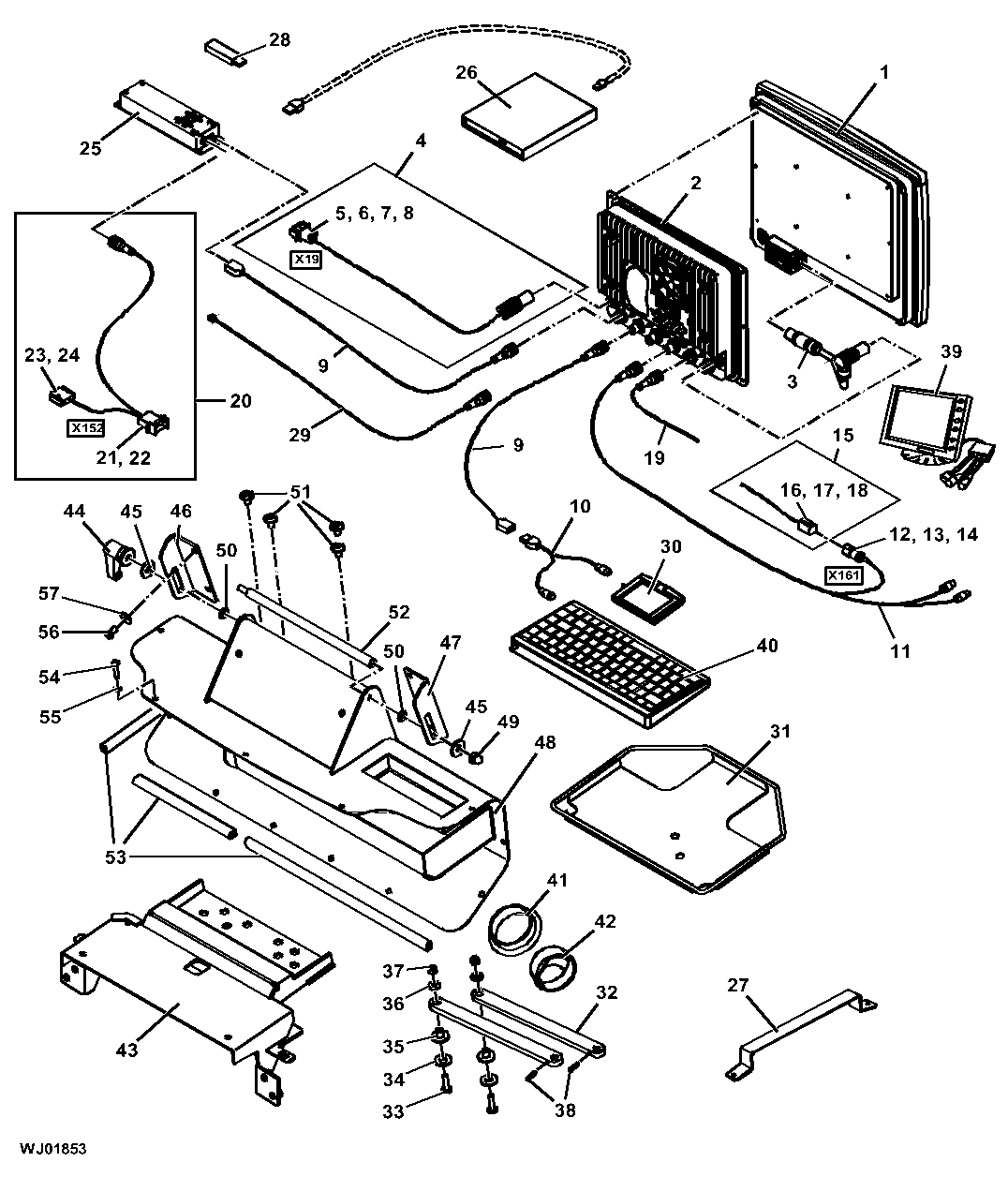

Console and Display Assembly, XL PC (005145 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F704968	1	Microcomputer	-
1	F070192	1	Monitor	NLA; ORDER F704968
2	F072999	1	Wiring Harness	Ethernet Cable
2	F660551	1	Computer Hardware Item	Touchpad Dual Core PC, SUB FOR F070191
2	F070757	1	Microcomputer	Hard Drive
2	F070831	1	Computer Hardware Item	Axial Fan
2	F072780	1	Lithium Battery	-
3	F070469	1	Wiring Harness	-
4	F660299	1	Wiring Harness	Adapter Cable
5	57M7631	1	Elec. Connector Housing	-
6	57M8164	7	Elec. Connector Terminal	-
7	57M7680	1	Elec. Connector Terminal	-
8	R78069	1	Elec. Connector Cavity Plug	-
9	F070471	2	Wiring Harness	USB Adapter Cable
10	F070760	1	Computer Hardware Item	USB to PS2 Adapter Cable
11	F649778	1	Wiring Harness	Camera Adapter Cable Ethernet Cable, INCLUDES 57M7628, 57M7619 AND (4) R78066
12	57M7625	1	Electrical Connector Assy	-
13	57M7619	1	Elec.Connect Locking Device	-
14	R78066	4	Elec. Connector Terminal	-
15	F673122	1	Wiring Harness	Cabin Main Harness, SUB FOR F664700; COMPONENTS ON SEPARATE PAGE
16	F053703	1	Elec. Connector Housing	-
17	57M7618	1	Electrical Connector Assy	-
18	57M8165	4	Elec. Connector Terminal	-
19	F647465	1	Wiring Harness	PC CAN Cable
20	F642930	1	Wiring Harness	USB Hub Cable
21	F005264	1	Elec. Connector Housing	-
22	L36670	3	Elec. Connector Terminal	-
23	L36685	3	Elec. Connector Terminal	-
24	F005263	1	Electrical Connector Assy	-
25	F070873	1	Computer Hardware Item	USB Hub, 4 Port, W/ Integrated Power Supply
26	F072310	1	Computer Hardware Item	DVD-RW Writer, NLA
27	L200224	1	Bracket	-
28	F688498	1	Computer Hardware Item	USB Memory Stick, SUB FOR F070756
29	F074827	1	Wiring Harness	Option Ethernet Cable
30	F628502	1	Computer Hardware Item	Touchpad
31	AL181074	1	Bracket	-
32	L175775	2	Arm	-
33	19M8875	2	Screw	M6 X 25
34	H110232	2	Washer	-
35	L175767	2	Bushing	-
36	L61335	2	Washer	-
37	14M7528	2	Lock Nut	M6
38	34M7087	2	Spring Pin	4 X 18 mm
39	F071755	1	Monitor	Reverse Monitor Kit, W/O Cameras See Service Solution 89875
39	F071756	1	Monitor Console	-
39	F071757	1	Control	NLA
39	F071758	1	Wiring Harness	-
39	F071937	1	Computer Accessory	-
40	F066414	1	Computer Accessory	See Solution 118398 Keyboard, Belgium, NLA
40	F066415	1	Computer Accessory	See Solution 118398 Keyboard, Czech, NLA
40	F065298	1	Computer Hardware Item	See Solution 118398 Keyboard, Danish, NLA
40	F065297	1	Computer Hardware Item	Keyboard, Spanish
40	F065296	1	Computer Hardware Item	Keyboard, Portugese
40	F065295	1	Computer Accessory	See Solution 118398 Keyboard, English, U.S.A, NLA
40	F065292	1	Computer Accessory	Keyboard, French
40	F065291	1	Computer Hardware Item	Keyboard, German
40	F065290	1	Computer Hardware Item	Keyboard, Russian
40	F064443	1	Computer Accessory	Keyboard, English, Poland
40	F064442	1	Computer Hardware Item	See Solution 118398 Keyboard, Finnish/Swedish, NLA
40	F065294	1	Computer Hardware Item	Keyboard, Norwegian
41	R235199	2	Louver	-
42	RE235200	2	Louver	-
43	AL200349	1	Control Support	-
44	AL176451	1	Handle	-
45	L172553	4	Washer	-
46	L200248	1	Bracket	-
47	L200246	1	Bracket	-
48	AL200338	1	Cowl	-
49	14M7226	1	Nut	M8
50	12M7032	2	Lock Washer	8.400 mm
51	19M8971	4	Screw	M8 X 12
52	L176038	1	Tube	-
53	L62810	3	Weatherstrip	-
54	L173699	13	Screw	-
55	L173700	13	Washer	-
56	19M6614	6	Cap Screw	M6 X 12
57	24M7139	6	Washer	6.400 X 18 X 1.600 mm
