Открытый узел

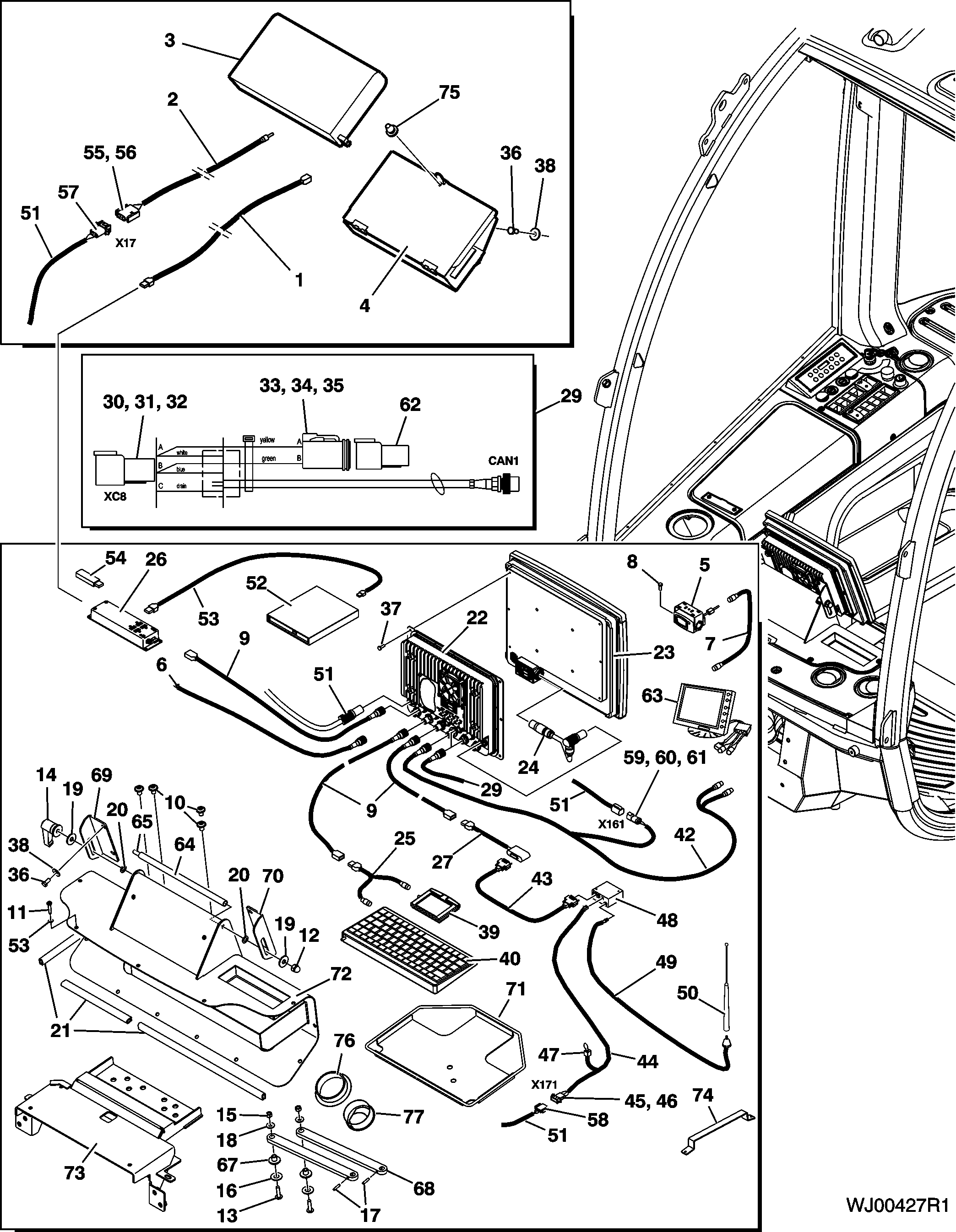

Console and Display Assembly, XL PC ( - 005144)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F070597	1	Wiring Harness	Printer Cable
2	F640177	1	Wiring Harness	Printer Power Cable
3	F073088	1	Computer Hardware Item	Printer
4	AL203071	1	Bracket	-
5	F064855	1	Television Camera	Rear Camera, COMPONENTS ON SEPARATE PAGE
6	F074827	1	Wiring Harness	LGTH = 0.4 m, Ethernet Cable
7	F644124	1	Wiring Harness	-
8	19M7640	2	Cap Screw	M5 X 12
9	F070472	3	Wiring Harness	LGTH = 1.5 m, Adapter Cable
10	19M8971	4	Screw	M8 X 12
11	L173699	13	Screw	-
12	14M7226	1	Nut	M8
13	19M8875	2	Screw	M6 X 25
14	AL176451	1	Handle	-
15	14M7528	2	Lock Nut	M6
16	H110232	2	Washer	-
17	34M7087	2	Spring Pin	4 X 18 mm
18	L61335	2	Washer	-
19	L172553	4	Washer	-
20	12M7032	2	Lock Washer	8.400 mm
21	L62810	3	Weatherstrip	-
22	F070757	1	Microcomputer	Hard Disk
22	F070831	1	Computer Hardware Item	Axial Fan
22	F072999	1	Wiring Harness	LGTH = 5 m, Ethernet Cable
22	F660551	1	Computer Hardware Item	See Service Solution 89875, SUB FOR F070191 Dual Core PC
22	F072780	1	Lithium Battery	Keeping PC Clock in Time
23	F070192	1	Monitor	NLA; ORDER F704968
23	F704968	1	Microcomputer	-
24	F070469	1	Wiring Harness	Display Cable
25	F070760	1	Computer Hardware Item	USB to PS2 Adapter Cable
26	F071050	1	Computer Hardware Item	USB Hub, 4 Port, W/ Integrated Power Supply, NLA; ORDER F070873
26	F070873	1	Computer Hardware Item	SUB FOR F071050
26	F642930	1	Wiring Harness	USB Hub Power Cable
27	F070871	1	Computer Hardware Item	USB to RS-232 Serial DB9 Adapter
29	F647465	1	Wiring Harness	CAN 1
30	57M7626	1	Elec. Connector Terminal	-
31	57M8538	3	Elec. Connector Terminal	-
32	57M7676	1	Elec. Connector Terminal	-
33	57M7627	1	Electrical Connector Assy	-
34	57M8133	1	Elec.Connect Locking Device	-
35	57M8537	3	Elec. Connector Terminal	-
36	19M6614	6	Cap Screw	M6 X 12
37	21M7250	6	Screw	M4 X 12
38	24M7139	6	Washer	6.400 X 18 X 1.600 mm
39	F628502	1	Computer Hardware Item	Touchpad
40	F066415	1	Computer Accessory	See Solution 118398 Keyboard, Czech, NLA
40	F066414	1	Computer Accessory	See Solution 118398 Keyboard, Belgium, NLA
40	F065298	1	Computer Hardware Item	See Solution 118398 Keyboard, Danish, NLA
40	F065297	1	Computer Hardware Item	Keyboard, Spanish
40	F065292	1	Computer Accessory	Keyboard, French
40	F065296	1	Computer Hardware Item	Keyboard, Portugese
40	F065294	1	Computer Hardware Item	Keyboard, Norwegian
40	F065295	1	Computer Accessory	See Solution 118398 Keyboard, English, U.S.A, NLA
40	F064442	1	Computer Hardware Item	See Solution 118398 Keyboard, Finnish/Swedish, NLA
40	F064443	1	Computer Accessory	Keyboard, English, Poland
40	F065291	1	Computer Hardware Item	Keyboard, German
40	F065290	1	Computer Hardware Item	Keyboard, Russian
42	F649778	1	Wiring Harness	Camera Adapter Cable, INCLUDES 57M7628, 57M7619 AND (4) R78066
43	F644456	1	Wiring Harness	GPRS Modem Serial RS-232 Cable
44	F644454	1	Wiring Harness	GPRS Modem Power Cable, INCLUDES F005264, F063376 AND (2) F005267
45	F005264	1	Elec. Connector Housing	-
46	F005267	2	PIN	-
47	F063376	1	Switch	-
48	F644105	1	Mobile Communication Equip	GPRS Modem
49	F651081	1	Wiring Harness	Antenna Cable, GPRS Modem
50	F072663	1	Antenna	GPRS Antenna, NLA
51	F652885	1	Wiring Harness	Cabin Main Harness, INCLUDES F011415 AND F005263
52	F072310	1	Computer Hardware Item	DVD-RW Writer, NLA
53	-	1	Part 69	USB Cable, DVD
54	F688498	1	Computer Hardware Item	UBS Memory Stick, SUB FOR F070756
55	F011332	1	Electrical Connector Assy	-
56	F015352	2	Elec. Connector Terminal	-
57	F011415	1	Electrical Connector Assy	-
58	F005263	1	Electrical Connector Assy	-
59	57M7628	1	Electrical Connector Assy	-
60	57M7619	1	Elec.Connect Locking Device	-
61	57M8164	3	Elec. Connector Terminal	-
62	F663399	1	Resistor	SUB FOR F649824
63	-	1	Part 79	Reverse Monitor Kit, W/O Cameras
63	F071755	1	Monitor	-
63	F071756	1	Monitor Console	-
63	F071757	1	Control	NLA
63	F071758	1	Wiring Harness	-
63	F071937	1	Computer Accessory	-
64	L176038	1	Tube	-
65	L200249	1	Axle	-
66	L173700	13	Washer	-
67	L175767	2	Bushing	-
68	L175775	2	Arm	-
69	L200248	1	Bracket	-
70	L200246	1	Bracket	-
71	AL181074	1	Bracket	-
72	AL202997	1	Cowl	-
73	AL200349	1	Control Support	-
74	L200224	1	Bracket	-
75	L150079	1	Bumper	-
76	R235199	2	Louver	-
77	RE235200	2	Louver	-

Console and Display Assembly, XL PC ( - 005144)

Нет текстового описания
