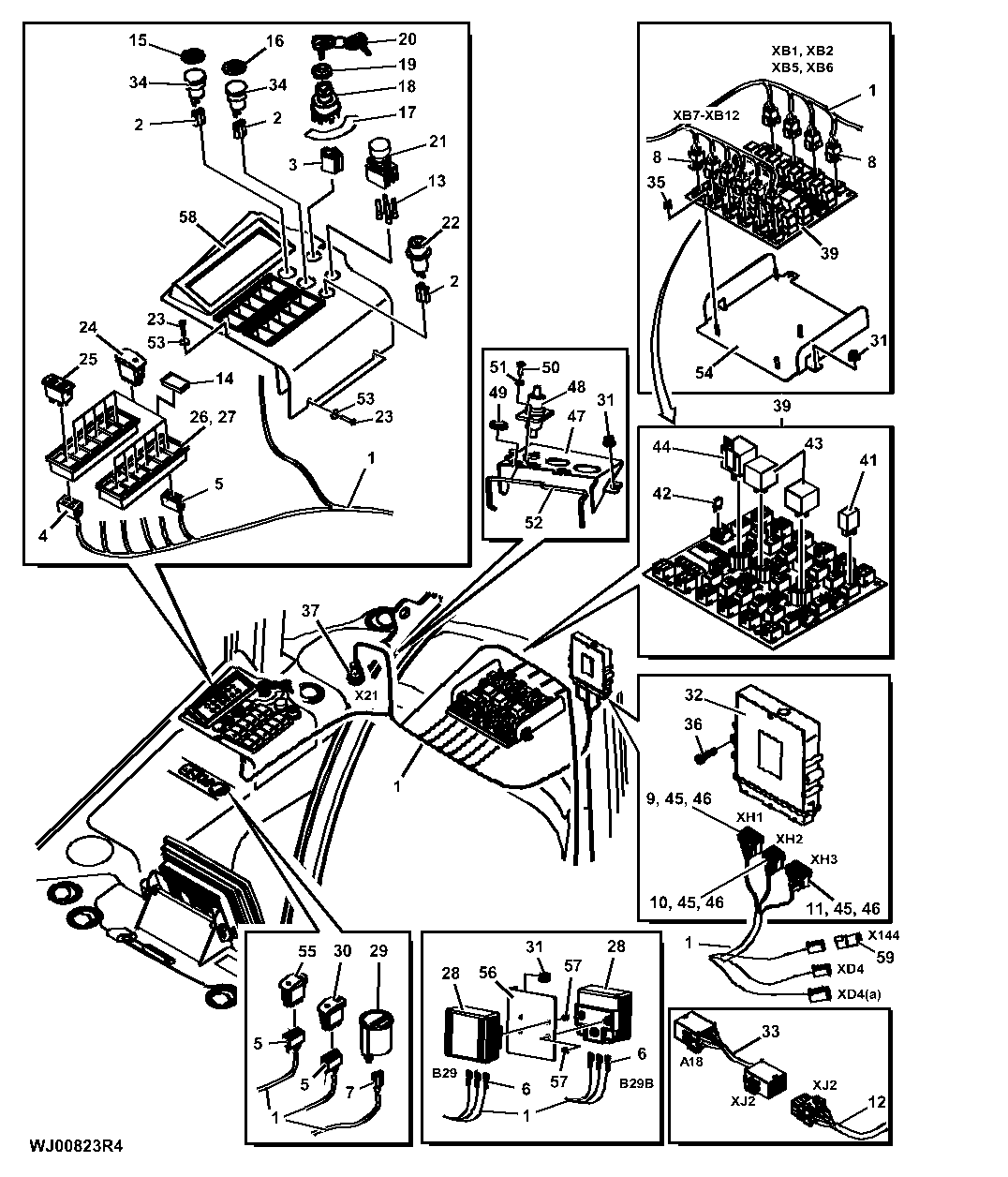

Cab Wiring Harness and Components ( - 5144)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F652885	1	Wiring Harness	(Cab Wiring Harness) INCLUDES (39) 57M8530, (19) 57M8531, (12) T210282, (10) F005265, (6) 57M7045, (3) 57M8604, (3) 57M8605, (3) F017866, (2) 57M8528, 57M8522, 57M8523, 57M8527, 57M8529, 57M9376, 57M9458, L38138 AND Z40757
2	F017866	3	Electrical Connector Assy	-
3	L38138	1	Elec. Connector Housing	-
4	57M9458	1	Elec. Connector Housing	-
5	T210282	12	Elec. Connector Housing	-
6	57M7045	6	Elec. Connector Terminal	-
7	Z40757	1	Elec. Connector Accessory	-
8	F005265	10	Electrical Connector Assy	-
9	57M8528	1	Electrical Connector Cap	-
9	57M8604	1	Elec. Connector Seal	-
9	57M8605	1	Elec. Connector Seal	-
9	57M8522	1	Elec. Connector Housing	-
10	57M8527	1	Elec. Connector Housing	-
10	57M8529	1	Electrical Connector Cap	-
10	57M8605	1	Elec. Connector Seal	-
10	57M8604	1	Elec. Connector Seal	-
11	57M8605	1	Elec. Connector Seal	-
11	57M8604	1	Elec. Connector Seal	-
11	57M8528	1	Electrical Connector Cap	-
11	57M8523	1	Elec. Connector Housing	-
12	-	1	Part 21	-
13	-	4	Part 22	-
14	F649113	1	Plug	-
15	L200086	1	Label	12 V
16	L200087	1	Label	24 V
17	L200085	1	Label	-
18	AH202513	1	Rotary Switch	-
19	R115974	1	Nut	-
20	AT195302	1	Key	-
21	F648673	1	Push Button	-
22	F014869	1	Electrical Lighter	-
23	L173742	4	Screw	-
24	F649213	1	Switch	(Engine Pre-Heater)
24	F654425	1	Switch	(Personal Computer)
24	F643024	1	Switch	(Dome Light)
24	F654426	1	Switch	(Traffic Mode)
24	F643028	1	Switch	(Central Lubrication)
24	F643022	1	Switch	(Electric Stairs)
24	F643023	1	Switch	(Hydraulic Stairs)
24	F643025	1	Switch	(Parking Brake)
24	F643029	1	Switch	(Approach Light)
25	F643032	1	Indicator	(Indicator Light, Glow / Vacuum Pump)
26	F124358	4	Panel	(End Panel)
27	F124359	6	Panel	(Middle Panel)
28	F059065	2	Converter	-
29	F038267	1	Hour Meter	-
30	F643026	1	Switch	(Battery)
31	14M7396	6	Lock Nut	M8
32	F065193	1	Electronic Control Unit	-
33	F672480	1	Electrical Equipment	SUB FOR F642659; COMPONENTS ON SEPARATE PAGE
34	F124371	2	Socket Outlet	-
35	L40924	5	Nut	-
36	19M7378	2	Cap Screw	M8 X 45
37	57M9376	1	Elec. Connector Housing	-
39	F658399	1	Circuit Board	-
41	F067148	17	Relay	-
42	57M7688	5	Fuse	5 A
42	57M7690	8	Fuse	15 A
42	57M8638	6	Fuse	7.5 A
42	57M7689	8	Fuse	10 A
43	F050016	2	RELAY	-
44	F005313	1	Audible Warning Alarm	-
45	57M8530	39	Elec. Connector Terminal	-
46	57M8531	19	Elec. Connector Terminal	-
47	AL180604	1	Bracket	-
48	F643043	1	Bolt	-
49	H131300	3	Grommet	-
50	L174673	2	Screw	-
51	14M7255	2	Nut	M6
52	L152250	1	Weatherstrip	-
53	L173700	4	Washer	-
54	AL200498	1	Case	-
55	F649214	1	Switch	-
56	L200188	1	Bracket	-
57	14M7265	4	Lock Nut	M5
58	AL202588	1	Panel	SUB FOR AL200065
59	F647554	1	Resistor	-

Cab Wiring Harness and Components ( - 5144)
