Cab Wiring Harness and Components (005145 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F673122	1	Wiring Harness	(Cabin Main Harness) Components On Separate Page, INCLUDES (39) 57M8530, (19) 57M8531, (11) T210282, (10) F005265, (3) 57M8604, (3) 57M8605, (3) F017866, (2) 57M8528, 57M8522, 57M8523, 57M8527, 57M8529, 57M9376, 57M9458 AND L38138; SUB FOR F664700
2	F017866	3	Electrical Connector Assy	-
3	L38138	1	Elec. Connector Housing	-
4	57M9458	1	Elec. Connector Housing	-
5	T210282	12	Elec. Connector Housing	-
6	57M7045	6	Elec. Connector Terminal	-
7	Z40757	1	Elec. Connector Accessory	-
8	F005265	10	Electrical Connector Assy	-
9	57M8528	1	Electrical Connector Cap	-
9	57M8604	1	Elec. Connector Seal	-
9	57M8605	1	Elec. Connector Seal	-
9	57M8522	1	Elec. Connector Housing	-
10	57M8527	1	Elec. Connector Housing	-
10	57M8529	1	Electrical Connector Cap	-
10	57M8605	1	Elec. Connector Seal	-
10	57M8604	1	Elec. Connector Seal	-
11	57M8605	1	Elec. Connector Seal	-
11	57M8604	1	Elec. Connector Seal	-
11	57M8528	1	Electrical Connector Cap	-
11	57M8523	1	Elec. Connector Housing	-
12	AL209382	1	Panel	SUB FOR AL200065
14	F649113	1	Plug	-
15	L200086	1	Label	12 V
16	L200087	1	Label	24 V
17	L200085	1	Label	-
18	AH202513	1	Rotary Switch	-
19	R115974	1	Nut	-
20	AT195302	1	Key	-
21	F648673	1	Push Button	-
22	F014869	1	Electrical Lighter	-
23	L173742	4	Screw	-
24	F658441	1	Switch	(After Treatment Device (ATD))
24	F649213	1	Switch	(Engine Pre-Heater)
24	F654425	1	Switch	(Personal Computer)
24	F643024	1	Switch	(Dome Light)
24	F654426	1	Switch	(Traffic Mode)
24	F643028	1	Switch	(Central Lubrication)
24	F643022	1	Switch	(Electric Stairs)
24	F643023	1	Switch	(Hydraulic Stairs)
24	F643025	1	Switch	(Parking Brake)
24	F643029	1	Switch	(Approach Light)
25	F643032	1	Indicator	(Indicator Light, Glow / Vacuum Pump)
26	F124358	4	Panel	(End Panel)
27	F124359	6	Panel	(Middle Panel)
28	F647554	1	Resistor	-
31	14M7396	2	Lock Nut	M8
32	F065193	1	Electronic Control Unit	-
32	F672517	1	Electronic Control Unit	(See solution 95356)
34	F124371	2	Socket Outlet	-
35	L40924	5	Nut	-
36	19M7378	2	Cap Screw	M8 X 45
37	57M8164	3	Elec. Connector Terminal	-
37	N282069	25	Elec. Connector Terminal	-
37	57M9525	1	Elec. Connector Terminal	-
37	57M7765	1	Lock Washer	-
37	R78069	2	Elec. Connector Cavity Plug	-
37	57M7752	1	Elec. Connector Housing	-
37	57M8035	1	Nut	-
39	F658399	1	Circuit Board	-
41	F067148	17	Relay	-
42	57M7688	5	Fuse	5 A
42	57M8638	6	Fuse	7.5 A
42	57M7689	8	Fuse	10 A
42	57M7690	8	Fuse	15 A
43	F050016	2	RELAY	-
44	F005313	1	Audible Warning Alarm	-
45	57M8530	39	Elec. Connector Terminal	-
46	57M8531	19	Elec. Connector Terminal	-
47	AL209487	1	Bracket	-
48	F643043	1	Bolt	-
49	H131300	3	Grommet	-
50	L174673	2	Screw	-
51	14M7255	2	Nut	M6
52	L152250	1	Weatherstrip	-
53	L173700	4	Washer	-
54	AL200498	1	Case	-

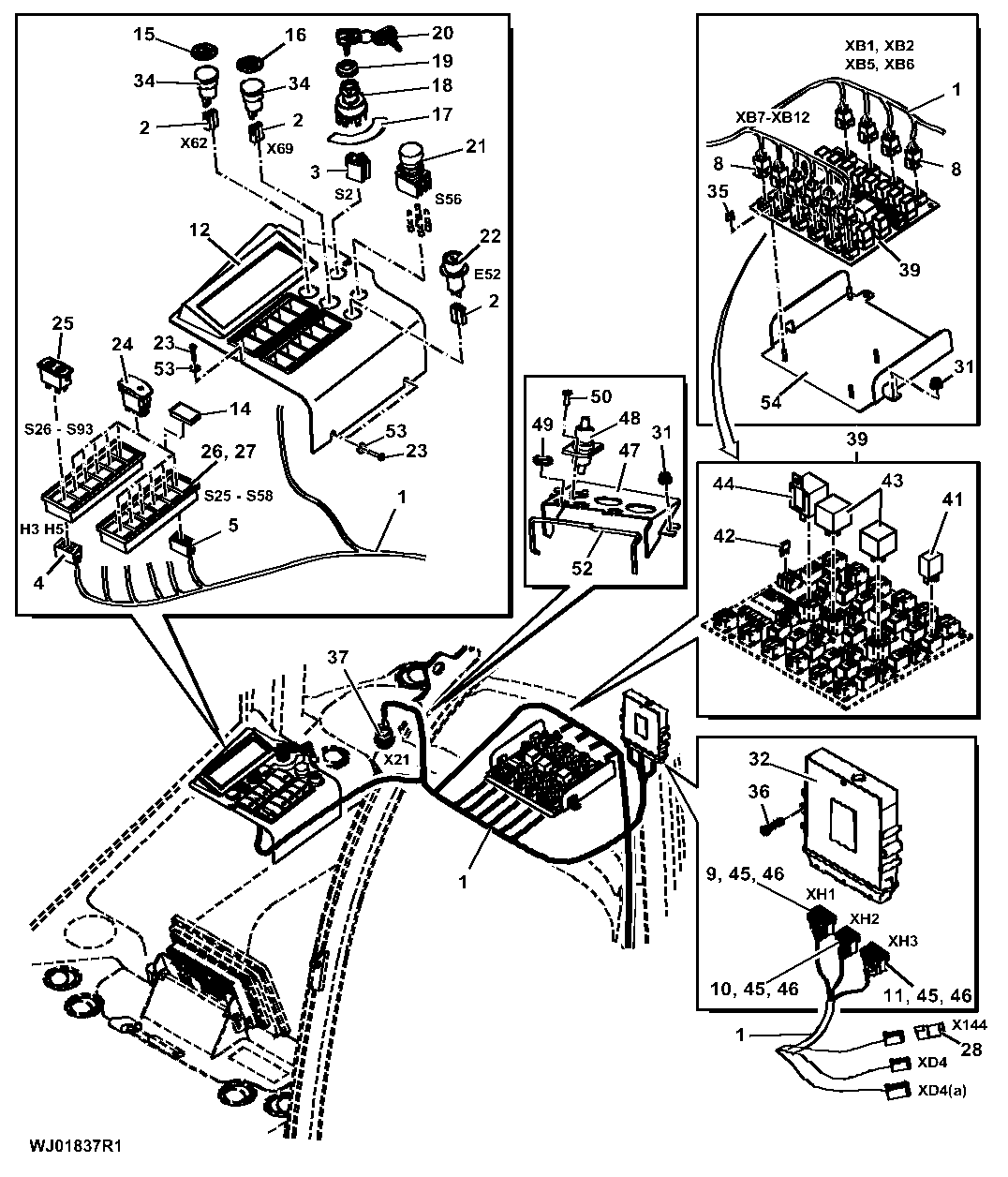

Cab Wiring Harness and Components (005145 - )
