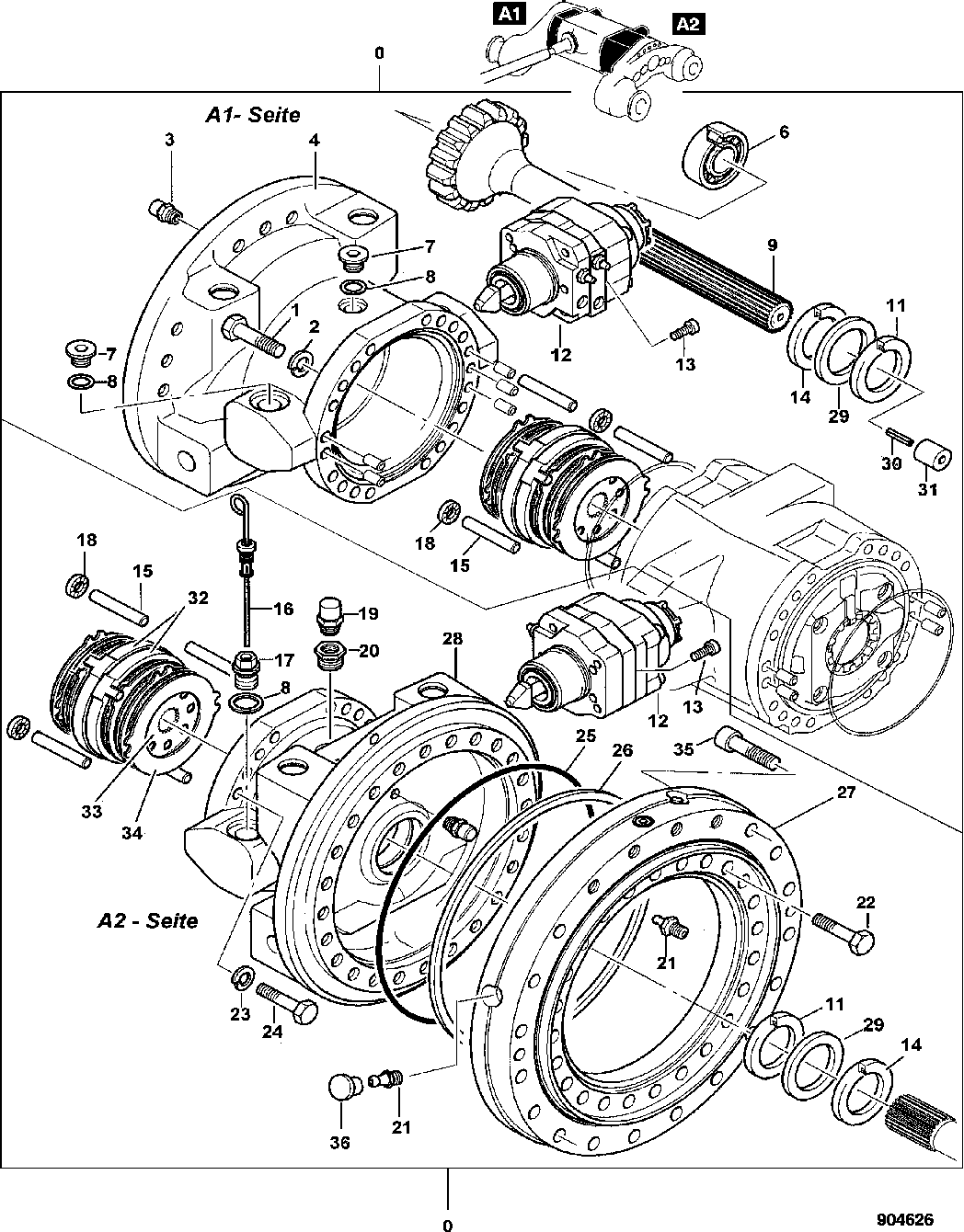

PLANETARY GEARING AND DISK BRAKE COMPONENTS, LOK 128, LOK 138 [01C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 2	LOK 138 A1-SIDE
0	-	1	Part 1	LOK 128 A1-SIDE
0	-	1	Part 4	LOK 138 A2-SIDE
0	-	1	Part 3	LOK 128 A2-SIDE
1	F025323	16	SCREW	-
2	F025333	16	Washer	-
3	F009489	2	Breather	-
4	F060803	1	HOUSING	-
6	F058121	2	Cylindrical Roller Bearing	-
7	F025332	2	Plug	-
8	F018108	3	Washer	-
9	F065417	2	Shaft	LOK 138
9	F058120	2	SHAFT	LOK 128
11	F035853	2	Seal	-
12	-	2	Part 15	SEE PAGE 0252-2,6-8
13	F038340	6	Self-Locking Screw	-
14	F059546	2	Seal	-
15	F025329	8	Pin	-
16	F045037	1	Dipstick	-
17	F045036	1	Fitting	-
18	F025330	4	Lock Washer	-
19	F025304	1	Breather	-
20	F040529	1	Fitting	-
21	58M5574	14	Lubrication Fitting	-
22	F038341	48	SCREW	LOK 128
22	F434620	48	Screw	LOK 138
23	F025333	16	Washer	-
24	F035803	16	SCREW	LOK 128
24	F064485	16	Screw	LOK 138
25	F035856	2	O-Ring	-
26	F060868	2	SEAL	-
27	F065418	2	Swing Bearing	LOK 138
27	F064121	2	SWING BEARING	LOK 128
28	F060804	1	HOUSING	-
29	F059545	2	Washer	-
30	34M7070	1	Spring Pin	10 X 45 MM (0.394" X 1.772")
31	F058119	14	STUD	USED IN LOK 138 TO NO. -82
31	F066373	14	STUD	USED IN LOK 138 FROM NO. 83-
32	F060152	2	Disk Brake Caliper Assy	-
33	F056912	12	Brake Disk	-
34	F045019	12	DISTANCE PLATE	-
35	F025167	32	SCREW	-
36	F047352	14	Plug	-

PLANETARY GEARING AND DISK BRAKE COMPONENTS, LOK 128, LOK 138 [01C09]
