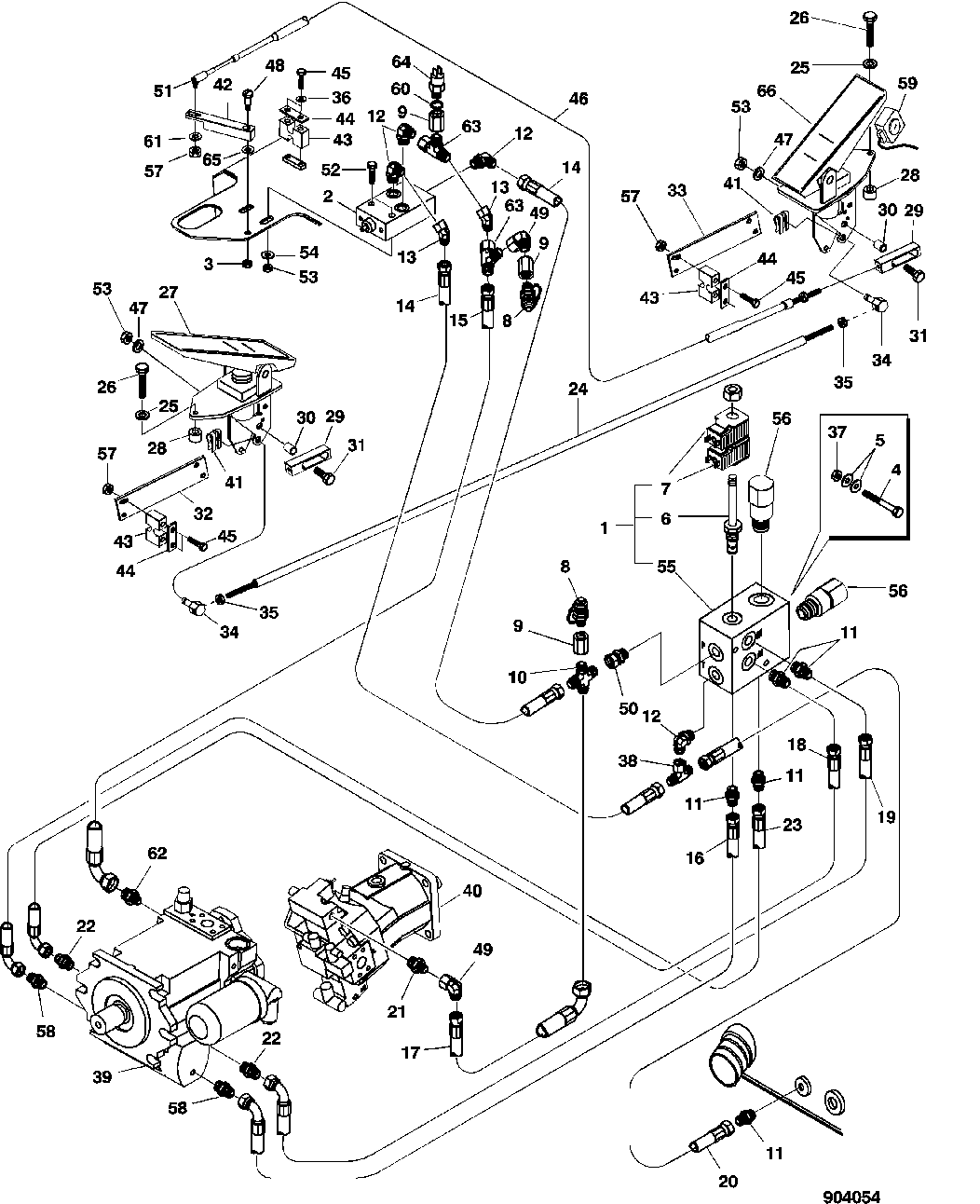

HYDROSTATIC DRIVE PEDAL, HOSES, FITTINGS, AND COMPONENTS [02H09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F069295	1	VALVE STACK	IN MACHINES UP TO 3841,3843-3850 ALSO ORDER F052686 X2, F052688 X2, F055139 X4
1	F067344	1	VALVE STACK	INCL ITEMS 6,7,55,56 (REPLACES F059282)
2	F062310	1	HYDR./PILOT CONTROL VALVE	-
3	14M7601	1	Flange Nut	M8
4	19M9623	2	Cap Screw	M6 X 70
5	24M7506	4	Washer	6.400 X 12 X 1.600 MM
6	F060198	1	Solenoid Valve	-
6	F060201	1	Seal Kit	-
7	F060200	2	Solenoid Valve Coil	-
8	F023426	2	Fitting	-
9	F024364	3	Fitting	-
10	F024366	1	Fitting	-
11	F005057	5	Fitting	-
12	F024599	4	Elbow Fitting	-
13	F013594	2	Elbow Fitting	-
14	F024321	2	Hydraulic Hose	L= 650
15	F045448	1	Hydraulic Hose	L= 550 (REPLACES F027311)
16	F024307	1	Hydraulic Hose	L= 800
17	F024309	1	Hydraulic Hose	L= 900
18	F044884	1	Hydraulic Hose	L= 900 (REPLACES F039954)
19	F046745	1	Hydraulic Hose	L= 700 (REPLACES F024306)
20	F046341	1	Hydraulic Hose	L= 1400
21	F022423	1	Fitting	-
22	F024362	2	NIPPLE	-
23	F051566	1	HOSE-ASSY	L= 650 (REPLACES F043537)
24	F612778	1	CABLE	-
25	F003345	6	Spring Washer	-
26	19M9678	6	Cap Screw	M6 X 30
27	F004627	1	PEDAL	FRONT
28	F053445	6	SLEEVE	-
29	F612799	2	ROD	-
30	F612801	2	BUSHING	-
31	19M9685	2	Cap Screw	M8 X 35
32	F613161	1	PLATE	-
33	F613748	1	PLATE	-
34	F031845	2	HOLDER	-
35	14M7622	2	Nut	M6
36	F042804	2	LOCK WASHER	-
37	14M7625	2	Lock Nut	M6
38	F005076	1	Tee Fitting	-
39	-	1	Part 41	SEE PAGE 2161-4
40	-	1	Part 42	SEE PAGE 2167-2
41	F031824	2	LOCKING PLATE	-
42	F613762	1	LEVER	-
43	F031840	3	HOLDER	-
44	F031841	3	FLAT PIECE	-
45	19M9671	6	Cap Screw	M5 X 35
46	F058782	1	CABLE	-
47	24M7509	2	Washer	8.400 X 16 X 1.600 MM
48	53M7021	1	SCREW	M8 X 33.250
49	F022417	2	Elbow Fitting	-
50	F024875	1	CONNECTION	-
51	F034828	1	BALL JOINT	-
52	19M9628	2	Cap Screw	M8 X 45
53	F003587	4	LOCK NUT	-
54	24M7508	2	Washer	8.400 X 24 X 2 MM
55	F060203	1	VALVE STACK	-
56	F067346	1	PRESSURE SWITCH	(REPLACES F060199)
56	F069970	1	Pressure Switch	IN MACHINES UP TO 3841,3843-3850 ALSO ORDER F052686 X1, F052688 X1, F055139 X2
56	F060202	2	SEAL KIT	-
57	F003585	5	LOCK NUT	-
58	F055404	2	Fitting	-
59	F064332	1	POTENTIOMETER	-
60	F005164	1	SEAL RING	-
61	24M7502	1	Washer	5.300 X 10 X 1 MM
62	F058290	1	Fitting	-
63	F023535	2	Tee Fitting	-
64	F623561	1	Pressure Switch	-
65	24M7477	1	Washer	10.500 X 25 X 4 MM
66	F070761	1	PEDAL	INCL. ITEM 59, REAR
