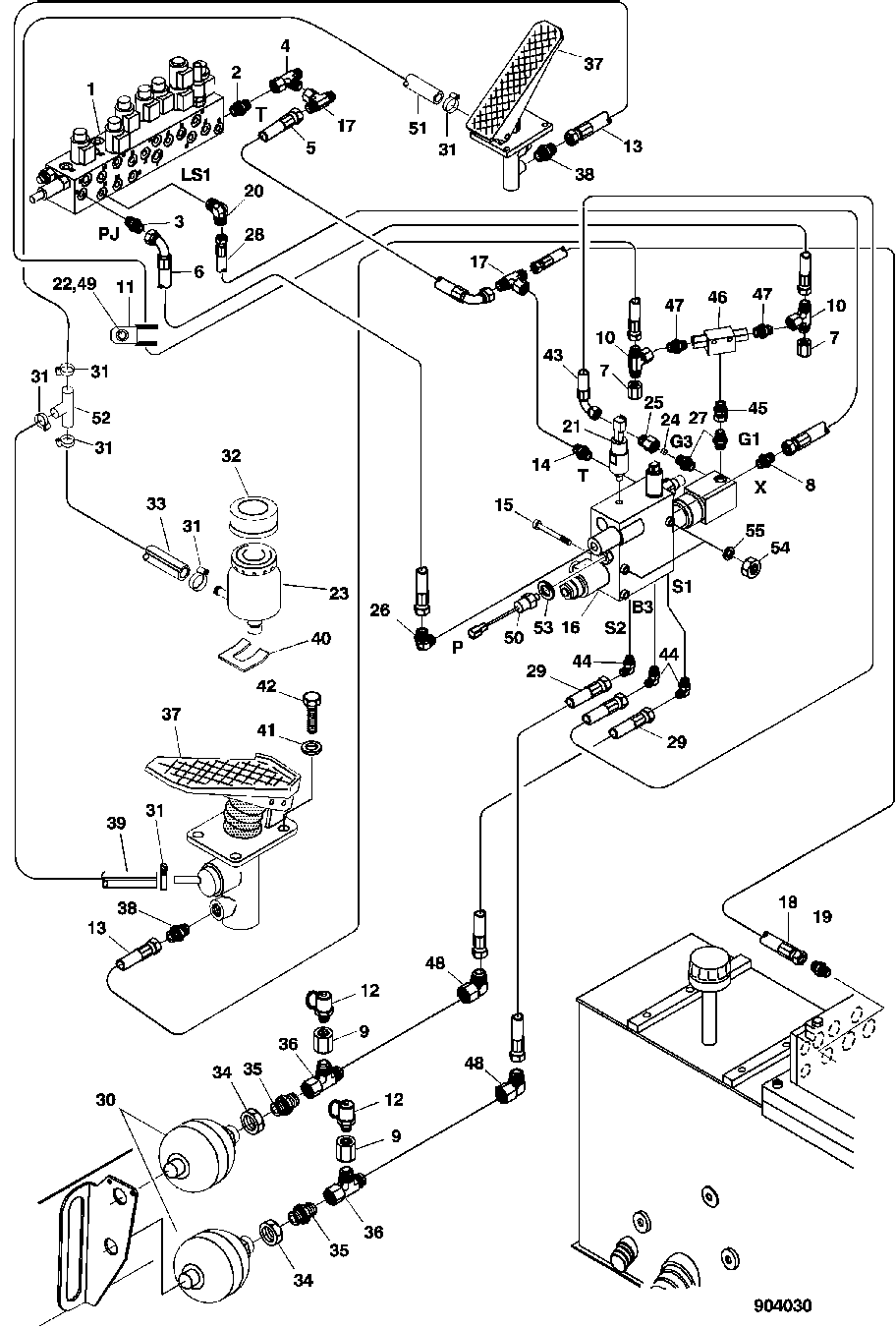

BRAKE HYDRAULIC HOSES, FITTINGS, AND COMPONENTS [01K04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	SEE PAGE 2162-2-3A
2	F005060	1	Fitting	-
3	F005057	1	Fitting	-
4	F005073	1	Tee Fitting	-
5	F057806	1	Hydraulic Hose	L= 400 (REPLACES F023040)
6	F044885	1	Hydraulic Hose	L= 400 (REPLACES F027302)
7	F031061	2	NUT	-
8	F005101	1	Fitting	-
9	F024364	2	Fitting	-
10	F005075	2	T-CONNECTION	-
11	F072111	5	Hose Support	-
12	F023426	2	Fitting	-
13	F063313	2	BRAKE LINE	L= 2000 (REPLACES F063312)
14	F013550	1	Fitting	-
15	19M8431	2	Screw	M8 X 90
16	-	1	Part 16	SEE PAGE 1062-2-4
17	F031738	2	Tee Fitting	-
18	F025511	1	Hydraulic Hose	L= 1800
19	F005059	1	Fitting	-
20	F024599	1	Elbow Fitting	-
21	F069273	1	PRESSURE SWITCH	(REPLACES F613931)
22	19M9674	3	Cap Screw	M6 X 12
23	F024371	1	Tank	-
24	TT224400	1	Orifice	-
25	F040264	1	Fitting	-
26	F022414	1	Elbow Fitting	-
27	F038293	2	Fitting	-
28	F023024	1	Hydraulic Hose	L= 910
29	F038346	2	Hydraulic Hose	L= 550
30	F001509	2	Hydraulic Accumulator	-
31	F003667	6	HOSE CLAMP	-
32	F034363	1	PLUG	NO LONGER IN USE
33	F053489	1	HOSE	L= 850
34	F001090	2	Nut	-
35	F005056	2	Fitting	-
36	F023535	2	Tee Fitting	-
37	F049065	2	PEDAL	SEE PAGE 1015-2
38	F026278	2	Fitting	-
39	F063311	1	Hose	L= 80
40	F052296	1	Clip	(REPLACES F010937)
41	F007709	8	Lock Washer	-
42	19M9686	8	Cap Screw	M8 X 40
43	F046606	1	Hydraulic Hose	L= 600 (REPLACES F025704)
44	F064193	3	Elbow Fitting	-
45	F024875	1	CONNECTION	-
46	F004546	1	CHECK VALVE	-
47	F005052	2	NIPPLE	-
48	F022417	2	Elbow Fitting	-
49	24M7507	3	Washer	6.400 X 18 X 1.600 MM
50	F069272	1	Pressure Switch	(REPLACES F613930)
51	F059979	1	HOSE	L= 1340
52	F059980	1	TEE FITTING	-
53	F005163	1	Sealing Washer	-
54	F003587	2	LOCK NUT	-
55	24M7509	2	Washer	8.400 X 16 X 1.600 MM

BRAKE HYDRAULIC HOSES, FITTINGS, AND COMPONENTS [01K04]
