Wheel End, 4 Wheel Long Front and Rear, LOK 65 / LOK 111

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F009498	4	Plug	-
2	F009463	4	Seal	-
3	F009387	2	Plug	-
4	F045263	1	Shim Kit	-
4	F009474	1	Shim	TK = 2.5 mm
4	F009480	1	Shim	TK = 1.0 mm
5	F004678	24	WHEEL NUT	-
6	F004736	24	Lock Washer	-
7	F069231	2	Housing	SUB FOR F053020
8	F051524	8	Sleeve	-
9	F051523	2	Housing	-
10	F035806	16	Lock Washer	-
11	F035807	8	Gear	Z = 25
12	F035808	16	WASHER	-
13	F025155	8	BEARING	-
14	F035809	8	Shaft	-
15	F009375	8	Washer	-
16	F052965	8	Self-Locking Screw	SUB FOR F054179
17	F047379	2	Shaft	-
18	F047376	2	Nut	-
19	F047375	1	Shim	TK = 2.5 mm
19	F047414	1	Shim	TK = 2.375mm
19	F047413	1	Shim	TK = 2.25 mm
19	F047412	1	Shim	TK = 2.125 mm
19	F047411	1	Shim	TK = 2.0 mm
19	-	1	Part 25	TK = 1.75 mm
19	F047408	1	Shim	TK = 1.625 mm
19	F047407	1	Shim	TK = 1.5 mm
19	F054187	1	Shim	TK = 1.375 mm
19	F056212	1	Shim Kit	-
19	F047410	1	Shim	TK = 1.875 mm
20	F011087	2	Gear	Z = 66
21	F047377	2	Gear	Z = 66
22	F011086	2	Snap Ring	-
23	F011082	2	O-Ring	-
24	F047371	2	Tapered Roller Bearing	LOK 65
24	F055306	2	Tapered Roller Bearing	LOK 111
25	F065888	2	Housing	LOK 111
25	F047381	2	Housing	LOK 65
25	F057676	2	HOUSING	NLA; ORDER F065888
26	F009360	24	Wheel Bolt	-
27	F007920	2	Tapered Roller Bearing	-
28	19M9648	8	Cap Screw	M12 X 30, SUB FOR F003542
29	F047290	2	Seal	-
30	F047374	2	Ring	-
31	F047372	2	O-Ring	-
32	F049368	32	Self-Locking Screw	-
33	F047378	2	Hub	-
34	F004716	2	O-Ring	-
35	F003735	24	NUT	SUB FOR APPL F004678 AND F004736
36	F047373	2	PLANET GEAR BOX ASSY	LOK 65
36	-	2	Part 52	LOK 111

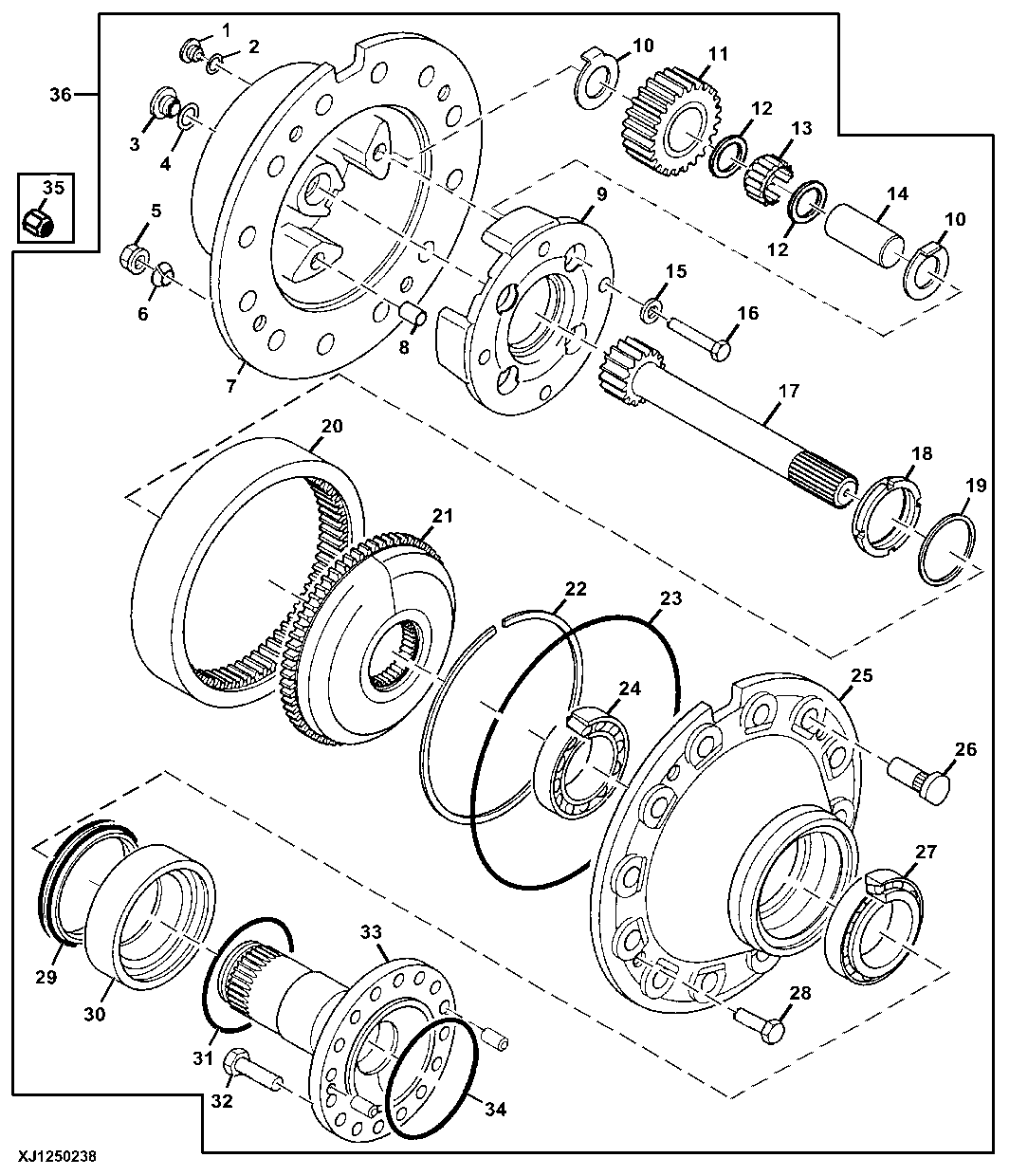

Wheel End, 4 Wheel Long Front and Rear, LOK 65 / LOK 111
