Открытый узел

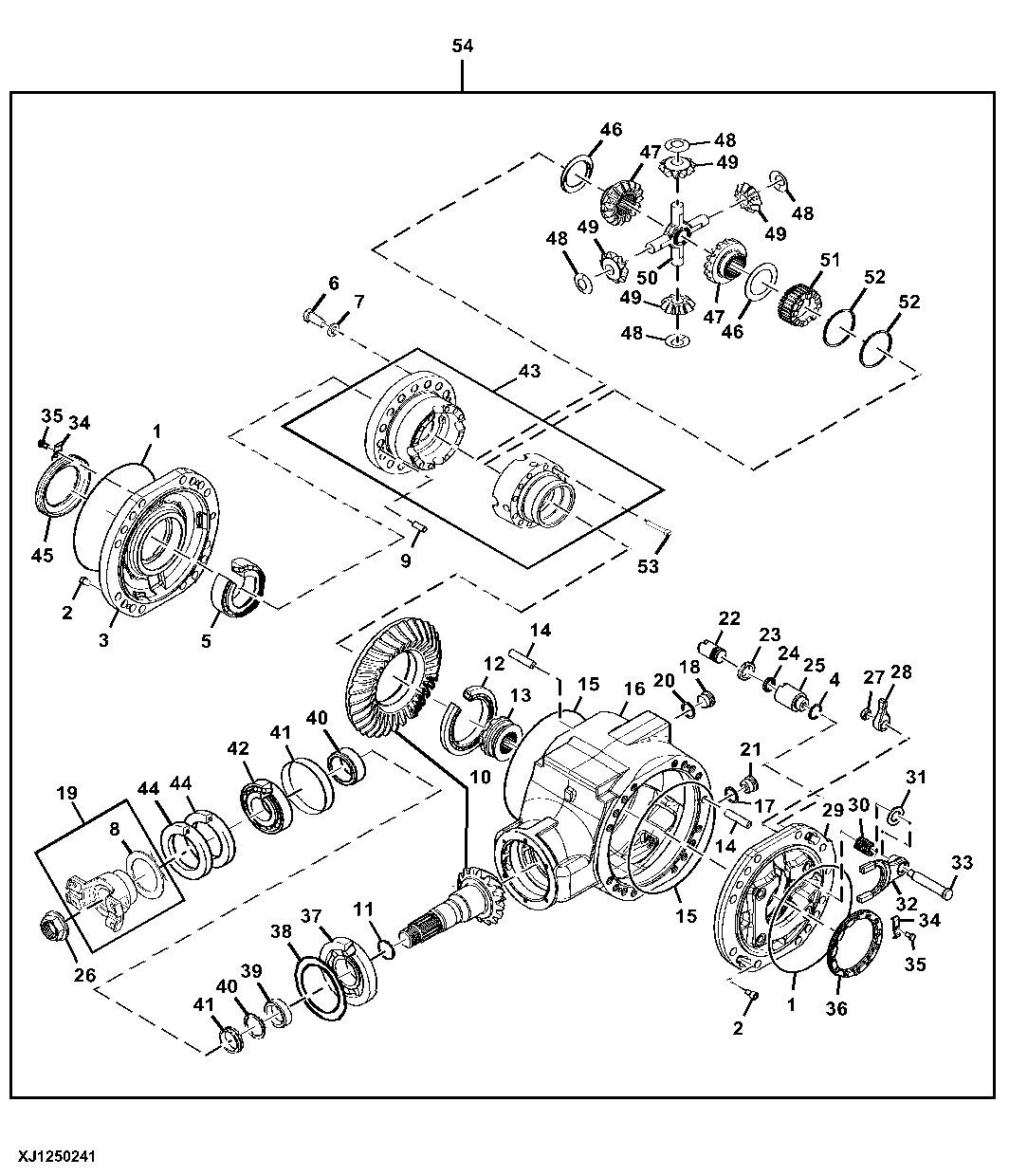

Differential, 4 Wheel Long Front and Rear, LOK 65 / LOK 111

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F003308	2	O-Ring	-
2	19M9703	4	Screw	M10 X 20, SUB FOR F003415
3	F046756	1	Flange	-
4	F046765	1	O-Ring	-
5	F025161	1	Bearing	-
6	F054176	16	Screw	-
7	F009375	16	Washer	-
8	F054186	1	WASHER	-
9	F025340	4	Pin	-
10	F054180	1	GEAR	Z = 36 / 8
11	F011429	1	O-Ring	-
12	F004688	1	Tapered Roller Bearing	-
13	F046760	1	Bushing	-
14	F046766	2	SPRING PIN	-
15	F040418	2	O-Ring	-
16	F046779	1	Housing	-
17	F009463	1	Seal	-
18	F009438	1	Plug	-
19	F054181	1	Flange	-
20	F009465	1	Sealing Ring	-
21	F009498	1	Plug	-
22	F050812	1	Piston	-
23	F050813	1	Seal	-
24	F009469	1	Seal	-
25	F046771	1	Cylinder	-
26	F021149	1	Nut	-
27	F023666	1	Nut	-
28	F064584	1	Locking Collar	SUB FOR F009403
29	F046757	1	Flange	-
30	F009394	1	Spring	-
31	F009378	1	Shim	TK = 1.5 mm
31	F056215	1	Shim	TK = 3.0 mm
31	F009383	1	Shim	TK = 2.5 mm
31	F009380	1	Shim	TK = 2.0 mm
31	F045259	1	Shim Kit	-
32	F046758	1	Fork	-
33	F009411	1	PIN	-
34	F004891	2	Lock Washer	-
35	F004638	2	Screw	-
36	F004814	1	Nut	-
37	F026691	1	Bearing	-
38	F047330	1	Shim	TK = 2.25 mm
38	F047331	1	Shim	TK = 2.3 mm
38	F047332	1	Shim	TK = 2.35 mm
38	F058334	1	Shim	TK = 2.4 mm
38	F057879	1	Shim Kit	-
39	F046772	1	Spacer	-
40	F023675	1	Shim	TK = 1.12 mm
40	F023667	1	Shim	TK = 1.44 mm
40	F023668	1	Shim	TK = 1.4 mm
40	F023669	1	Shim	TK = 1.36 mm
40	F023670	1	Shim	TK = 1.32 mm
40	F023671	1	Shim	TK = 1.28 mm
40	F023672	1	Shim	TK = 1.24 mm
40	F023673	1	Shim	TK = 1.2 mm
40	F023674	1	Shim	TK = 1.16 mm
40	F023676	1	Shim	TK = 1.08 mm
40	F023677	1	Shim	TK = 1.04 mm
40	F023678	1	Shim	TK = 1.0 mm
40	F023679	1	Shim	TK = 0.96 mm
40	F045262	1	Shim Kit	-
41	F046773	1	Spacer	TK = 12.26 mm
41	F035844	1	Spacer	TK = 11.78 mm
41	F035843	1	Spacer	TK = 11.3 mm
42	F046762	1	Bearing	-
43	F054177	1	Housing	-
44	F054178	2	Seal	-
45	F046778	1	Nut	-
46	F047406	1	Shim	TK = 2.2 mm
46	F047405	1	Shim	TK = 2.0 mm
46	F047404	1	Shim	TK = 1.7 mm
46	F046775	1	Shim	TK = 1.5 mm
46	F055349	2	Shim Kit	-
47	F046780	2	Gear	-
48	F046755	4	Thrust Washer	-
49	F046781	4	Gear	-
50	F046754	1	Shaft	-
51	F046759	1	Sleeve	-
52	F004757	2	Snap Ring	-
53	F046761	12	Cap Screw	-
54	F054182	1	DIFFERENTIAL	-

Differential, 4 Wheel Long Front and Rear, LOK 65 / LOK 111
