№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F623730	1	Bracket	-
2	F024364	2	Fitting	-
3	F023426	5	Fitting	-
4	14M7166	2	Lock Nut	M8
5	F024601	1	Fitting	-
6	19M9647	2	Cap Screw	M12 X 25, SUB FOR F003541
7	19M9682	4	Cap Screw	M8 X 20, SUB FOR F003524
8	19M8431	2	Screw	M8 X 90
9	24M7473	2	Washer	8.400 X 16 X 1.600 mm, SUB FOR F003338
10	AT306111	1	Fitting	-
11	F003382	3	PLUG	-
12	F003383	1	PLUG	-
13	F005045	1	Elbow Fitting	-
14	F005057	8	Fitting	-
15	F005060	2	Fitting	-
16	F005073	2	Tee Fitting	-
17	F005164	1	SEAL RING	-
18	F022417	5	Elbow Fitting	-
19	F023535	1	Tee Fitting	-
20	F024599	5	Elbow Fitting	-
21	F031738	1	Tee Fitting	-
22	F060288	1	VALVE	-
23	F069274	1	PRESSURE SWITCH	-
24	F071707	1	Adapter Fitting	-
25	T217792	1	Label	Hydraulic Oil Label
26	F062352	1	RELIEF VALVE	INCLUDES F062341
26	F062341	1	Seal Kit	Not Illustrated
27	F054724	1	RELIEF VALVE	INCLUDES F060052
27	F060052	1	Seal Kit	Not Illustrated
28	F065621	1	MANIFOLD	INCLUDES F062341
28	F062341	1	Seal Kit	Not Illustrated
29	F011293	1	PLUG	-
30	F062349	1	ORIFICE	-
31	F018111	2	PLUG	-
32	F015494	3	Check Valve	INCLUDES F062346
32	F062346	1	Seal Kit	Not Illustrated
33	F062342	1	Pressure Relief Valve	INCLUDES F698480
33	F698480	1	Seal Kit	Not Illustrated, SUB FOR F062341
34	F062554	5	Solenoid Valve	INCLUDES F698480
34	F698480	1	Seal Kit	Not Illustrated, SUB FOR F062341
35	F062553	6	NUT	-
36	F060200	8	Solenoid Valve Coil	INCLUDES F062341
36	F062341	1	Seal Kit	Not Illustrated
37	F075555	1	Nut	-
38	F062555	1	SOLENOID VALVE	NLA; ORDER F672991
38	F672991	1	Solenoid Hydraulic Valve	-
39	F062556	1	Solenoid Valve	-
40	F017241	1	Orifice	ID = 1.0 mm
41	F062340	5	SOLENOID VALVE	INCLUDES F062341
41	F062341	1	Seal Kit	Not Illustrated
42	F062345	1	Solenoid Valve	INCLUDES F060201
42	F060201	1	Seal Kit	Not Illustrated
43	F062347	1	Solenoid Valve	INCLUDES F698480
43	F698480	1	Seal Kit	Not Illustrated, SUB FOR F062341
44	F632746	8	Wiring Harness	Auxiliary Valve Solenoid Control Harness, INCLUDES 57M8662, R78066 AND 57M7621
44	57M8662	1	Elec. Connector Housing	-
44	R78066	1	Elec. Connector Terminal	-
44	57M7621	1	Elec.Connect Locking Device	-

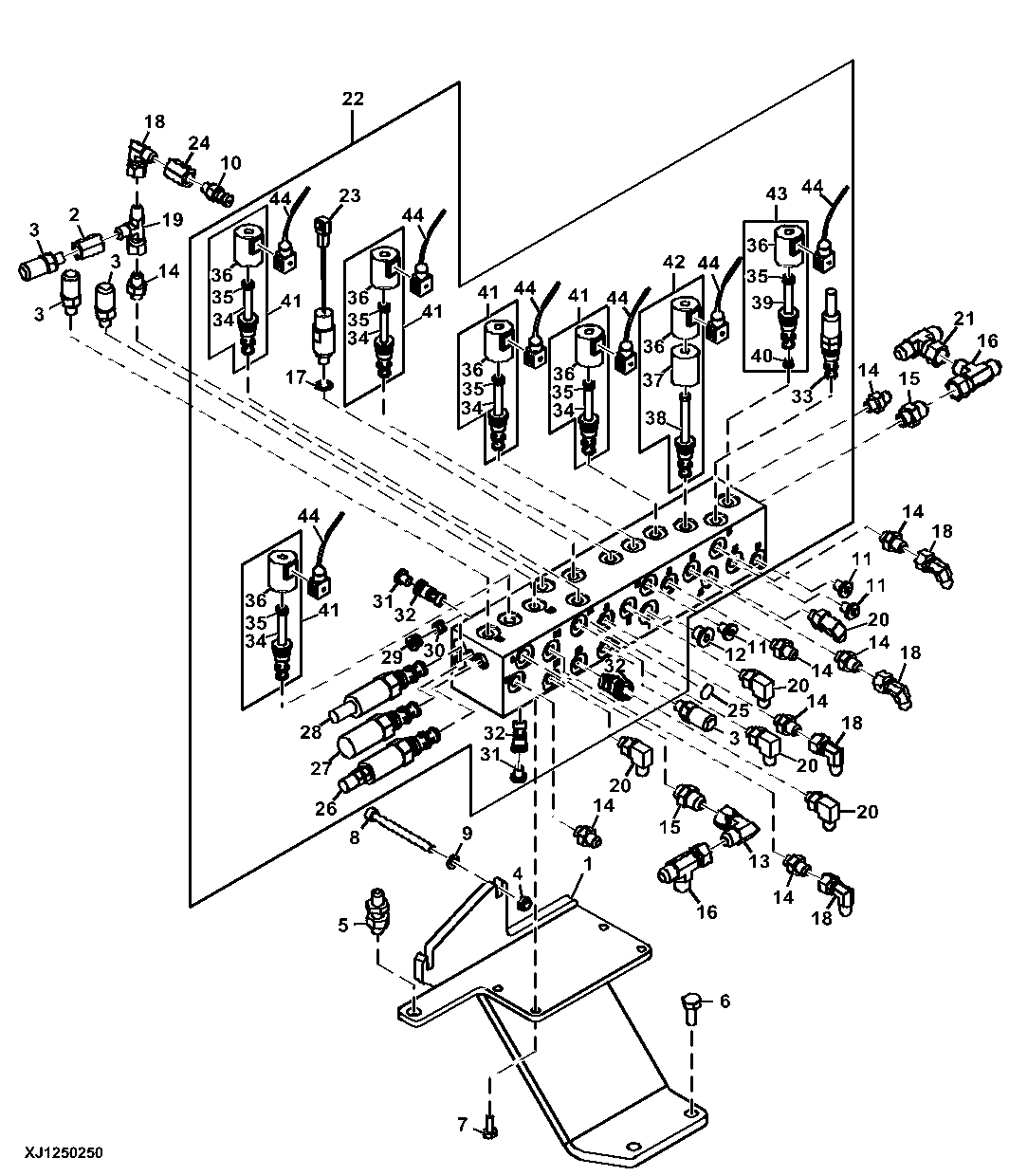

Auxiliary Functions Valve, 4 Wheel Long Drive
