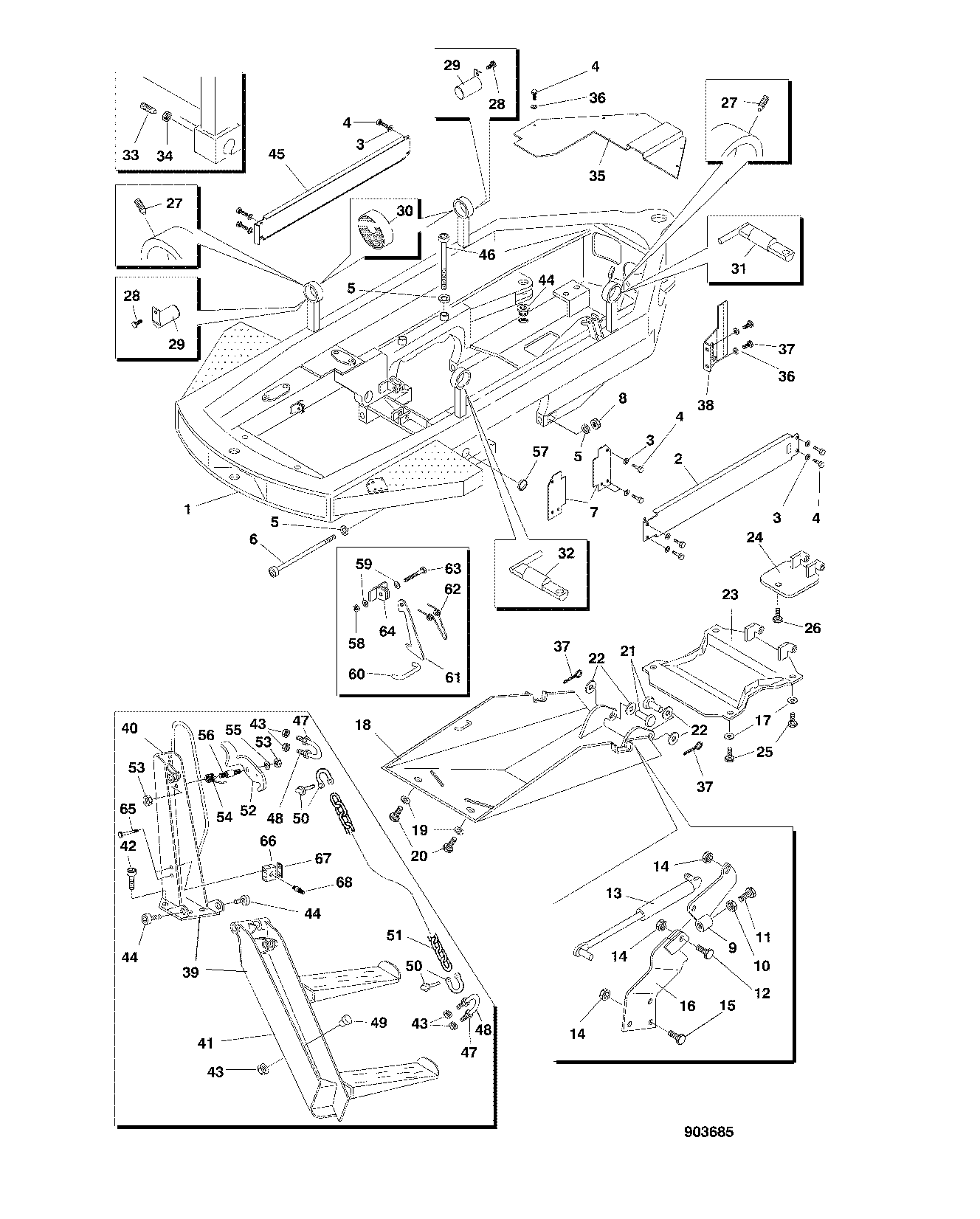

FRAME, PROTECTION PLATES FRONT FRAME AND SHIELD PLATES F062047 6100 2 903685 [903685]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F613245	1	FRONT FRAME	-
2	F048638	1	COVER	-
3	F003723	14	WASHER	-
4	F003530	19	SCREW	-
5	F046573	8	Lock Washer	-
6	F055787	2	Screw	-
7	F603310	4	Plate	-
8	F003572	2	NUT	-
9	F025878	1	LEVER	-
10	F003564	1	NUT	-
11	F011199	1	SCREW	-
12	F003536	1	SCREW	-
13	F055231	1	GAS SPRING	-
14	F003588	5	LOCK NUT	-
15	F003481	3	SCREW	-
16	F604154	1	LEVER	-
17	F003341	4	WASHER	-
18	F602847	1	UNDERSHIELD	-
19	F010790	2	WASHER	-
20	F003551	2	SCREW	-
21	F056917	2	PIVOT PIN	-
22	F003342	4	WASHER	-
23	F600742	1	PROTECTION	-
23	F604122	1	UNDERSHIELD	-
24	F039885	1	PROTECTION	-
25	F003437	4	Cap Screw	-
26	F003424	1	SCREW	-
27	F003465	4	STOP SCREW	-
28	F003523	2	SCREW	-
29	F005772	2	SHAFT	-
30	F004531	4	DAMPER	-
31	F005859	1	SHAFT	-
32	F005858	1	SHAFT	-
33	F004447	2	Self-Locking Screw	-
34	F003352	2	NUT	-
35	F048875	1	COVER PLATE	-
36	F003339	7	WASHER	-
37	F015779	2	SPLIT PIN	-
38	F048908	1	PLATE	-
39	F052032	1	STAIRS	-
40	F052020	1	HANDLE	-
41	F052022	1	STEP	-
42	F003424	4	SCREW	-
43	F003586	5	LOCK NUT	-
44	F050577	2	PLUG	-
45	F600467	1	COVER PLATE	-
46	F044900	4	Screw	-
47	F003562	4	NUT	-
48	F003381	2	WIRE LOCK	-
49	F010974	1	DAMPER	-
50	F007800	2	SHACKLE	-
51	F024929	1	CHAIN	-
52	F620230	1	PLATE	-
53	F003587	2	LOCK NUT	-
54	F612069	1	Spring	-
55	F003338	1	WASHER	-
56	F604478	1	Stud	-
57	F600697	2	PLUG	-
58	F003590	1	LOCK NUT	-
59	F003170	2	WASHER	-
60	F613989	1	CLIP	-
61	F613990	1	CATCH	-
62	F613994	1	SPRING	-
63	F026213	1	SCREW	-
64	F603527	1	FOOT BOARD	-
65	F028701	2	SCREW	-
66	F051593	1	Hose Support	-
67	F005182	1	Hose Support	-
68	-------	1	O-RING	-

FRAME, PROTECTION PLATES FRONT FRAME AND SHIELD PLATES F062047 6100 2 903685 [903685]
