Открытый узел

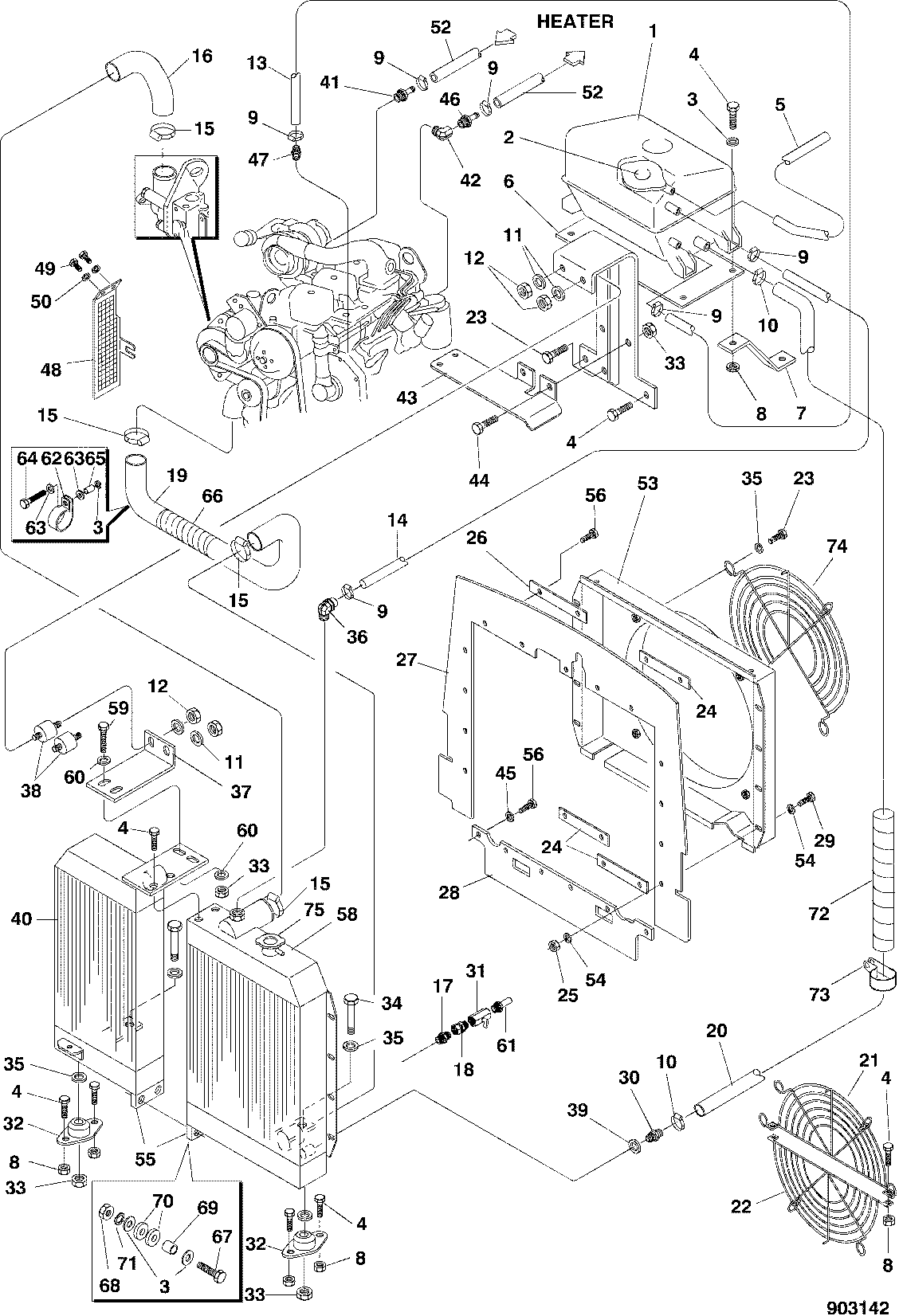

ENGINE COOLING SYSTEM F062047 1500 2 903142 [903142]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	F026697	1	EXPANSION TANK	-
2	F026891	1	CAP	-
3	F003338	9	WASHER	-
4	F003525	13	SCREW	-
5	F030381	1	HOSE	-
6	F048824	1	BRACKET	-
7	F048825	1	PLATE	-
8	F003587	11	LOCK NUT	-
9	F003668	6	Hose Clamp	-
10	F003671	2	HOSE CLAMP	-
11	F005551	4	Lock Washer	-
12	F003564	4	NUT	-
13	F053139	1	HOSE	-
13	F601427	1	Hose	-
14	F048852	1	HOSE	-
14	F601427	1	Hose	-
15	F003677	6	HOSE CLAMP	-
16	F048673	1	HOSE	-
17	F005057	1	Fitting	-
18	F024875	1	CONNECTION	-
19	F053488	1	HOSE	-
20	F048927	1	HOSE	-
21	F039803	1	GRID	-
22	F039802	1	GRID	-
23	F003532	7	SCREW	-
24	F052152	3	STRIP	-
25	F003586	8	LOCK NUT	-
26	F052153	1	STRIP	-
27	F048832	1	COLLAR	-
28	F048833	1	SEAL	-
29	F003520	8	SCREW	-
30	F048941	1	CONNECTION	-
31	F051166	1	BALL VALVE	-
32	F002506	2	DAMPER	-
33	F003588	8	LOCK NUT	-
34	F003484	2	SCREW	-
35	F003723	1	WASHER	-
36	F055171	1	CONNECTION	-
36	F054035	1	CONNECTION	-
37	F053530	1	SUPPORT	-
38	F040593	2	Torsional Damper	-
39	F018108	1	Washer	-
40	-------	1	O-RING	-
41	F056888	1	CONNECTION	-
42	F011042	1	Elbow Fitting	-
43	F048899	1	PROTECTION	-
44	F003533	2	SCREW	-
45	F003722	3	WASHER	-
46	-------	1	O-RING	-
47	-------	1	O-RING	-
48	F048894	1	PROTECTION	-
49	F003522	2	SCREW	-
50	F008262	2	Lock Washer	-
52	F052741	2	HOSE	-
53	F049263	1	FAN HOUSING	-
54	F031864	16	WASHER	-
55	F049272	1	COOLER	-
56	F003524	11	SCREW	-
57	F003586	10	LOCK NUT	-
58	F056895	1	WATER COOLER	-
59	F003538	2	SCREW	-
60	F003724	4	WASHER	-
61	F048942	1	Fitting	-
62	F010968	2	Hose Support	-
63	F003339	2	WASHER	-
64	F003478	1	SCREW	-
65	F604287	1	PIPE	-
66	F034203	1	Hose Guard	-
67	F003526	2	SCREW	-
68	F003563	2	NUT	-
69	F054190	2	SLEEVE	-
70	F054191	4	SEAL	-
71	F007709	2	Lock Washer	-
72	F032109	1	Hose Guard	-
73	F004420	1	Hose Clamp	-
74	F620980	1	GRID	-
75	F064421	1	CAP	-

ENGINE COOLING SYSTEM F062047 1500 2 903142 [903142]
