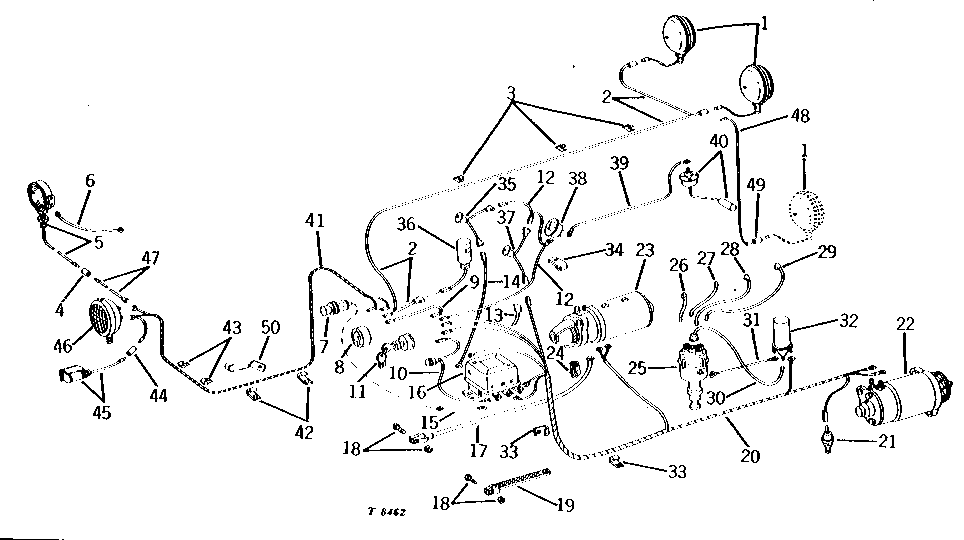

WIRING HARNESS AND ELECTRICAL SYSTEM (GASOLINE) (TRACTOR SERIAL NO. 042001- ) [01E18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE27099	2	HEADLIGHT	-
2	AT17612	1	WIRING HARNESS	-
3	T41072	3	CLIP	(SUB FOR F2084R AND M644T)
4	R32029	1	ELEC. CONNECTOR TERMINAL	(SUB FOR AL2976T) (WITH AUXILIARY WARNING LAMP)
5	AT14210	1	LAMP	-
6	-	1	Part 6	256MM (10") (MAKE FROM TY16076 AND (2) R32022) (SUB FOR AM2812T)
7	AR48643	1	ELECTRICAL LIGHTER	-
8	AR28401	1	SWITCH	LIGHT
9	-	1	Part 9	165MM (6-1/2") (MAKE FROM R32008 AND (2) R32024)
10	AT13208	1	FUSE HOLDER	(WITH 20 AMP FUSE)
11	AR26528	1	SWITCH	(SUB AT21418) IGNITION
11	AT21567	1	SWITCH	(SUB FOR AT21041) IGNITION
12	AT17602	1	WIRING HARNESS	-
13	R44302	2	Tie Band	-
14	-	1	Part 15	317MM (12-1/2") (MAKE FROM TY16076, R32024 AND R32016)
15	-	1	Part 16	210MM (8-1/4") (MAKE FROM TY16076, R32016 AND R32018) (SUB FOR AT541T)
16	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
17	AT13528	1	BATTERY CABLE	-
18	AM505T	2	BOLT	-
19	AT11516	1	GROUND CABLE	(SUB FOR AL2823T)
20	AT17599	1	WIRING HARNESS	-
20	AT21040	1	WIRING HARNESS	-
21	AR27977	1	TOUCH SWITCH	OIL PRESSURE
22	AR21906	1	DC GENERATOR	(SUB FOR AT12649) (DELCO-REMY NO. 1100399 AND 1947579) (12 VOLTS, 20 AMPS)
22	TY1431	1	DC GENERATOR	12 VOLTS, 20 AMPS
22	TY1438	1	DC GENERATOR	12 VOLTS, 16 AMPS
22	TY1440	1	DC GENERATOR	12 VOLTS, 20 AMPS
22	TY1442	1	DC GENERATOR	12 VOLTS, 11 AMPS
22	SE501389	1	GENERATOR	(REMAN FOR AR21906)

WIRING HARNESS AND ELECTRICAL SYSTEM (GASOLINE) (TRACTOR SERIAL NO. 042001- ) [01E18]
