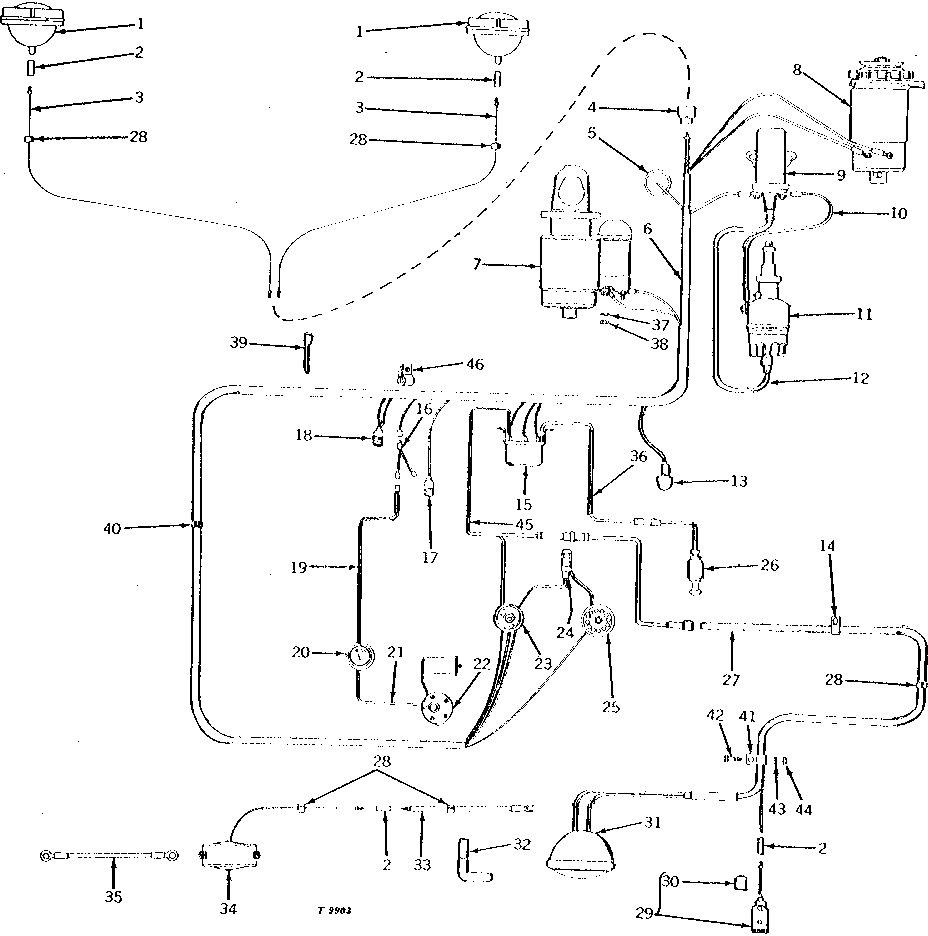

WIRING HARNESS AND ELECTRICAL SYSTEM (GASOLINE) (TRACTOR SERIAL NO. 016649-042000) [01E16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
14	L4353T	3	CLIP	(B) (RC, RU, UT) (NO LONGER AVAILABLE)
15	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
16	AT13332	1	WIRING HARNESS	-
17	AT14699	1	INDICATOR LAMP	GENERATOR
18	AR27944	1	LAMP	OIL PRESSURE, (SUB FOR AT17816)
19	-	1	Part 6	102MM (4") (MAKE FROM TY16076, R32018, R32025 AND R32027) (SUB FOR AT13463)
20	R34262	1	GAUGE	(SUB FOR AR26716)
21	-	1	Part 8	686MM (27") (MAKE FROM TY16076 AND (2) R32018) (SUB FOR AT13462)
22	AT13156	1	SENDER	FUEL GAUGE
23	AR26528	1	SWITCH	IGNITION, (SUB AT21418)
24	AT14193	1	FUSE HOLDER	-
25	AR28401	1	SWITCH	LIGHT
26	-	1	Part 13	(NO LONGER AVAILABLE)
27	AT13344	1	WIRING HARNESS	-
28	T41072	6	CLIP	(SUB FOR F2084R AND M644T)
29	AM2049T	1	SOCKET	-
30	-	1	Part 17	(NO LONGER AVAILABLE)
31	AR77326	1	FLOODLAMP	(SUB FOR AT16288)
32	M2201T	1	ARM	(A) (RS, UT) (NO LONGER AVAILABLE)
32	T11341	1	PIN FASTENER	(B) (RC, RS, RU, RUS, UT) (NO LONGER AVAILABLE)
32	T10888	1	LIFT ARM	(A) (RC, RU) (DELUXE SEAT) (NO LONGER AVAILABLE)
32	T11341	1	PIN FASTENER	(A) (RC, RU, RUS) (REGULAR SEAT) (NO LONGER AVAILABLE)
33	-	1	Part 23	256MM (10") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AM2811T)
33	-	1	Part 24	610MM (24-1/8") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AL2971T)
34	AT14210	1	LAMP	-
35	-	1	Part 26	256MM (10") (MAKE FROM TY16076 AND (2) R32022) (SUB FOR AM2812T)
36	AT15823	1	WIRING LEAD	(NO LONGER AVAILABLE)
37	12H304	1	Lock Washer	3/8", (SUB FOR T11088)
38	14H732	1	Nut	3/8"
39	R44302	2	Tie Band	-
40	T12016	2	CLIP	(A) (RC, RU, RUS, UT) (NO LONGER AVAILABLE)
41	M459T	1	CLAMP	(B) (RC, RU, RUS, UT) (NO LONGER AVAILABLE)
42	19H2020	1	Cap Screw	(B) 5/16" X 1/2"
43	12H303	1	Lock Washer	(B) 5/16"
44	14H785	1	Nut	(B) 5/16"
45	AT14192	1	WIRING LEAD	(20 AMP FUSE) (NO LONGER AVAILABLE)
46	T13914	1	Clamp	-

WIRING HARNESS AND ELECTRICAL SYSTEM (GASOLINE) (TRACTOR SERIAL NO. 016649-042000) [01E16]
