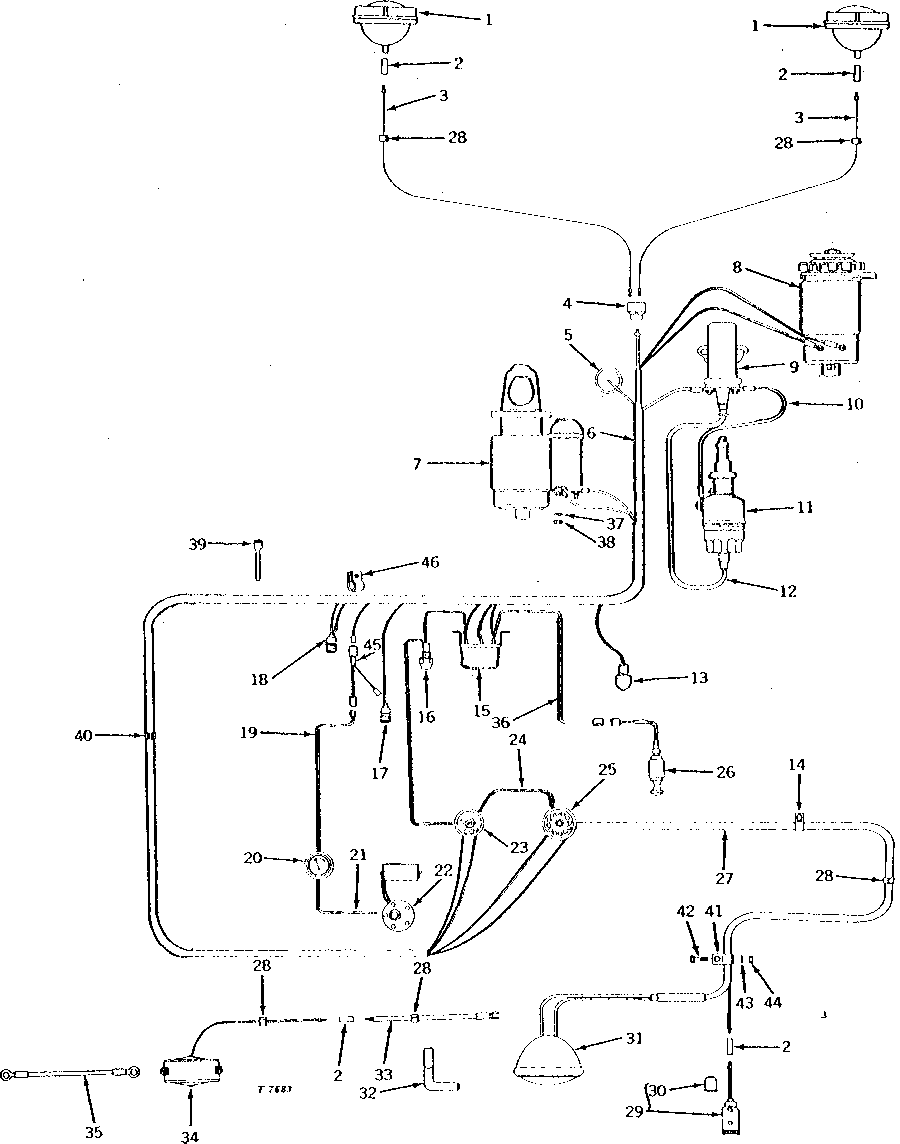

WIRING HARNESS AND ELECTRICAL SYSTEM (GASOLINE) (TRACTOR SERIAL NO. 010001-016648) [01E12]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE27099	2	HEADLIGHT	(SUB FOR AT12935)
2	R32029	4	ELEC. CONNECTOR TERMINAL	(SUB FOR AL2976T)
3	-	2	Part 3	622MM (24-1/2") (MAKE FROM TY16076 AND (2) R32026) (SUB FOR AT13346)
4	AM531T	1	ELECTRICAL CONNECTOR ASSY	-
5	AR27977	1	TOUCH SWITCH	OIL PRESSURE
6	AT16691	1	WIRING HARNESS	(SUB FOR AT13335 OR AT13986)
7	AT16311	1	MOTOR	(DELCO-REMY NOS. 1107879, 1107280 AND 1107326) (SUB FOR AT12283) (SUB TY6704)
7	TY6704	1	STARTER MOTOR	(SUB FOR AT16311 OR TY6629)
8	AR21906	1	DC GENERATOR	(DELCO-REMY NO. 1100399 AND 1947579) (SUB FOR AT12649) (12 VOLTS, 20 AMPS)
8	TY1431	1	DC GENERATOR	12 VOLTS, 20 AMPS
8	TY1438	1	DC GENERATOR	12 VOLTS, 16 AMPS
8	TY1440	1	DC GENERATOR	12 VOLTS, 20 AMPS
8	TY1442	1	DC GENERATOR	12 VOLTS, 11 AMPS
8	SE501389	1	GENERATOR	(REMAN FOR AR21906)
9	AR46064	1	ELECTRICAL COIL	(DELCO-REMY NO. 1115202) (SUB FOR AM791T OR AM373T)
9	AT14385	1	ELECTRICAL COIL	(ELECTRIC AUTO-LITE NO. 200627)
10	-	1	Part 17	356MM (14") (MAKE FROM R32008 AND (2) R32017) (SUB FOR AM355T)
11	AT17366	1	IGNITION DISTRIBUTOR	(DELCO-REMY NOS. X-23226, 1112577, AND 1112623) (SUB FOR AT361T AND AR11145) (NLA)
11	AT14119	1	IGNITION DISTRIBUTOR	(SUB AT21351 AND AT21941)
12	-	1	Part 20	305MM (12") (MAKE FROM R32006, (2) R32012 AND (2) A3539R) (SUB FOR AM374T)
13	AR33479	1	LAMP	(B) (SUB FOR AR35993)
14	L4353T	3	CLIP	(UT) (NO LONGER AVAILABLE)
15	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
16	AT13208	1	FUSE HOLDER	-
17	AT14699	1	INDICATOR LAMP	GENERATOR
18	AR27944	1	LAMP	OIL PRESSURE, (SUB FOR AT17816)
19	-	1	Part 27	102MM (4") (MAKE FROM TY16076, R32018, R32025 AND R32027) (SUB FOR AT13463)
20	R34262	1	GAUGE	(SUB FOR AR26716)
21	-	1	Part 29	686MM (27") (MAKE FROM TY16076 AND (2) R32018) (SUB FOR AT13462)
22	AT13156	1	SENDER	FUEL GAUGE
23	AR26528	1	SWITCH	IGNITION, (SUB AT21418)
24	-	1	Part 32	248MM (9-3/4") (MAKE FROM TY16076, (2) R32024 AND R32027) (SUB FOR AT13345)
25	AR28401	1	SWITCH	LIGHT
26	-	1	Part 34	(NO LONGER AVAILABLE)
27	AT13344	1	WIRING HARNESS	-
28	T41072	6	CLIP	(SUB FOR M644T)
29	AM2049T	1	SOCKET	-
30	-	1	Part 38	(NO LONGER AVAILABLE)
31	AR77326	1	FLOODLAMP	(SUB FOR AT16288)
32	M2201T	1	ARM	(A) (RS, UT) (NO LONGER AVAILABLE)
32	T11341	1	PIN FASTENER	(A) (RU) (REGULAR SEAT) (NO LONGER AVAILABLE)
32	T11341	1	PIN FASTENER	(B) (RS, RU, UT) (NO LONGER AVAILABLE)
32	T10888	1	LIFT ARM	(A) (RU) (DELUXE SEAT) (NO LONGER AVAILABLE)
33	-	1	Part 45	610MM (24-1/8") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AL2971T)
33	-	1	Part 44	256MM (10") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AM2811T)
34	AT14210	1	LAMP	-
35	-	1	Part 47	256MM (10") (MAKE FROM TY16076 AND (2) R32022) (SUB FOR AM2812T)
36	AT15823	1	WIRING LEAD	(NO LONGER AVAILABLE)
37	12H304	1	Lock Washer	3/8", (SUB FOR T11088)
38	14H732	1	Nut	3/8"
39	R44302	2	Tie Band	-
40	T12016	2	CLIP	(A) (UT) (NO LONGER AVAILABLE)
41	M459T	1	CLAMP	(B) (UT) (NO LONGER AVAILABLE)
42	19H2020	1	Cap Screw	(B) 5/16" X 1/2"
43	12H303	1	Lock Washer	(B) 5/16"
44	14H785	1	Nut	(B) 5/16"
45	AT13332	1	WIRING HARNESS	-
46	T13914	1	Clamp	(ON SPEED HOUR METER)
