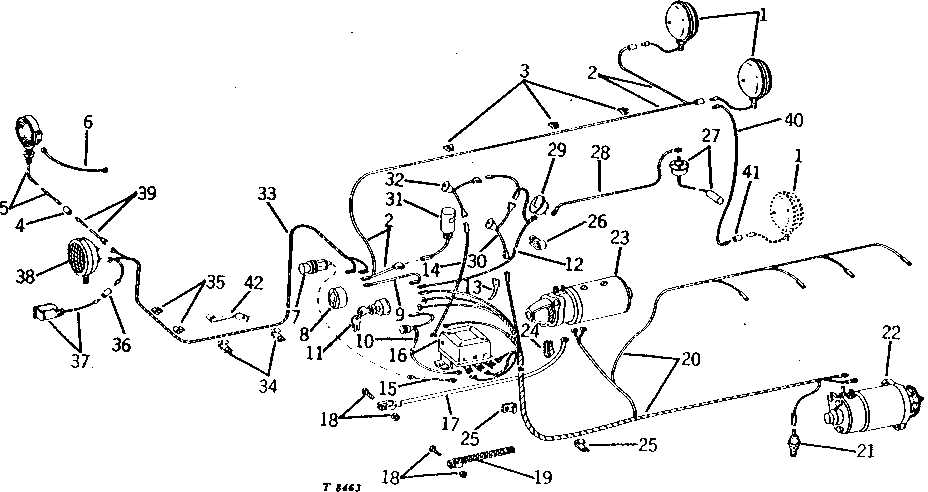

WIRING HARNESS AND ELECTRICAL SYSTEM (DIESEL) (TRACTOR SERIAL NO. 042001- ) [01E10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE27099	2	HEADLIGHT	(SUB FOR AT12935)
2	AT17612	1	WIRING HARNESS	-
3	T41072	3	CLIP	(SUB FOR F2084R AND M644T)
4	R32029	1	ELEC. CONNECTOR TERMINAL	(SUB FOR AL2976T)
5	AT14210	1	LAMP	-
6	-	1	Part 6	256MM (10") (MAKE FROM TY16076 AND (2) R32022) (SUB FOR AM2812T)
7	AR48643	1	ELECTRICAL LIGHTER	-
8	AR28401	1	SWITCH	LIGHT
9	-	1	Part 9	165MM (6-1/2") (MAKE FROM R32008 AND (2) R32024)
10	AT13208	1	FUSE HOLDER	(20 AMP FUSE)
11	AT17621	1	SWITCH	STARTER
12	AT17602	1	WIRING HARNESS	-
13	R44302	2	Tie Band	-
14	-	1	Part 14	318MM (12-1/2") (MAKE FROM TY16076, R32024 AND R32016)
15	-	1	Part 15	210MM (8-1/4") (MAKE FROM TY16076, R32016 AND R32018) (SUB FOR AT541T)
16	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
17	AT13528	1	BATTERY CABLE	-
18	AM505T	2	BOLT	-
19	AT11516	1	GROUND CABLE	(SUB FOR AL2823T)
20	AT17598	1	WIRING HARNESS	-
21	AR27977	1	TOUCH SWITCH	OIL PRESSURE
22	SE501389	1	GENERATOR	(REMAN FOR AR21906)
22	TY1442	1	DC GENERATOR	12 VOLTS, 11 AMPS
22	TY1440	1	DC GENERATOR	12 VOLTS, 20 AMPS
22	TY1431	1	DC GENERATOR	12 VOLTS, 20 AMPS
22	AR21906	1	DC GENERATOR	(DELCO-REMY NO. 1100399 AND 1947579) (SUB FOR AT12649) (12 VOLTS, 20 AMPS)
22	TY1438	1	DC GENERATOR	12 VOLTS, 16 AMPS
23	AT17411	1	STARTER MOTOR	(DELCO-REMY NO. 1107573) (SUB TY6695)
23	AT17515	1	STARTER MOTOR	(PRESTOLITE NO. MFX-8001A) (SUB TY6695)
23	TY6695	1	STARTER MOTOR	REMANUFACTURED, (SUB FOR AT17411, AT17515 OR TY1457)
24	T12250	1	CLIP	-
25	T19935	2	Clamp	-
26	T13914	1	Clamp	-
27	AT13156	1	SENDER	FUEL GAUGE
28	-	1	Part 35	508MM (20") (MAKE FROM TY16076 AND (2) R32018)
29	R34262	1	GAUGE	-
30	AR27944	1	LAMP	OIL PRESSURE, (SUB FOR AT17816)
31	AR33479	1	LAMP	(SUB FOR AR35993)
32	AT14699	1	INDICATOR LAMP	GENERATOR
33	AT17613	1	WIRING HARNESS	(OR, RC, RU, RUS, UT)
34	T19325	2	CLIP	(SUB T19935)
35	T41072	3	CLIP	(OR, RS, UT) (SUB FOR F2084R AND M644T)
35	T41072	1	CLIP	(RC. RU, RUS) (SUB FOR F2084R AND M644T)
36	R32029	1	ELEC. CONNECTOR TERMINAL	(SUB FOR AL2976T)
37	AM2049T	1	SOCKET	-
38	AR77326	1	FLOODLAMP	(SUB FOR AT16288)
39	-	1	Part 47	256MM (10") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AM2811T)
39	-	1	Part 48	610MM (24-1/8") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AL2971T)
40	AT13346	2	WIRING LEAD	(OR) (NO LONGER AVAILABLE)
41	R32029	2	ELEC. CONNECTOR TERMINAL	(OR) (SUB FOR AL2976T)
42	T19439	1	CLAMP	(RC, RU, RUS) (NO LONGER AVAILABLE)

WIRING HARNESS AND ELECTRICAL SYSTEM (DIESEL) (TRACTOR SERIAL NO. 042001- ) [01E10]
