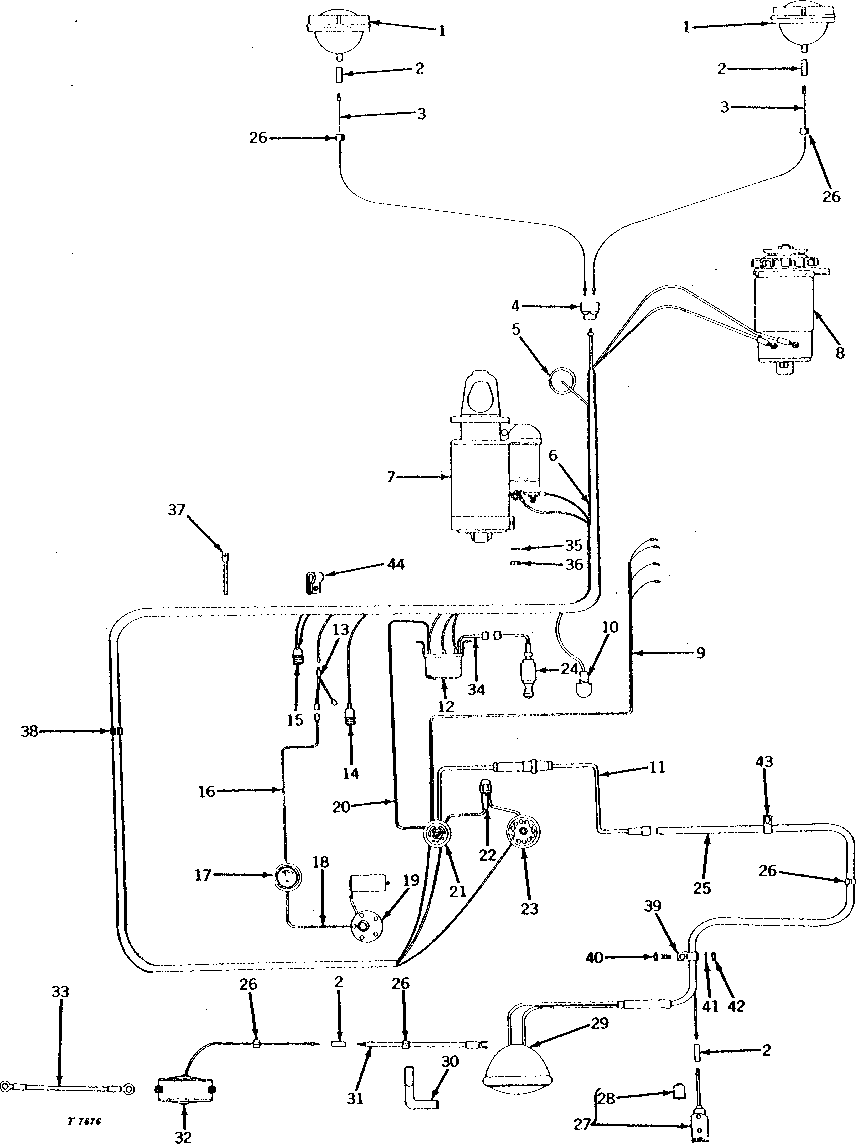

WIRING HARNESS AND ELECTRICAL SYSTEM (DIESEL) (TRACTOR SERIAL NO. 016640-042000) [01E08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE27099	2	HEADLIGHT	(SUB FOR AT12935)
2	R32029	4	ELEC. CONNECTOR TERMINAL	(SUB FOR AL2976T)
3	-	1	Part 4	622MM (24-1/2") (OR) (MAKE FROM TY16076 AND (2) R32026) (SUB FOR AT13346)
3	-	1	Part 5	800MM (31-1/2") (RC,RS,RU,UT) (MAKE FROM TY16076 AND (2) R32026) (SUB FOR AL2973T)
3	-	1	Part 6	165MM (6-1/2") (OR) (MAKE FROM TY16076 AND R32026) (SUB FOR AT15530)
3	-	2	Part 3	622MM (24-1/2") (RC,RS,RU,UT) (MAKE FROM TY16076 AND (2) R32026) (SUB FOR AT13346)
4	AM531T	1	ELECTRICAL CONNECTOR ASSY	-
5	AR27977	1	TOUCH SWITCH	OIL PRESSURE
6	AT16692	1	WIRING HARNESS	(SUB FOR AT14041)
7	AT17411	1	STARTER MOTOR	(DELCO-REMY NOS. 1107573, 1108672, 1107523 AND 1107556) (SUB FOR AT12458, AT15334 OR AT16209) (SUB TY6695)
7	TY1457	1	STARTER MOTOR	(12-VOLT) DELCO-REMY REMANUFACTURED
8	AR21906	1	DC GENERATOR	(DELCO-REMY NO. 1100399 AND 1947579) (SUB FOR AT12649) (12 VOLTS, 20 AMPS)
8	SE501389	1	GENERATOR	(REMAN FOR AR21906)
9	AT14040	1	WIRING HARNESS	-
10	AR33479	1	LAMP	(SUB FOR AR35993) (SUB R13195)
11	AT14194	1	WIRING LEAD	(20 AMP FUSE) (NO LONGER AVAILABLE)
12	AT11855	1	VOLTAGE REGULATOR	(DELCO-REMY NO. 1118779)
13	AT13332	1	WIRING HARNESS	-
14	AT14699	1	INDICATOR LAMP	GENERATOR
15	AR27944	1	LAMP	OIL PRESSURE, (SUB FOR AT17816)
16	-	1	Part 21	102MM (4") (MAKE FROM TY16076, R32018, R32025 AND R32027) (SUB FOR AT13463)
17	R34262	1	GAUGE	(SUB FOR AR26716)
18	-	1	Part 23	686MM (27") (MAKE FROM TY16076 AND (2) R32018) (SUB FOR AT13462)
19	AT13156	1	SENDER	FUEL GAUGE
20	-	1	Part 25	559MM (22") (MAKE FROM R32009 AND (2) R32021) (SUB FOR AT14039)
20	-	2	Part 26	559MM (22") (MAKE FROM R32009 AND (2) R32021) (SUB FOR AT14039)
21	AT16703	1	SWITCH	STARTER
21	AT11889	1	SWITCH	STARTER, (SUB AT16703 AND AT16704)
22	AT14193	1	FUSE HOLDER	(20 AMP FUSE)
23	AR28401	1	SWITCH	LIGHT
24	-	1	Part 31	(NO LONGER AVAILABLE)
25	AT13344	1	WIRING HARNESS	-
26	T41072	6	CLIP	(SUB FOR M644T)
27	AM2049T	1	SOCKET	-
28	-	1	Part 35	(NO LONGER AVAILABLE)
29	AR77326	1	FLOODLAMP	(SUB FOR AT16288)
30	M2201T	1	ARM	(A) (RS, UT) (NO LONGER AVAILABLE)
30	T11341	1	PIN FASTENER	(A) (RC, RU) (REGULAR SEAT) (NO LONGER AVAILABLE)
30	T11341	1	PIN FASTENER	(B) (RC, RS, RU, UT) (NO LONGER AVAILABLE)
30	T10888	1	LIFT ARM	(A) (RC, RU) (DELUXE SEAT) (NLA)
31	-	1	Part 42	610MM (24-1/8") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AL2971T)
31	-	1	Part 41	256MM (10") (MAKE FROM TY16076, R32026 AND R32016) (SUB FOR AM2811T)
32	AT14210	1	LAMP	-
33	-	1	Part 44	256MM (10") (MAKE FROM TY16076 AND (2) R32022) (SUB FOR AM2812T)
34	AT15823	1	WIRING LEAD	(SUB FOR AT13790 AND AT15544)
35	12H304	1	Lock Washer	3/8", (SUB FOR T11088)
36	14H732	1	Nut	3/8"
37	R44302	2	Tie Band	-
38	T12016	2	CLIP	(A) (UT) (NO LONGER AVAILABLE)
39	M459T	1	CLAMP	(B) (UT) (NO LONGER AVAILABLE)
40	19H2020	1	Cap Screw	(B) 5/16" X 1/2", (UT)
41	12H303	1	Lock Washer	(B) 5/16", (UT)
42	14H785	1	Nut	(B) 5/16", (UT)
43	L4353T	3	CLIP	(B) (UT) (NO LONGER AVAILABLE)
44	T13914	1	Clamp	(ON SPEED HOUR METER)

WIRING HARNESS AND ELECTRICAL SYSTEM (DIESEL) (TRACTOR SERIAL NO. 016640-042000) [01E08]
