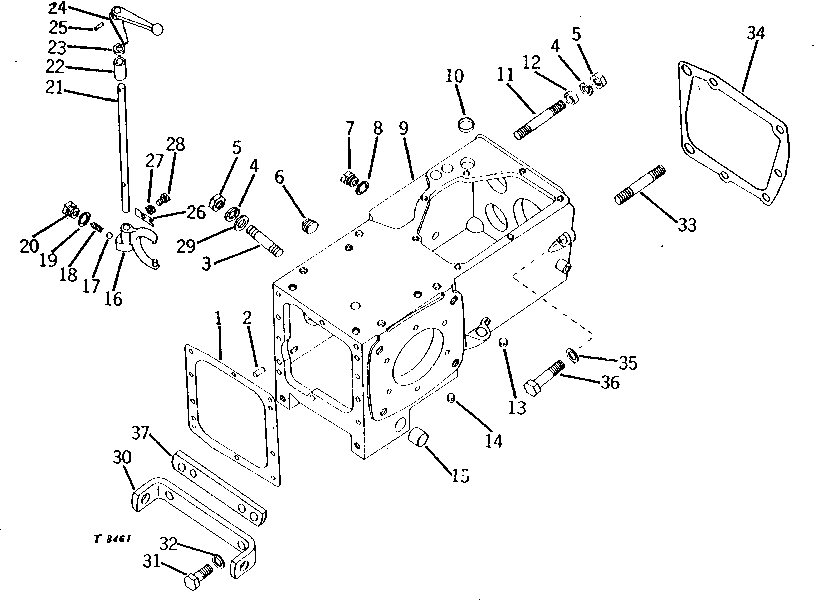

TRANSMISSION CASE (SINGLE ROW-CROP, UTILITY AND ORCHARD) [01H23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T12840	1	GASKET	(SUB FOR M174T)
2	BP11946	2	DOWEL PIN	(SUB FOR L4126T)
3	M3211T	2	STUD	-
3	M3210T	6	STUD	-
4	12H294	11	Lock Washer	5/8"
5	14H1039	11	Nut	5/8"
6	15H585	2	Pipe Plug	3/4"
7	M124T	1	HOLDER	-
8	L754T	1	SEAL	(SUB R205196)
9	T14594	1	TRANSMISSION CASE	(NO LONGER AVAILABLE)
9	T19171	1	TRANSMISSION CASE	(NO LONGER AVAILABLE)
10	T12083	1	Plug	(DUAL 540-1000 RPM PTO)
11	M3209T	2	STUD	-
12	T17328	2	BUSHING	(SUB FOR M14T)
13	15H666	1	Pipe Plug	3/8"
14	15H275	1	Pipe Plug	1/4"
15	M2038T	2	BUSHING	-
16	M3874T	1	FORK	(A)
17	R42849	1	Ball	(A) (SUB FOR 405R)
18	L468T	1	SPRING	(A)
19	L754T	1	SEAL	(A) (SUB R205196)
20	M124T	1	HOLDER	(A)
21	M119T	1	PIN FASTENER	(A)
22	M115T	1	BUSHING	(A)
23	M121T	1	Washer	(A)
24	M3318T	1	SHIFTER	(A)
25	25H50	1	Groove Pin	5/32" X 3/4"
26	M123T	1	LOCK	(A)
27	14H611	1	Nut	(A) 5/16"
28	22H996	1	SET SCREW	(A) 5/16" X 1", (SUB FOR M3413T)
29	24H1368	4	Washer	21/32" X 1-5/16" X 0.090", (RS)
30	M2978T	1	BRACKET	(RS)
31	19H1756	2	Cap Screw	5/8" X 1-1/2", (RS)
31	19H1708	2	CAP SCREW	5/8" X 1-3/4", (DUAL POWER LIFT)
32	12H294	2	Lock Washer	5/8", (RS)
33	T19473	1	STUD	(SUB FOR T13216) (NO LONGER AVAILABLE)
34	T19205	1	GASKET	-
35	12H294	2	Lock Washer	5/8"
36	19H1863	2	Cap Screw	5/8" X 3"
37	T19440	1	STRAP	(DUAL POWER LIFT) (NO LONGER AVAILABLE)

TRANSMISSION CASE (SINGLE ROW-CROP, UTILITY AND ORCHARD) [01H23]
