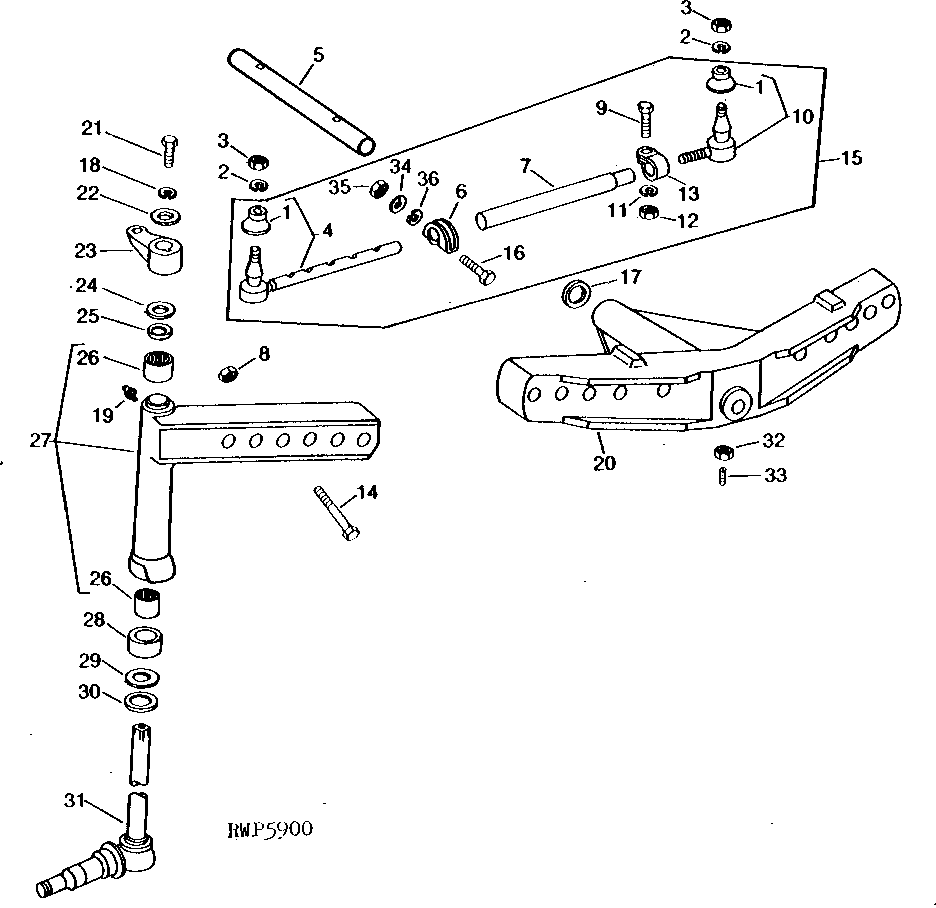

SWEPT-BACK FRONT AXLE (SINGLE ROW-CROP, UTILITY AND ORCHARD) (TRACTOR SERIAL NO. 0420001- ) [02E20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M648T	4	Dust Shield	-
2	12H317	6	Lock Washer	9/16"
3	14H394	4	NUT	9/16"
4	AT20540	2	END	-
5	T12786	1	DOWEL PIN	-
6	T19655	2	CLAMP	(NO LONGER AVAILABLE)
7	T19656	2	TUBE	(RC) (NO LONGER AVAILABLE)
7	T19656	2	TUBE	(OR, UT) (NO LONGER AVAILABLE)
7	T19741	2	TUBE	(OR, UT) (NO LONGER AVAILABLE)
8	14H794	4	Nut	3/4"
9	19H3552	2	Cap Screw	5/16" X 1-1/2"
10	AT13971	2	BALL JOINT	-
11	12H303	2	Lock Washer	5/16"
12	14H785	2	Nut	5/16"
13	T17700	2	CLAMP	-
14	19H2084	4	Cap Screw	3/4" X 4-1/2", (OR, RS, UT)
15	AT17639	2	TIE ROD ASSEMBLY	(RC) (NO LONGER AVAILABLE)
15	AT17639	2	TIE ROD ASSEMBLY	(OR, UT) (NO LONGER AVAILABLE)
15	AT20625	2	TIE ROD ASSEMBLY	(OR, UT) (NO LONGER AVAILABLE)
16	19H2399	2	Cap Screw	1/2" X 2-1/2"
17	M4145T	1	SHIM	(SUB FOR M4143T)
17	M4142T	1	WASHER	(SUB FOR M4144T)
18	12H294	2	Lock Washer	5/8"
19	JD7759	2	Lubrication Fitting	-
20	T19351	1	FRONT AXLE	(NO LONGER AVAILABLE)
21	19H1756	2	Cap Screw	5/8" X 1-1/2"
22	M1006T	2	WASHER	-
23	T19404	1	LEVER	R.H. (NO LONGER AVAILABLE)
23	T19405	1	LEVER	L.H. (NO LONGER AVAILABLE)
24	M1250T	1	SHIM	0.7MM (.027")
25	M1518T	2	WASHER	-
26	JD8820	4	NEEDLE BEARING	-
27	AT17642	1	END	(OR, UT) (MARKED T19356) (NO LONGER AVAILABLE)
27	AT17636	1	END	(RS) (MARKED T19352) (NO LONGER AVAILABLE)
27	AT17643	1	END	(OR, UT) (MARKED T19357) (NO LONGER AVAILABLE)
27	AT17637	1	END	(RS) (MARKED T19353) (NO LONGER AVAILABLE)
28	JD8407	2	THRUST BEARING	-
29	M2283T	2	WASHER	-
30	M2282T	2	WASHER	-
31	AT17635	2	SPINDLE	(RS) (NO LONGER AVAILABLE)
31	AT17644	2	SPINDLE	(OR, UT)
32	14H826	2	Nut	1/2"
33	22H698	2	SET SCREW	1/2" X 1-1/4"
34	24H1227	1	Washer	17/32" X 13/16" X 0.060"
35	14H865	2	Nut	1/2"
36	12H301	1	Lock Washer	1/2"

SWEPT-BACK FRONT AXLE (SINGLE ROW-CROP, UTILITY AND ORCHARD) (TRACTOR SERIAL NO. 0420001- ) [02E20]
