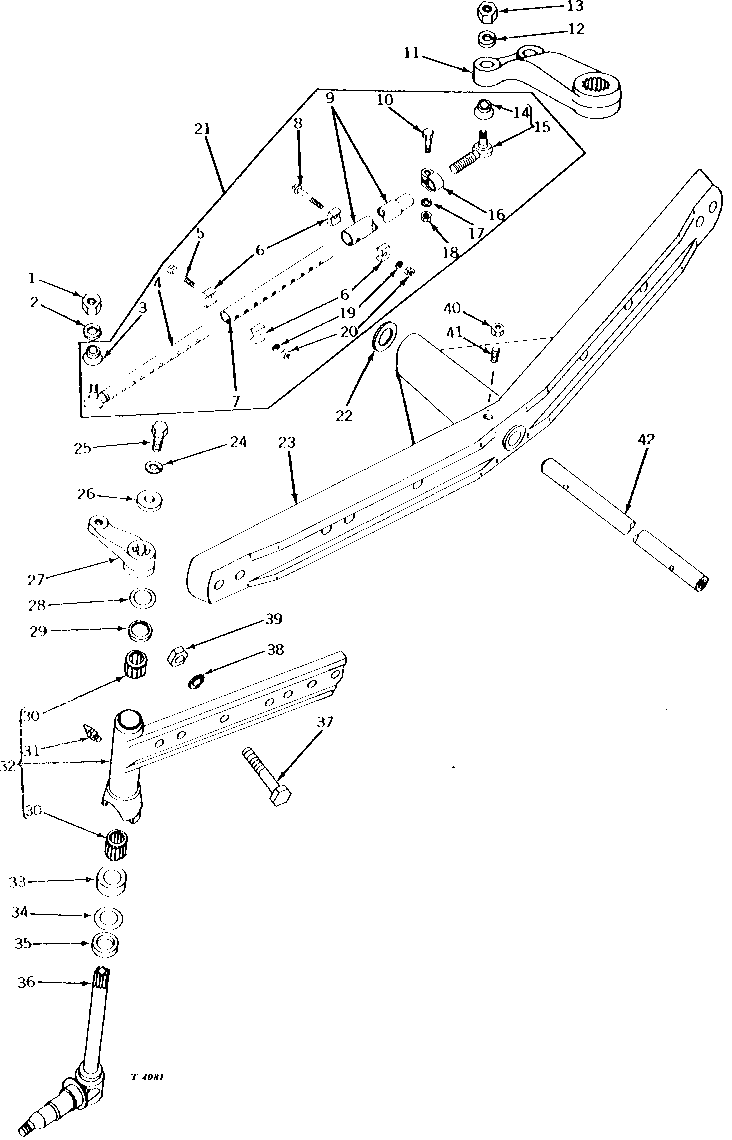

SWEPT-BACK ADJUSTABLE FRONT AXLE (ROW-CROP UTILITY AND SPECIAL ROW-CROP UTILITY) [02E22]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H888	2	Nut	9/16"
2	12H317	2	Lock Washer	9/16"
3	M648T	2	Dust Shield	(SUB FOR T15688)
4	AT13972	2	TIE ROD ASSEMBLY	-
5	19H1913	2	Cap Screw	5/16" X 2-1/4"
6	T15690	8	CLAMP	-
7	T15691	2	TUBE	-
8	19H1949	2	Cap Screw	5/16" X 2-1/2"
9	-	1	Part 9	(SUB T18057 AND T17700) (SUB FOR T15692)
9	T18057	2	TUBE	-
10	19H1765	2	Cap Screw	3/8" X 1-3/4"
10	19H3552	2	Cap Screw	5/16" X 1-1/2"
11	T15930	1	ARM	-
11	T19272	1	ARM	-
12	12H301	2	Lock Washer	1/2"
12	12H317	2	Lock Washer	9/16"
13	14H888	2	Nut	9/16"
13	14H865	2	Nut	1/2"
14	M648T	2	Dust Shield	-
15	AM496T	2	BALL JOINT	(SUB FOR AM498T)
15	AT15931	2	BALL JOINT	-
15	AT13971	2	BALL JOINT	-
16	M2300T	2	CLAMP	(SUB FOR T15689)
16	T17700	2	CLAMP	-
17	12H304	2	Lock Washer	3/8"
17	12H303	2	Lock Washer	5/16"
18	14H1076	2	Nut	3/8"
18	14H785	2	Nut	5/16"
19	12H303	4	Lock Washer	5/16"
20	14H785	4	Nut	5/16"
20	BP12232	4	LOCK NUT	(SUB FOR M376T)
21	AT16230	2	TIE ROD ASSEMBLY	(NLA)
21	AT16229	2	ROD	(SUB FOR AT14217) (NO LONGER AVAILABLE)
22	M4142T	1	WASHER	-
22	M4145T	1	SHIM	-
23	T15878	1	FRONT AXLE	(NO LONGER AVAILABLE)
23	T12801	1	AXLE	(NO LONGER AVAILABLE)
24	12H294	2	Lock Washer	5/8"
25	19H1756	2	Cap Screw	5/8" X 1-1/2"
26	M1006T	2	WASHER	-
27	T19404	1	LEVER	R.H. (NO LONGER AVAILABLE)
27	T19405	1	LEVER	L.H. (NO LONGER AVAILABLE)
27	T12803	1	LEVER	L.H.
27	T12802	1	LEVER	R.H. (NO LONGER AVAILABLE)
28	M1250T	1	SHIM	0.7MM (0.027")
29	M1518T	2	WASHER	-
30	JD8820	4	NEEDLE BEARING	-
31	JD7759	2	Lubrication Fitting	-
32	AT11748	1	END	(MARKED T12197) (NO LONGER AVAILABLE)
32	AT11925	1	END	(MARKED T12205) (NO LONGER AVAILABLE)
32	AT11752	1	END	(MARKED T12199) (NO LONGER AVAILABLE)
32	AT11926	1	END	(MARKED T12206) (NO LONGER AVAILABLE)
33	JD8407	2	THRUST BEARING	-
34	M2283T	2	WASHER	-
35	M2282T	2	WASHER	-
36	AT14437	2	SPINDLE	-
37	19H2628	4	Cap Screw	3/4" X 4-3/4"
37	19H2084	4	Cap Screw	3/4" X 4-1/2"
38	24H1392	4	Washer	25/32" X 1-3/8" X 0.120"
39	14H863	4	Nut	3/4"
39	14H794	4	Nut	3/4"
40	14H826	1	Nut	1/2"
41	22H992	1	Set Screw	1/2" X 2"
41	22H698	2	SET SCREW	1/2" X 1-1/4"
42	T12786	1	DOWEL PIN	-

SWEPT-BACK ADJUSTABLE FRONT AXLE (ROW-CROP UTILITY AND SPECIAL ROW-CROP UTILITY) [02E22]
