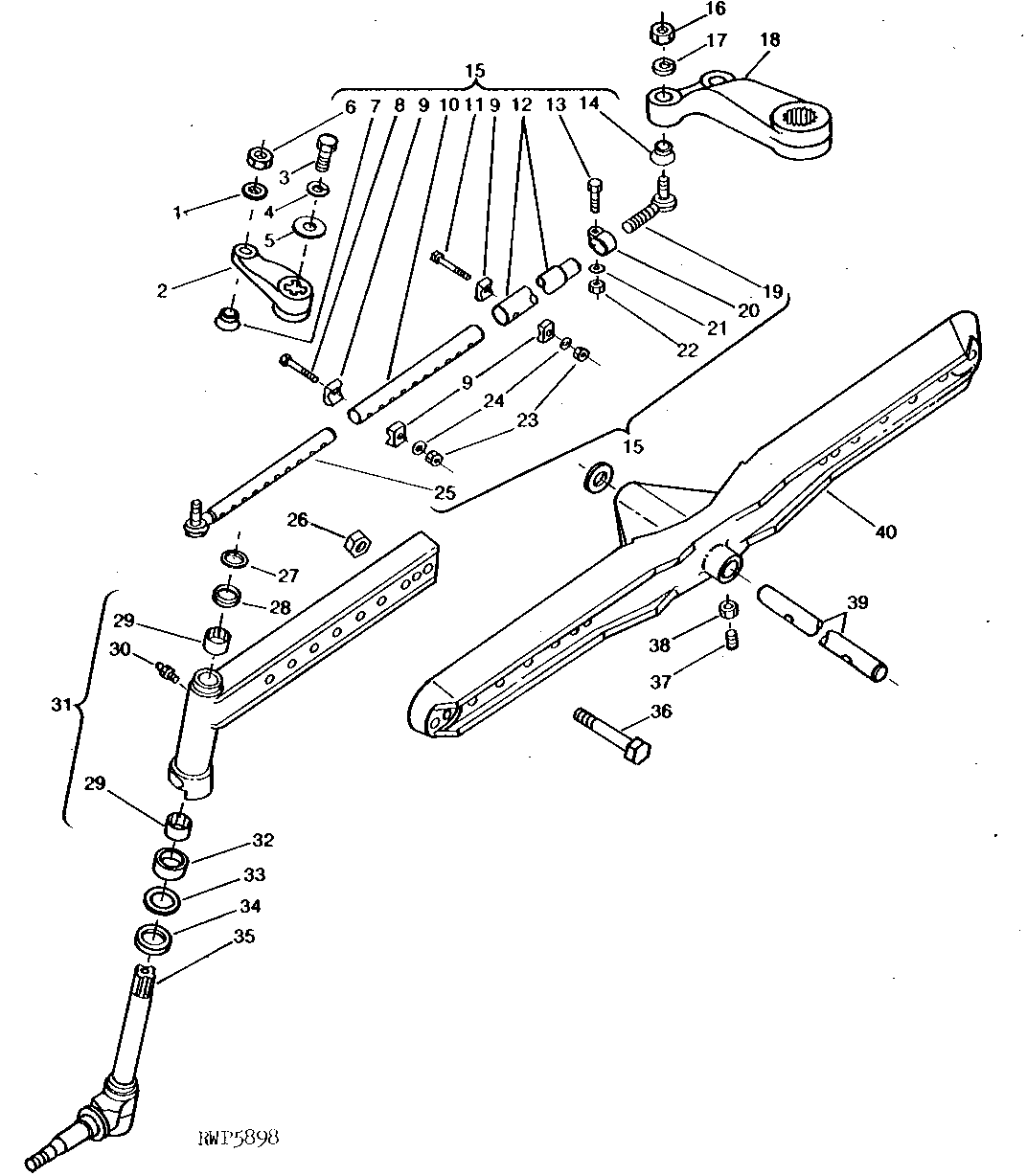

STRAIGHT ADJUSTABLE FRONT AXLE (1575-2235MM(62"-88")) (ROW-CROP UTILITY) [02E12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H317	2	Lock Washer	9/16"
2	T12782	1	LEVER	R.H. (NO LONGER AVAILABLE)
2	T12783	1	LEVER	L.H.
3	19H1756	2	Cap Screw	5/8" X 1-1/2"
4	12H294	2	Lock Washer	5/8"
5	M1006T	2	WASHER	-
6	14H888	2	Nut	9/16"
7	M648T	2	Dust Shield	-
8	19H1913	2	Cap Screw	5/16" X 2-1/4"
9	T15690	8	CLAMP	-
10	T18855	2	TUBE	-
11	19H1949	2	Cap Screw	5/16" X 2-1/2"
12	T17699	2	TUBE	-
13	19H3552	2	Cap Screw	5/16" X 1-1/2"
14	M648T	2	Dust Shield	-
15	AT15903	2	ROD	(NO LONGER AVAILABLE)
16	14H865	2	Nut	1/2"
16	14H888	2	Nut	9/16"
17	12H301	2	Lock Washer	1/2"
17	12H317	2	Lock Washer	9/16"
18	T15930	1	ARM	-
18	T19272	1	ARM	-
19	AT15931	2	BALL JOINT	-
19	AT13971	2	BALL JOINT	-
20	T17700	2	CLAMP	-
21	12H303	2	Lock Washer	5/16"
22	14H785	2	Nut	5/16"
23	BP12232	4	LOCK NUT	(SUB FOR M376T)
24	12H303	4	Lock Washer	5/16"
25	AT13972	2	TIE ROD ASSEMBLY	-
26	14H794	4	Nut	3/4"
27	M1250T	1	SHIM	0.7MM (0.027")
28	M1518T	2	WASHER	-
29	JD8820	4	NEEDLE BEARING	-
30	JD7759	2	Lubrication Fitting	-
31	AT11975	1	END	L.H.
31	AT11974	1	END	R.H. (NO LONGER AVAILABLE)
32	JD8407	2	THRUST BEARING	-
33	M2283T	2	WASHER	-
34	M2282T	2	WASHER	-
35	AT14437	2	SPINDLE	(MARKED T12761)
36	19H2084	4	Cap Screw	3/4" X 4-1/2"
37	22H698	2	SET SCREW	1/2" X 1-1/4"
38	14H826	2	Nut	1/2"
39	T12786	1	DOWEL PIN	-
40	T17687	1	AXLE	(NO LONGER AVAILABLE)
41	M4142T	1	WASHER	-
41	M4145T	1	SHIM	-

STRAIGHT ADJUSTABLE FRONT AXLE (1575-2235MM(62"-88")) (ROW-CROP UTILITY) [02E12]
