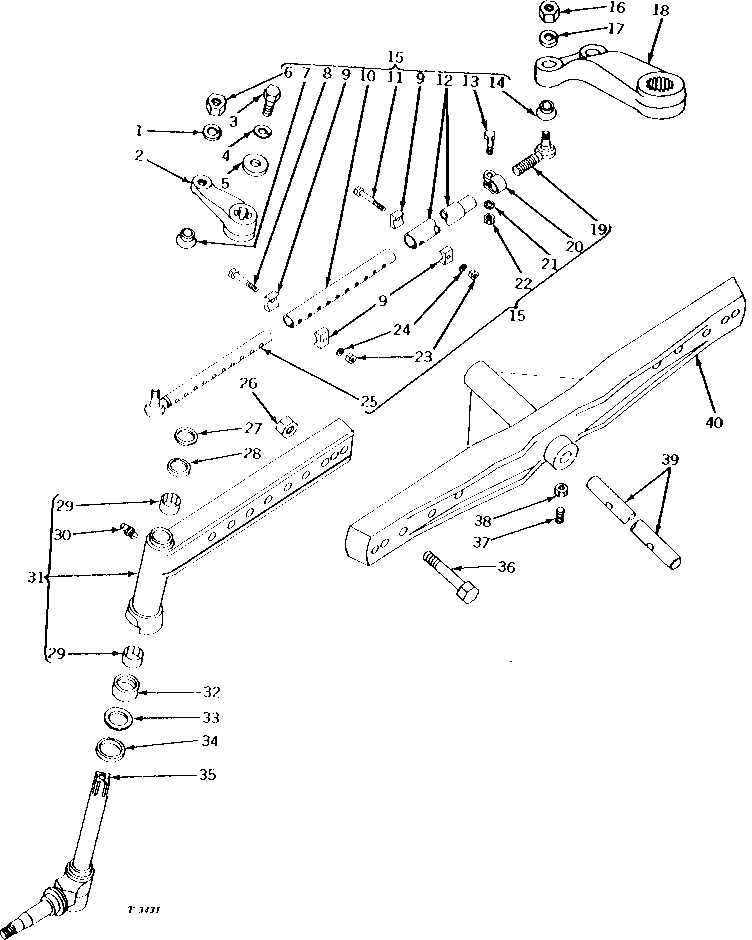

STRAIGHT ADJUSTABLE FRONT AXLE (1270-1880MM (50"-74")) (ROW-CROP UTILITY) [02E10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H317	2	Lock Washer	9/16"
2	T12782	1	LEVER	R.H.
2	T12783	1	LEVER	L.H. (NO LONGER AVAILABLE)
3	19H1756	2	Cap Screw	5/8" X 1-1/2"
4	12H294	2	Lock Washer	5/8"
5	M1006T	2	WASHER	-
6	14H888	2	Nut	9/16"
7	M648T	2	Dust Shield	(SUB FOR T15688)
8	19H1913	2	Cap Screw	5/16" X 2-1/4"
9	T15690	8	CLAMP	-
10	T15691	2	TUBE	-
11	19H1949	2	Cap Screw	5/16" X 2-1/2"
12	-	1	Part 13	(SUB T18057 AND T17700) (SUB FOR T15692)
12	T18057	2	TUBE	-
13	19H3552	2	Cap Screw	5/16" X 1-1/2"
13	19H1765	2	Cap Screw	3/8" X 1-3/4"
14	M648T	2	Dust Shield	-
15	AT16229	2	ROD	(SUB FOR AT14217) (NO LONGER AVAILABLE)
15	AT16230	2	TIE ROD ASSEMBLY	(NLA)
16	14H865	2	Nut	1/2"
16	14H888	2	Nut	9/16"
17	12H301	2	Lock Washer	1/2"
17	12H317	2	Lock Washer	9/16"
18	T15930	1	ARM	-
18	T19272	1	ARM	-
19	AM496T	2	BALL JOINT	(SUB FOR AM498T)
19	AT15931	2	BALL JOINT	-
19	AT13971	2	BALL JOINT	-
20	M2300T	2	CLAMP	(SUB FOR T15689)
20	T17700	2	CLAMP	-
21	12H304	2	Lock Washer	3/8"
21	12H303	2	Lock Washer	5/16"
22	14H1076	2	Nut	3/8"
22	14H785	2	Nut	5/16"
23	14H785	4	Nut	5/16"
23	BP12232	4	LOCK NUT	(SUB FOR M376T)
24	12H303	4	Lock Washer	5/16"
25	AT13972	2	TIE ROD ASSEMBLY	-
26	14H863	1	Nut	3/4", (SUB 14H794 AND 19H2084)
26	14H794	4	Nut	3/4"
27	M1250T	1	SHIM	0.7MM (0.027")
28	M1518T	2	WASHER	-
29	JD8820	4	NEEDLE BEARING	-
30	JD7759	2	Lubrication Fitting	-
31	AT11974	1	END	R.H. (NO LONGER AVAILABLE)
31	AT11975	1	END	L.H.
32	JD8407	2	THRUST BEARING	-
33	M2283T	2	WASHER	-
34	M2282T	2	WASHER	-
35	AT14437	2	SPINDLE	(MARKED T12761)
36	19H2084	1	Cap Screw	3/4" X 4-1/2", (ALSO ORDER 14H794)
36	19H2084	4	Cap Screw	3/4" X 4-1/2"
37	22H698	2	SET SCREW	1/2" X 1-1/4"
38	14H826	2	Nut	1/2"
39	T12786	1	DOWEL PIN	-
40	T12785	1	AXLE	(NO LONGER AVAILABLE)

STRAIGHT ADJUSTABLE FRONT AXLE (1270-1880MM (50"-74")) (ROW-CROP UTILITY) [02E10]
