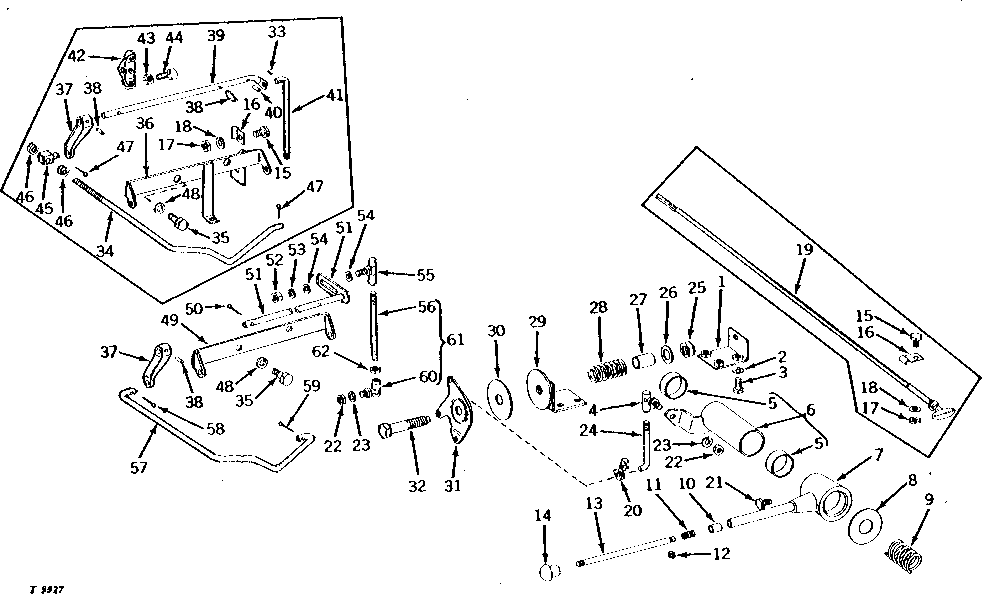

SPEED CONTROL AND ENGINE SHUT-OFF ASSEMBLY (DIESEL) [01D19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT13497	1	BRACKET	-
2	12H303	3	Lock Washer	5/16"
3	19H1900	3	Cap Screw	5/16" X 3/4"
4	T23688	1	BALL JOINT	(SUB FOR AL2096T)
5	T15174	2	BUSHING	-
6	AT13494	1	LINE	-
6	AT16545	1	TUBE	-
7	AT16822	1	LEVER	(SUB FOR AT13499)
8	24H1506	1	WASHER	1-11/32" X 2-7/8" X 0.060"
9	T15183	1	SPRING	-
10	-	1	Part 11	(SUB R38376) (SUB FOR T15180 OR R26952)
11	R28009	1	SPRING	-
12	R30828	1	SNAP RING	-
13	-	1	Part 14	(SUB R38376) (SUB FOR T15179)
14	R26670	1	KNOB	-
15	19H1936	2	Cap Screw	3/8" X 3/4"
16	T15272	2	CLAMP	-
17	14H1076	2	Nut	3/8"
18	12H304	2	Lock Washer	3/8"
19	AT13559	1	PUSH PULL CABLE	-
20	R26491	1	CLIP	-
21	R28007	1	BOLT	-
22	14H860	2	Nut	1/4"
23	12H302	2	Lock Washer	1/4"
24	T15181	1	BOLT	-
25	M2023T	1	Lock Nut	-
26	24H1378	1	Washer	11/16" X 1-15/32" X 0.134"
27	T15115	1	BUSHING	-
28	M1858T	1	SPRING	-
29	AT13496	1	BRACKET	-
30	M2097T	1	WASHER	-
31	T18371	1	LEVER	(SUB FOR T15177)
32	T15114	1	BOLT	-
33	11M7077	2	Cotter Pin	0.063" X 0.984"
33	11M7077	6	Cotter Pin	0.063" X 0.984"
34	-	1	Part 36	(SUB T16731, T16730 AND (2) 14H611) (SUB FOR T15301 OR T16308)
34	T16731	1	ROD	-
35	19H2284	2	Cap Screw	3/8" X 7/8"
36	AT14819	1	BRACKET	(SUB FOR AT13746)
37	T15305	1	LEVER	-
38	25H42	2	GROOVE PIN	1/8" X 3/4"
38	25H42	2	GROOVE PIN	1/8" X 3/4"
39	T15303	1	SHAFT	-
40	34H245	1	Spring Pin	1/8" X 5/8"
41	T15302	1	BOLT	-
42	T15915	1	STOP	-
43	14H649	2	Nut	1/4"
44	19H2323	2	CAP SCREW	1/4" X 7/8"
45	T16730	1	SWIVEL	-
46	14H611	2	Nut	5/16"
47	11M7079	3	Cotter Pin	0.098" X 0.472"
48	12H304	2	Lock Washer	3/8"
49	T15304	1	BRACKET	-
50	11M7081	1	Cotter Pin	0.098" X 0.787"
51	AT16471	1	SHAFT	-
52	14H860	1	Nut	1/4"
53	12H302	1	Lock Washer	1/4"
54	24H1287	2	Washer	9/32" X 5/8" X 0.065"
55	T23688	1	BALL JOINT	(SUB FOR AL2096T)
56	T18997	1	STUD	-
56	-	1	Part 60	(SUB AT17268) (SUB FOR T18326)
57	T18616	1	ROD	-
58	11M7077	2	Cotter Pin	0.063" X 0.984"
59	11M7079	2	Cotter Pin	0.098" X 0.472"
60	-	1	Part 65	(SUB FOR AL2096T)
60	AT17267	1	BALL JOINT	-
61	AT17268	1	ROD	-
62	14H860	1	Nut	1/4"
62	14H1025	1	Nut	1/4"
