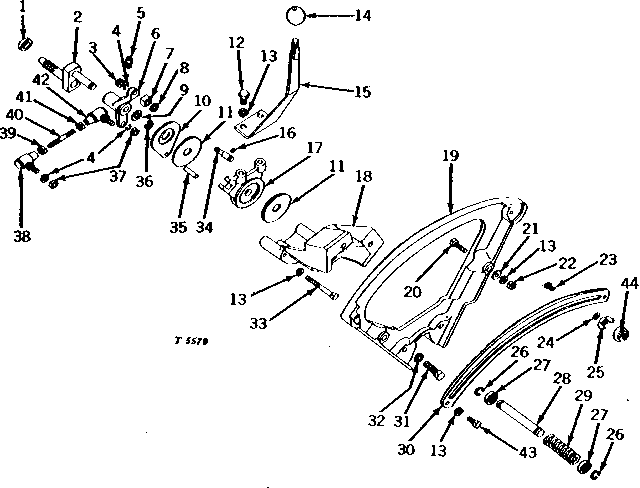

SINGLE HYDRAULIC QUADRANT ASSEMBLY (UTILITY AND ORCHARD) [02C16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT11952	2	SEAL	-
2	AM2170T	1	SHAFT	(NO LONGER AVAILABLE)
3	14H1076	1	Nut	3/8"
4	12H304	3	Lock Washer	3/8"
5	JD7797	1	Lubrication Fitting	-
6	M2408T	1	LEVER	(NO LONGER AVAILABLE)
7	M2159T	1	BUSHING	(NO LONGER AVAILABLE)
8	T19561	1	Washer	(SUB FOR L853T)
9	M1304T	1	WASHER	-
10	M2181T	1	PLATE	(NO LONGER AVAILABLE)
11	M2097T	2	WASHER	-
12	19H1813	2	CAP SCREW	5/16" X 5/8"
13	12H303	9	Lock Washer	5/16"
14	M526T	1	KNOB	-
15	AM2172T	1	LEVER	(UT)
15	AT15528	1	LEVER	(OR) (NO LONGER AVAILABLE)
16	M331T	1	SNAP RING	-
17	M2412T	1	ANCHOR	(NO LONGER AVAILABLE)
18	M2478T	1	HUB	(NO LONGER AVAILABLE)
19	M2409T	1	SECTOR	(NO LONGER AVAILABLE)
20	19H1849	1	Cap Screw	5/16" X 1-1/4"
21	24H1685	4	Washer	11/32" X 47/64" X 0.083"
22	14H785	2	Nut	5/16"
23	M1211T	1	STOP	-
24	M1977T	1	WASHER	-
25	14H819	1	Wing Nut	5/16", (UT)
26	M2095T	2	SNAP RING	-
27	M2170T	2	BUSHING	-
28	M1997T	1	PIN FASTENER	(NO LONGER AVAILABLE)
29	M4430T	1	SPRING	-
30	-	1	Part 31	(UT) (ORDER M2410T)
30	AT15529	1	PLATE	(OR) (NO LONGER AVAILABLE)
31	19H1978	2	Cap Screw	7/16" X 1-1/2"
32	12H293	2	Lock Washer	7/16"
33	19H1907	3	Cap Screw	5/16" X 2-3/4"
34	M2000T	1	PIN FASTENER	(NO LONGER AVAILABLE)
35	34H329	1	Spring Pin	5/16" X 1-1/4"
36	M1306T	1	SNAP RING	-
37	14H1080	2	Nut	3/8"
38	AT25884	1	BALL JOINT	(SUB FOR AM1925T)
39	14H769	1	NUT	3/8"
40	M2420T	1	STUD	(NO LONGER AVAILABLE)
41	14H774	1	Nut	3/8"
42	AM1924T	1	Ball Joint	-
43	19H1813	2	CAP SCREW	5/16" X 5/8", (UT)
43	19H1905	2	Cap Screw	5/16" X 1", (OR)
44	T17409	1	KNOB	(OR)
