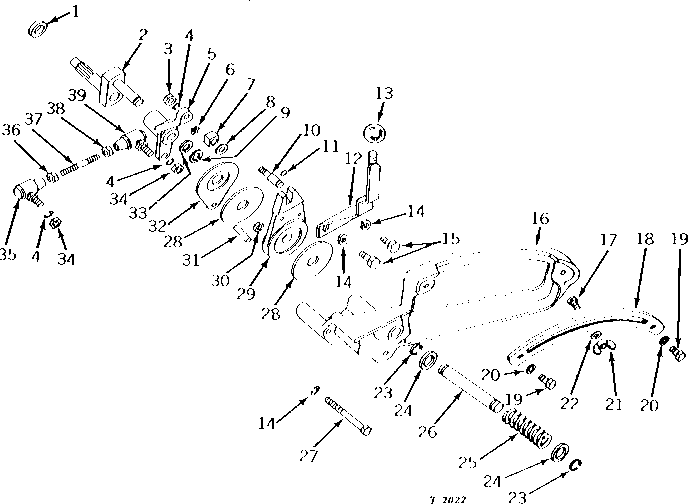

SINGLE HYDRAULIC QUADRANT ASSEMBLY (SINGLE ROW-CROP) [02C15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT11952	1	SEAL	-
2	AM2031T	1	SHAFT	(NO LONGER AVAILABLE)
3	14H1076	1	Nut	3/8"
4	12H304	3	Lock Washer	3/8"
5	M1828T	1	LEVER	-
6	JD7797	1	Lubrication Fitting	-
7	M2159T	1	BUSHING	(NO LONGER AVAILABLE)
8	T19561	1	Washer	(SUB FOR L853T)
9	M1306T	1	SNAP RING	-
10	M2000T	1	PIN FASTENER	(NO LONGER AVAILABLE)
11	M331T	1	SNAP RING	-
12	AT13255	1	LEVER	(NO LONGER AVAILABLE)
13	M526T	1	KNOB	-
14	12H303	5	Lock Washer	5/16"
15	19H1900	2	Cap Screw	5/16" X 3/4"
16	T14859	1	QUADRANT	(NO LONGER AVAILABLE)
17	M1211T	1	STOP	-
18	M2101T	1	PLATE	-
19	19H1813	2	CAP SCREW	5/16" X 5/8"
20	12H303	2	Lock Washer	5/16"
21	14H819	1	Wing Nut	5/16"
22	M1977T	1	WASHER	-
23	M2095T	2	SNAP RING	-
24	M2170T	2	BUSHING	-
25	M4430T	1	SPRING	-
26	M1997T	1	PIN FASTENER	(NO LONGER AVAILABLE)
27	19H1907	3	Cap Screw	5/16" X 2-3/4"
28	M2097T	2	WASHER	-
29	T14860	1	ANCHOR	(NO LONGER AVAILABLE)
30	14H785	1	Nut	5/16"
31	34H329	1	Spring Pin	5/16" X 1-1/4"
32	M2181T	1	PLATE	(NO LONGER AVAILABLE)
33	M1304T	1	WASHER	-
34	14H1080	2	Nut	3/8"
35	AT25884	1	BALL JOINT	(SUB FOR AM1925T)
36	14H769	1	NUT	3/8"
37	M2141T	1	STUD	NO LONGER AVAILABLE)
38	14H774	1	Nut	3/8"
39	AM1924T	1	Ball Joint	-

SINGLE HYDRAULIC QUADRANT ASSEMBLY (SINGLE ROW-CROP) [02C15]
