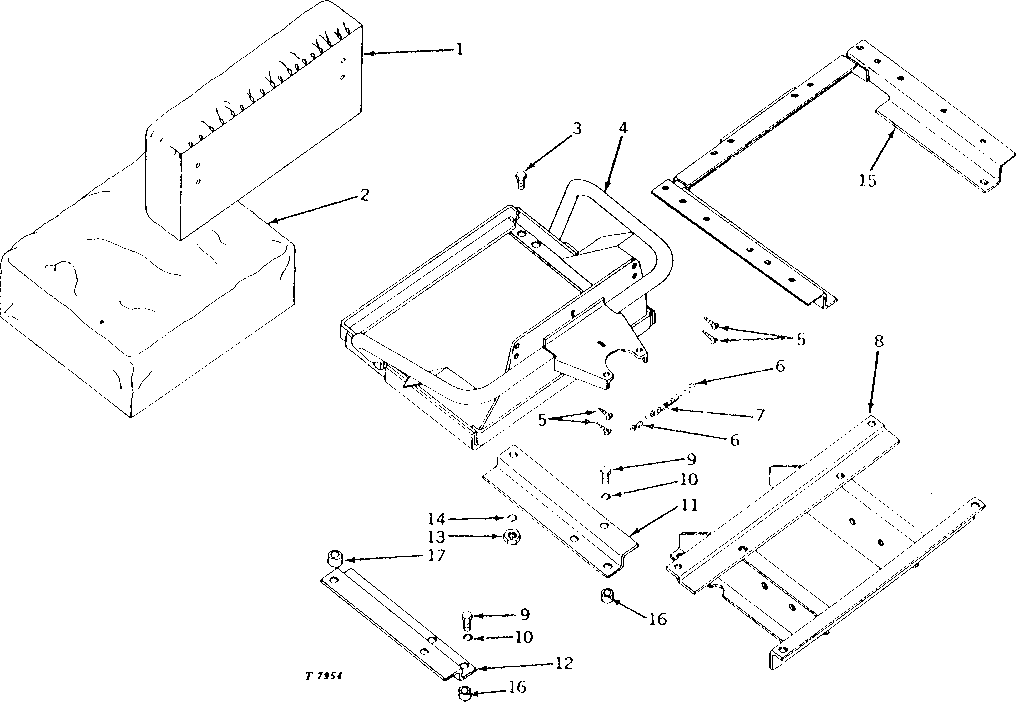

REGULAR SEAT ASSEMBLY (ORCHARD, ROW-CROP UTILITY, SPECIAL ROW-CROP UTILITY AND ROW-CROP) [02F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT13600	1	CUSHION	(BLACK)
1	AT13223	1	CUSHION	(YELLOW)
2	AT13599	1	CUSHION	(BLACK)
3	19H1900	4	Cap Screw	5/16" X 3/4"
3	19H1875	4	Cap Screw	(C) 5/16" X 1-3/4"
4	AT13769	1	FRAME	(OR, UT) (NO LONGER AVAILABLE)
4	AT13598	1	FRAME	(B) (RC, RU, RUS) (NO LONGER AVAILABLE)
4	AT14161	1	FRAME	(A) (RC, RU, RUS) (NO LONGER AVAILABLE)
5	37H19	4	Screw	NO. 10 X 1", (SUB FOR M2474T)
5	21H1148	4	Screw	0.190" X 3/4"
6	M2517T	2	Hook	-
7	AM2286T	1	LINK CHAIN	-
8	AT14337	1	SUPPORT	(B) (RC, RU, RUS) (NO LONGER AVAILABLE)
8	AT13770	1	SUPPORT	(B) (OR, UT) (NO LONGER AVAILABLE)
9	19H1936	4	Cap Screw	(A) 3/8" X 3/4", (RC, RU)
9	19H1936	4	Cap Screw	(A) 3/8" X 3/4", (SUB (4) 19H1731 AND (4) R21483) (OR, UT)
9	19H1731	4	Cap Screw	(A) 3/8" X 1", (OR, UT)
9	19H1792	4	Cap Screw	(B) 1/2" X 1"
10	12H304	4	Lock Washer	(A) 3/8"
10	12H301	4	Lock Washer	(B) 1/2"
11	T18460	1	BRACKET	(A) (OR, UT) (SUB FOR T14806) (NO LONGER AVAILABLE)
12	T18461	1	BRACKET	(A) (OR, UT) (SUB FOR T14807) (NO LONGER AVAILABLE)
13	14H785	4	Nut	5/16"
14	12H303	4	Lock Washer	5/16"
15	AT14144	1	BRACKET	(A) (RC, RU, RUS) (NO LONGER AVAILABLE)
16	R21483	4	WASHER	(SUB FOR T17668)
17	T16790	4	Spacer	(C)

REGULAR SEAT ASSEMBLY (ORCHARD, ROW-CROP UTILITY, SPECIAL ROW-CROP UTILITY AND ROW-CROP) [02F24]
