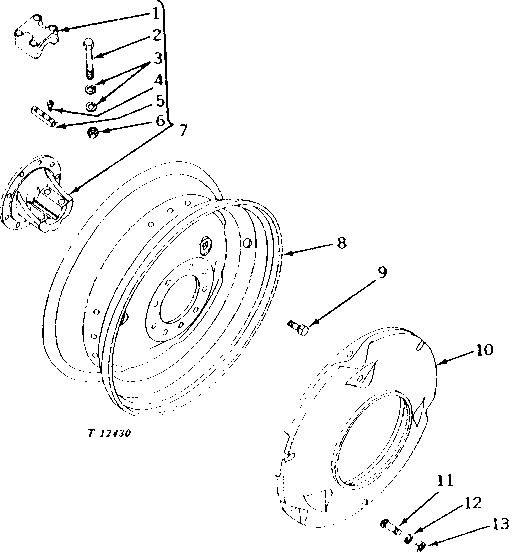

REGULAR REAR WHEELS AND WHEEL WEIGHTS (ROW-CROP UTILITY, SPECIAL ROW-CROP UTILITY, AND ROW-CROP) [02F06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(ORDER T10172)
2	T24475	4	CAP SCREW	(SUB FOR M2042T AND T14943)
3	R73290	8	Washer	(SUB FOR T497T)
4	M511T	2	SCREW	-
5	M2651T	2	KEY	-
6	14H1039	4	Nut	5/8"
7	AT10094	1	HUB	(MARKED T10171) (NO LONGER AVAILABLE)
8	JD3007	1	RIM	(RU, RUS) (13.6-28" TIRE)
8	JD3021	1	RIM	(RU, RUS) (12.4-28" TIRE) (SUB FOR JD3020) (NO LONGER AVAILABLE)
8	JD3015	1	RIM	(RU) (12.4 - 28" TIRE) (NO LONGER AVAILABLE)
8	JD3012	1	RIM	(RC) (12.4 - 36" TIRE) (NO LONGER AVAILABLE)
9	JD16	9	Wheel Bolt	-
10	M3580T	2	WEIGHT	68KG (150 LBS.) (RU, RUS) (SUB FOR AT15589) (1ST WEIGHT TO WHEEL) (NO LONGER AVAILABLE)
10	AT15585	1	WEIGHT	54KG (120 LBS.) (RU, RUS) (CONSISTS OF (2) T21689 AND AA4029R) (NO LONGER AVAILABLE)
10	T21689	2	Weight Kit	68KG (150 LBS.) (RU, RUS) (NLA)
10	AT15585	1	WEIGHT	54KG (120 LBS.) (RC) (CONSISTS OF (2) T21689 AND AA4029R) (NO LONGER AVAILABLE)
10	T21689	2	Weight Kit	(RC) 68KG (150 LBS.) (NLA)
10	M3580T	2	WEIGHT	68KB (150 LBS.) (RU, RUS) (SUB FOR AM3280T AND AT15590) (ADDITIONAL WEIGHTS) (NO LONGER AVAILABLE)
11	03H1781	3	BOLT	3/4" X 3-1/2", (RU, RUS)
11	R28493	3	Bolt	(RC)
12	12H236	3	Lock Washer	3/4", (RU, RUS)
12	12H294	3	Lock Washer	5/8", (RC)
13	14H794	3	Nut	3/4", (RU, RUS)
13	14H1039	3	Nut	5/8" (RC)

REGULAR REAR WHEELS AND WHEEL WEIGHTS (ROW-CROP UTILITY, SPECIAL ROW-CROP UTILITY, AND ROW-CROP) [02F06]
