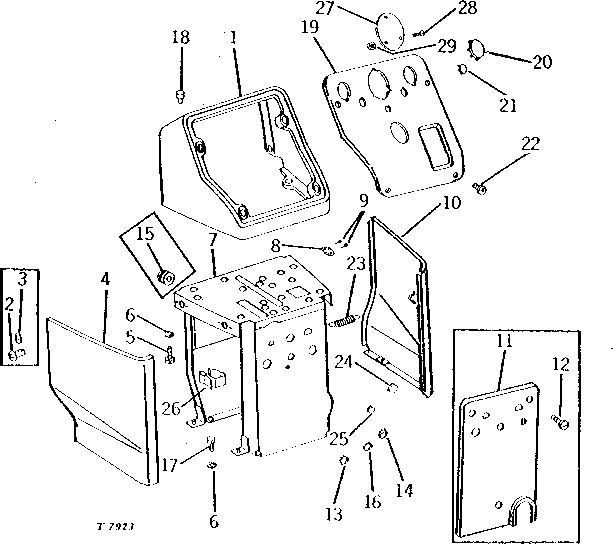

REAR PANEL, COWL, AND INSTRUMENT PANEL [02F16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T14492	1	COWL	-
2	M315T	4	PIN FASTENER	-
3	M316T	4	Groove Pin	-
4	-	1	Part 4	(SUB AT16331, AT16330 AND T18162) (SUB FOR AT13035)
4	-	1	Part 5	(SUB AT16331, AT16330 AND T18162) (SUB FOR AT15499)
4	AT16331	1	PANEL	-
5	19H1731	4	Cap Screw	3/8" X 1"
6	12H304	8	Lock Washer	3/8"
7	-	1	Part 9	(SUB AT16800, AT16330, AT16331 AND T18162) (SUB FOR AT13039)
7	AT16800	1	SUPPORT	(NO LONGER AVAILABLE)
8	AM635T	4	STUD	-
9	16H87	8	RIVET	1/8" X 1/4"
10	-	1	Part 13	(SUB AT16330, AT16331 AND T18162) (SUB FOR AT13034)
10	AT16330	1	PANEL	-
11	T14778	1	PANEL	(NO LONGER AVAILABLE)
12	AT13036	3	SCREW	(NO LONGER AVAILABLE)
13	M2291T	1	PLUG	-
14	H84660	1	PLUG	(LIGHT SWITCH) (SUB FOR T11708 OR P48093)
15	M1916T	1	Grommet	-
16	R44720	1	Plug	(FUSE HOLDER) (SUB FOR T15964)
17	19H1936	4	Cap Screw	3/8" X 3/4"
18	T14083	4	Bumper	-
19	AT13365	1	INSTRUMENT PANEL	(NO LONGER AVAILABLE)
19	AT15055	1	INSTRUMENT PANEL	(NO LONGER AVAILABLE)
20	T14500	1	PLUG	(FUEL GAUGE)
21	M2047T	1	PLUG	(DASH LAMP)
22	21H1144	4	SCREW	1/4" X 1/2"
23	T18162	1	SPRING	-
24	T16738	1	PLUG	(DIESEL FUEL PRIMER)
25	T15005	1	Plug	(DIESEL ENGINE SHUT-OFF)
26	M632T	1	CLIP	-
27	M1519T	1	COVER	(RUS) (NO LONGER AVAILABLE)
28	21H972	2	SCREW	0.164" X 5/16", (RUS)
28	21H1158	2	Screw	0.164" X 1/2", (RUS)
29	14H605	3	Nut	0.164", (RUS)

REAR PANEL, COWL, AND INSTRUMENT PANEL [02F16]
