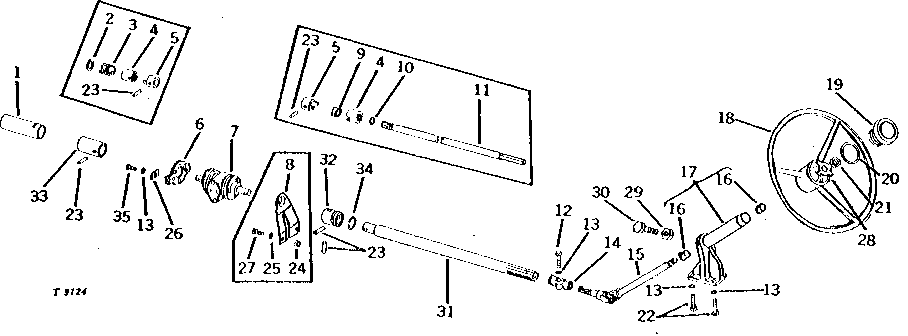

POWER STEERING SHAFT ASSEMBLY [02A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T15324	1	TUBE	(NLA)
2	L308T	1	WASHER	-
3	T17509	1	SPRING	(SUB FOR L968C)
4	T15328	2	DRIVE	-
5	T18528	2	COUPLING	(SUB FOR T15327)
6	T15325	1	SUPPORT	-
7	AT13128	1	VALVE	(SUB AT16688 AND (2) T18528)
7	AT16688	1	FLOW CONTROL HYD. VALVE	-
8	T15331	1	SUPPORT	-
9	T15752	1	DOWEL PIN	-
10	L357T	1	SNAP RING	-
11	T15332	1	STEERING SHAFT	(NLA)
12	19H3552	1	Cap Screw	5/16" X 1-1/2" HS, SAE 8
13	12H303	7	Lock Washer	5/16"
14	T14598	1	SPLINED COUPLING	-
15	AT13095	1	UNIVERSAL JOINT	-
16	L4694T	2	Bushing	-
17	AT16473	1	SUPPORT	(A) (NO LONGER AVAILABLE)
17	AT16549	1	SUPPORT	(GASOLINE) (SUB FOR AT13367)
17	AT16549	1	SUPPORT	(A) (SUB FOR AT13367)
18	AR26625	1	STEERING WHEEL	-
19	AL155227	1	Cover	(SUB FOR R26673, R34324, R47998 OR AL118173)
20	B3690R	1	O-Ring	-
21	T13630	1	Nut	-
22	19H1900	4	Cap Screw	5/16" X 3/4"
23	T15329	2	PIN	-
23	T15329	3	PIN	-
24	14H785	2	Nut	5/16"
25	24H1685	2	Washer	11/32" X 47/64" X 0.083"
26	T15326	2	STRAP	-
27	19H2127	2	Cap Screw	5/16" X 7/8"
28	T17148	1	Lock Washer	(SUB R259492)
29	14H1076	1	Nut	(A) 3/8"
30	19H1732	1	Cap Screw	(A) 3/8" X 1-1/4"
31	T19614	1	STEERING SHAFT	-
32	T19613	1	COUPLING	-
33	T19612	1	DRIVE	-
34	M875T	1	SNAP RING	-
35	19H2127	2	Cap Screw	5/16" X 7/8"
