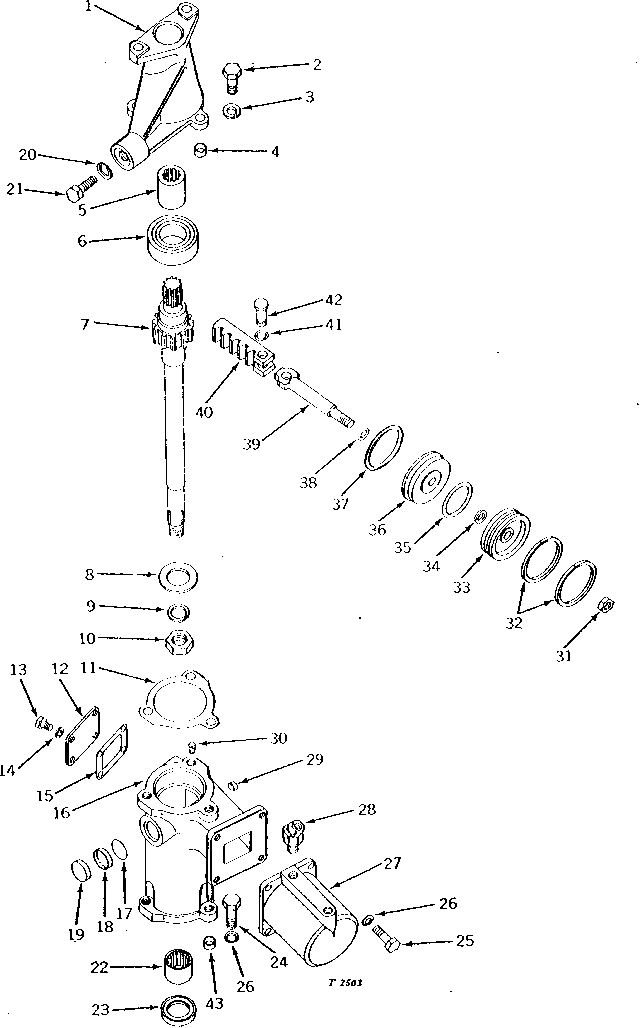

POWER STEERING RACK AND PINION ASSEMBLY [02B01]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T17100	1	SUPPORT	(A) (NO LONGER AVAILABLE)
1	-	1	Part 1	(SUB T17100, T17095, 19H1875, 12H303, 14H785 AND (2) 24H1122) (SUB FOR T15322)
1	T18870	1	SUPPORT	(B)
2	19H1978	3	Cap Screw	7/16" X 1-1/2"
3	12H293	3	Lock Washer	7/16"
4	T16992	1	WASHER	(SUB FOR M827T) (NO LONGER AVAILABLE)
5	M4246T	1	SPLINED COUPLING	-
6	JD9345	1	Ball Bearing	(A)
6	JD9344	1	Ball Bearing	(B)
7	T15321	1	GEAR	(A)
7	T18869	1	PINION	(B)
8	M4231T	1	WASHER	-
9	12H245	1	Lock Washer	(A) 7/8"
10	M2837T	1	NUT	(A)
11	T15323	1	GASKET	-
12	M4242T	1	COVER	(NO LONGER AVAILABLE)
13	19H1919	4	Cap Screw	1/4" X 5/8"
14	12H302	4	Lock Washer	1/4"
15	M4243T	1	GASKET	-
16	AT13591	1	HOUSING	(A) (MARKED T15320) (NO LONGER AVAILABLE)
16	AT17102	1	HOUSING	(B) (MARKED T18868) (NO LONGER AVAILABLE)
17	M4228T	1	SOLID SHIM	0.05MM (.002")
17	M4229T	1	SOLID SHIM	0.13MM (.005")
17	M4230T	1	DISK	0.25MM (.010")
18	M4227T	1	DOWEL PIN	-
19	M4225T	1	PLUG	-
20	12H236	1	Lock Washer	3/4"
21	19H1768	1	Cap Screw	3/4" X 2"
22	JD8820	1	NEEDLE BEARING	-
23	T22069	1	SEAL	(SUB FOR AM253T)
24	19H1800	4	Cap Screw	(A) 3/8" X 1-1/2"
24	19H1831	4	Cap Screw	(B) 1/2" X 2"
25	19H3219	4	Cap Screw	3/8" X 1-3/8"
26	12H304	8	Lock Washer	(A) 3/8"
26	12H304	4	Lock Washer	(B) 3/8"
26	12H301	4	Lock Washer	(B) 1/2"
27	M4241T	1	CYLINDER	-
28	AM3762T	2	Elbow Fitting	45°
29	M4224T	1	PLUG	-
30	15H623	1	Pipe Plug	3/8"
31	M4247T	1	LOCK NUT	-
32	M4240T	2	PISTON RING	-
33	M4239T	1	PISTON	-
34	T20168	1	Washer	(SUB FOR M2834T)
35	M4237T	1	O-Ring	-
36	M4235T	1	CYLINDER HEAD	-
37	M4236T	1	O-Ring	-
38	A3190R	1	O-Ring	(SUB FOR M4238T AND P48347)
39	M4233T	1	ROD	-
40	M4232T	1	RACK	-
41	M331T	1	SNAP RING	-
42	M4234T	1	PIN FASTENER	-
43	T16991	2	WASHER	(A) (SUB FOR M2152T)
43	T18866	1	BUSHING	(B) (NO LONGER AVAILABLE)

POWER STEERING RACK AND PINION ASSEMBLY [02B01]
