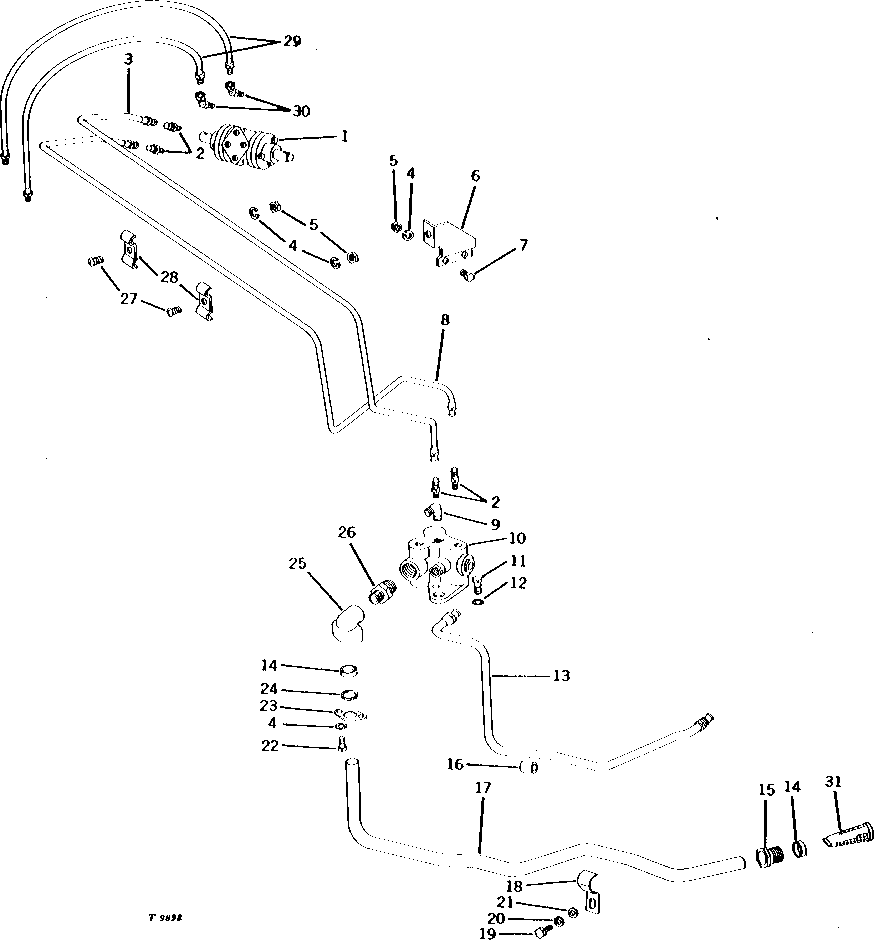

POWER STEERING OIL LINES (TRACTOR SERIAL NO, 024695- ) [02B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT16688	1	FLOW CONTROL HYD. VALVE	-
1	AT13128	1	VALVE	(SUB AT16688 AND (2) T18528)
2	A4925R	4	Adapter Fitting	-
3	AT21149	1	OIL LINE	(SUB FOR AT15498)
4	12H302	6	Lock Washer	1/4"
5	14H786	4	Nut	1/4"
6	T15333	1	BRACKET	(NO LONGER AVAILABLE)
7	19H1919	2	Cap Screw	1/4" X 5/8"
8	AT21149	1	OIL LINE	(SUB FOR AT15497)
9	T14967	1	FITTING	-
10	AT181866	1	PUMP	(SUB FOR AT15509)
11	19H2552	2	CAP SCREW	3/8" X 1-1/8"
12	12H304	2	Lock Washer	3/8"
13	AT15503	1	LINE	(A) (OR, RS, UT)
13	AT15511	1	LINE	(B) (RS) (NO LONGER AVAILABLE)
13	AT15507	1	LINE	(C) (RU)
13	AT16533	1	LINE	(C) (RC, RU)
14	M3246T	2	BUSHING	-
15	M3249T	1	NUT	-
16	M2395T	1	BUSHING	-
17	T17358	1	LINE	(A) (OR, RS, UT) (NO LONGER AVAILABLE)
17	T18357	1	LINE	(C) (RC,RU) (NO LONGER AVAILABLE)
17	T17361	1	LINE	(B) (RS) (NO LONGER AVAILABLE)
17	T17363	1	LINE	(C) (RU) (NO LONGER AVAILABLE)
18	-	1	Part 25	(SUB T23706 AND 37H57) (SUB FOR T17359)
18	T23706	1	CLAMP	(NO LONGER AVAILABLE)
19	19H1900	1	Cap Screw	5/16" X 3/4"
19	-	1	Part 28	(SUB T23706 AND 37H57) (SUB FOR T19402)
19	37H57	1	Screw	5/16" X 3/4"
20	12H303	1	Lock Washer	5/16"
21	24H1685	1	Washer	11/32" X 47/64" X 0.083"
22	19H1919	2	Cap Screw	1/4" X 5/8"
23	M3250T	1	FLANGE	-
24	M3247T	1	WASHER	-
25	T17357	1	ELBOW FITTING	(NO LONGER AVAILABLE)
26	29H658	1	Threaded Nipple	3/4" X 2"
27	21H1023	2	SCREW	1/4" X 5/8"
28	T12744	2	CLAMP	(NO LONGER AVAILABLE)
29	AT17006	2	HYDRAULIC HOSE	(SUB FOR AP22690)
30	AM3762T	2	Elbow Fitting	45°
31	T19868	1	STRAINER	-

POWER STEERING OIL LINES (TRACTOR SERIAL NO, 024695- ) [02B05]

Нет текстового описания
