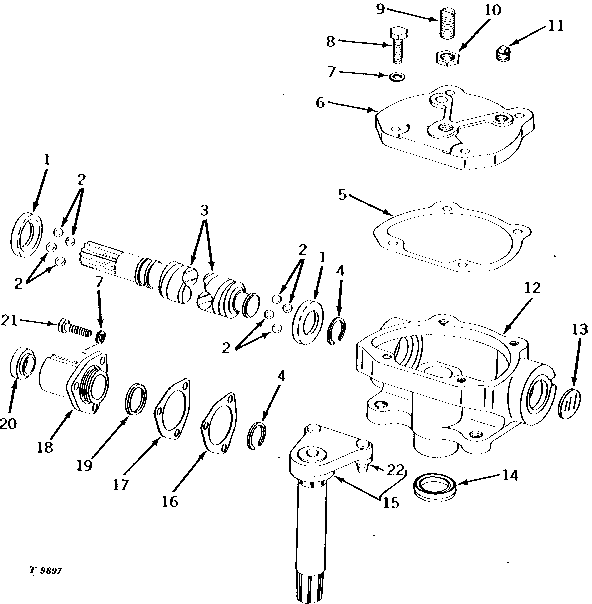

POWER STEERING GEAR ASSEMBLY [02A24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT25515	1	KIT	(SUB FOR M932T)
2	R26552	22	Ball	-
3	AT14885	1	SHAFT	L.H. (RU) (NLA)
3	AT17081	1	SHAFT	R.H. (RS, UT, OR)
3	AT17082	1	SHAFT	R.H. (RS, UT, OR)
3	AT17082	1	SHAFT	L.H. (RU, RC)
3	AT14886	1	SHAFT	R.H. (OR, RS, UT)
4	M933T	2	SNAP RING	-
5	P47826	1	GASKET	-
6	T16640	1	COVER	-
7	M728T	7	Washer	-
8	19H2705	1	Cap Screw	5/16" X 1"
9	T16651	1	SET SCREW	-
10	R30252	1	Nut	-
11	15H604	1	Pipe Plug	1/4"
12	AT14882	1	HOUSING	(NO LONGER AVAILABLE)
12	AT17079	1	HOUSING	(NO LONGER AVAILABLE)
13	30H17	1	Plug	1-1/4"
14	AM906T	1	SEAL	-
15	AT21417	1	LEVER	(RC) (SUB FOR AT17295)
15	AT14888	1	SHAFT	(RU, RS, UT, OR)
16	P47823	1	SHIM	0.05MM (.002")
16	P47824	1	SHIM	0.08MM (.003")
16	P47825	1	SHIM	0.25MM (.010")
17	T16652	2	SHIM	-
18	AT17012	1	COVER	(SUB FOR AT14883)
18	AT17080	1	COVER	-
19	T18857	1	O-RING	-
20	-	1	Part 29	(SUB AT17012) (SUB FOR AT14884)
20	AT17013	1	SEAL	(ALSO REPAIRS IF AT17012 UPPER COVER HAS BEEN INSTALLED)
21	T16639	3	CAP SCREW	-
22	AM1515T	2	STUD	(SUB FOR AM1514T)
..	AT17008	1	STEERING GEAR	(OR, RS, UT) (SUB FOR AT13232) (NO LONGER AVAILABLE)
..	AT17009	1	STEERING GEAR	(OR, RS, UT) (NO LONGER AVAILABLE)
..	AT17101	1	STEERING GEAR	(RC) (NO LONGER AVAILABLE)
..	AT17009	1	STEERING GEAR	(RU) (SUB FOR AT14206) (NO LONGER AVAILABLE)
