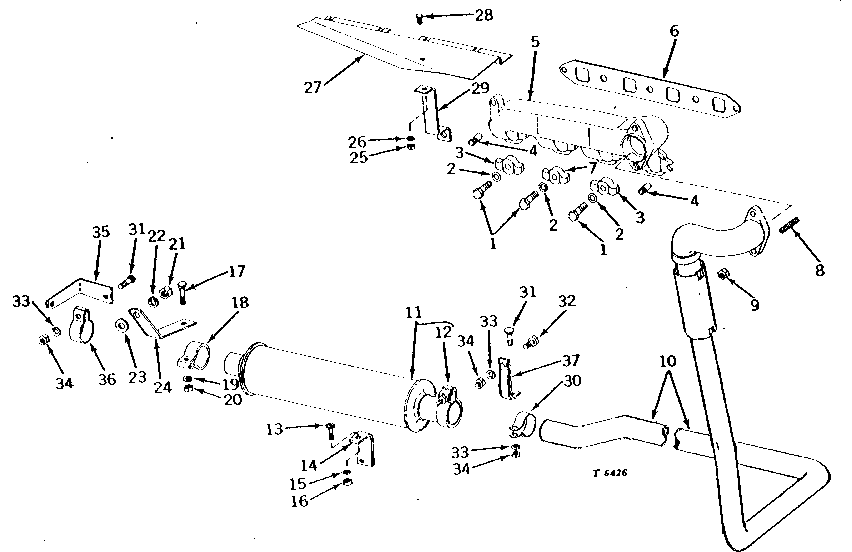

MUFFLER AND MANIFOLD (DIESEL) (WHEN EQUIPPED WITH REAR EXHAUST) [01C09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2454	3	Cap Screw	7/16" X 1-5/8"
2	24M7044	3	Washer	13 X 20 X 2 MM
3	T13378	2	CLAMP	-
4	T11213	2	DOWEL PIN	(NO LONGER AVAILABLE)
5	T12617	1	EXHAUST MANIFOLD	(NO LONGER AVAILABLE)
6	T13376	1	GASKET	-
7	T13377	1	CLAMP	-
8	M1202T	2	STUD	-
9	L852T	2	NUT	-
10	AT15520	1	ELBOW FITTING	(A) (NO LONGER AVAILABLE)
10	AT15987	1	ELBOW FITTING	(B)
11	AT12460	1	MUFFLER	-
12	AT15158	1	CLAMP	-
13	21H1354	1	SCREW	(A) 3/8" X 1"
14	T17372	1	BRACKET	(A) (NO LONGER AVAILABLE)
15	12H304	1	Lock Washer	(A) 3/8"
16	14H1076	1	Nut	(A) 3/8"
17	03H1825	1	Bolt	(A) 5/16" X 1-1/2"
18	M3119T	1	CLAMP	(A)
19	12H303	1	Lock Washer	(A) 5/16"
20	14H785	1	Nut	(A) 5/16"
21	14H1039	1	Nut	(A) 5/8"
22	12H294	1	Lock Washer	(A) 5/8"
23	24H1363	1	Washer	(A) 41/64" X 1-1/16" X 0.105"
24	T17373	1	BRACKET	(A)
25	14H786	1	Nut	1/4"
26	12H302	1	Lock Washer	1/4"
27	T17475	1	ISOLATOR	(NO LONGER AVAILABLE)
28	19H1227	1	Cap Screw	1/4" X 1/2"
29	T17476	1	BRACE	(NO LONGER AVAILABLE)
30	M4316T	1	CLAMP	(B) (NO LONGER AVAILABLE)
31	03H1544	2	Bolt	(B) 5/16" X 1-1/4"
32	19H1900	1	Cap Screw	(B) 5/16" X 3/4"
33	12H303	3	Lock Washer	(B) 5/16"
34	14H785	3	Nut	(B) 5/16"
35	T17784	1	SUPPORT	(B) (NO LONGER AVAILABLE)
36	M3119T	1	CLAMP	(B)
37	T17783	1	BRACKET	(B) (NO LONGER AVAILABLE)

MUFFLER AND MANIFOLD (DIESEL) (WHEN EQUIPPED WITH REAR EXHAUST) [01C09]
