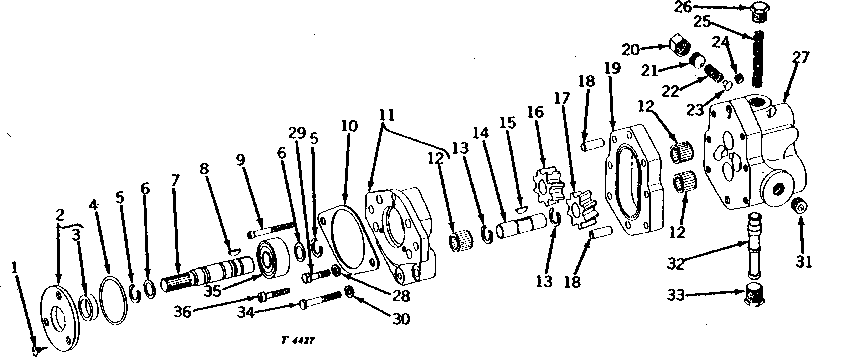

HYDRAULIC PUMP (POWER STEERING) (TRACTOR SERIAL NO. 010001-024694) [02B14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21H1193	3	SCREW	0.190" X 5/8"
2	AT14926	1	PLATE	-
3	AT14993	1	SEAL	-
4	T13832	1	PACKING	-
5	T13841	2	SNAP RING	-
6	T13829	2	WASHER	-
7	T16681	1	DRIVE SHAFT	-
8	26H12	1	SHAFT KEY	1/8" X 3/4"
9	T13845	1	SCREW	-
10	T15788	1	GASKET	-
11	AT12686	1	HOUSING	(NO LONGER AVAILABLE)
12	JD8802	3	Needle Bearing	-
13	T13831	2	SNAP RING	-
14	T13828	1	SHAFT	(NO LONGER AVAILABLE)
15	26H67	1	Shaft Key	1/8" X 3/8"
16	T13846	1	STEERING GEAR	-
17	T13827	1	STEERING GEAR	-
18	T13830	2	DOWEL PIN	(NO LONGER AVAILABLE)
19	T13844	1	PLATE	-
20	T13836	1	EXHAUST CAP	(NO LONGER AVAILABLE)
21	T13886	1	SET SCREW	(NO LONGER AVAILABLE)
22	T13835	1	SPRING	(NO LONGER AVAILABLE)
23	T16682	1	VALVE	(NO LONGER AVAILABLE)
24	15H558	1	Pipe Plug	1/8"
25	M4134T	1	SPRING	(NO LONGER AVAILABLE)
26	T13837	1	FITTING	(NO LONGER AVAILABLE)
27	T13833	1	COVER	(NO LONGER AVAILABLE)
28	12H303	2	Lock Washer	5/16"
29	19H1901	4	Cap Screw	5/16" X 2"
30	12H302	1	Lock Washer	1/4"
31	15H666	1	Pipe Plug	3/8"
32	M4132T	1	PISTON	-
33	T22867	1	Drain Plug	(SUB FOR M4133T)
34	19H2333	1	Cap Screw	1/4" X 2-1/4"
35	JD9243	1	BALL BEARING	-
36	T13842	4	SCREW	(NO LONGER AVAILABLE)
..	AT13586	1	HYDRAULIC PUMP	(NO LONGER AVAILABLE)

HYDRAULIC PUMP (POWER STEERING) (TRACTOR SERIAL NO. 010001-024694) [02B14]
