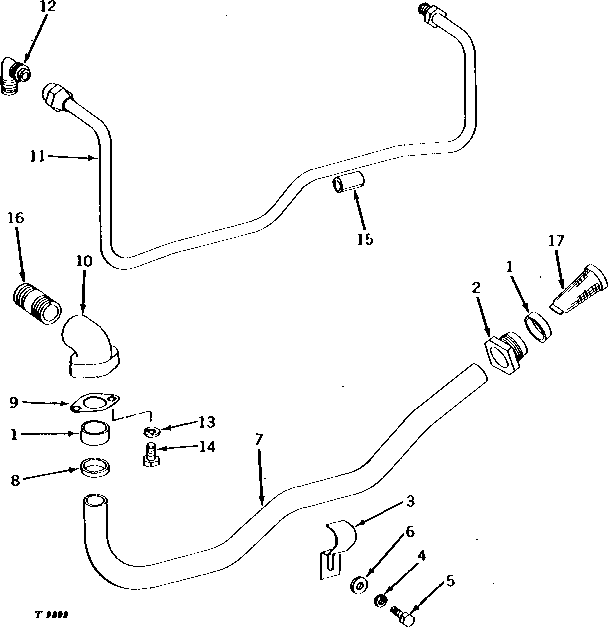

HYDRAULIC OIL LINES (USED WITH SINGLE AND DUAL HYDRAULIC SYSTEMS WITH MANUAL STEERING) [02B20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M3246T	2	BUSHING	-
2	M3249T	1	NUT	(NLA)
3	-	1	Part 3	(SUB T23706 AND 37H57) (SUB FOR T17359)
3	T23706	1	CLAMP	(NO LONGER AVAILABLE)
4	12H303	1	Lock Washer	5/16"
5	19H1900	1	Cap Screw	5/16" X 3/4"
5	-	1	Part 7	(SUB T23706 AND 37H57) (SUB FOR T19402)
5	37H57	1	Screw	5/16" X 3/4"
6	24H1685	1	Washer	11/32" X 47/64" X 0.083"
7	T17358	1	LINE	(A) (OR, RS, UT) (NO LONGER AVAILABLE)
7	T17361	1	LINE	(B) (RS) (NO LONGER AVAILABLE)
7	T17363	1	LINE	(C) (RU) (NO LONGER AVAILABLE)
7	T18357	1	LINE	(C) (RC, RU, RUS) (NO LONGER AVAILABLE)
8	M3247T	1	WASHER	-
9	M3250T	1	FLANGE	-
10	T17357	1	ELBOW FITTING	(NO LONGER AVAILABLE)
11	AT15501	1	LINE	(A) (OR, RS, UT)
11	AT15510	1	LINE	(B) (RS)
11	AT15505	1	LINE	(C) (RU) (NO LONGER AVAILABLE)
11	AT16532	1	OIL LINE	(C) (RC, RU, RUS)
12	T14967	1	FITTING	-
13	12H302	2	Lock Washer	1/4"
14	19H1919	2	Cap Screw	1/4" X 5/8"
15	M2395T	1	BUSHING	-
16	29H658	1	Threaded Nipple	3/4" X 2"
17	T19868	1	STRAINER	-

HYDRAULIC OIL LINES (USED WITH SINGLE AND DUAL HYDRAULIC SYSTEMS WITH MANUAL STEERING) [02B20]
