Открытый узел

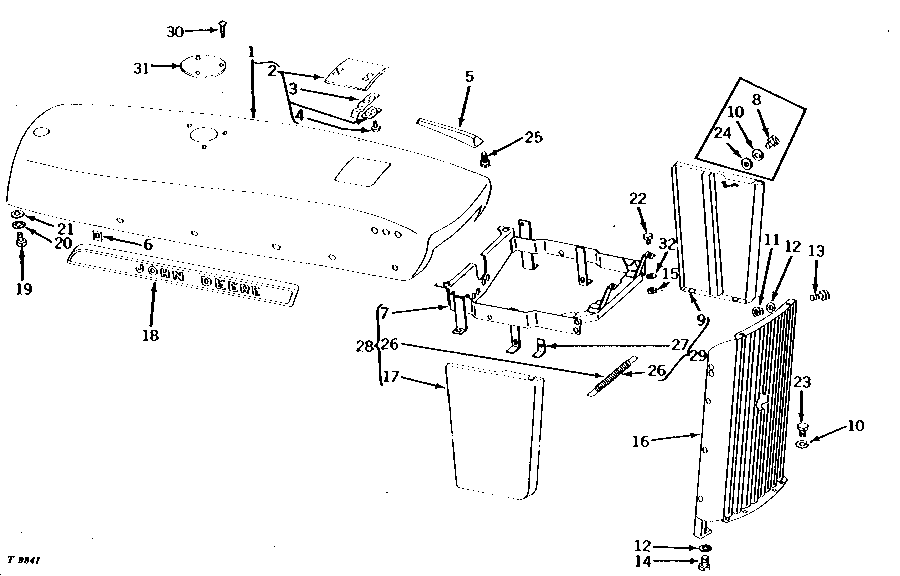

HOOD AND GRILLE ASSEMBLY [02F17]

HOOD AND GRILLE ASSEMBLY [02F17]

HOOD AND GRILLE ASSEMBLY [02F17]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

HOOD AND GRILLE ASSEMBLY [02F17]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT14177	1	HOOD	(A) (RC, RS, RU, UT) (DIESEL) (NO LONGER AVAILABLE)
1	AT14176	1	HOOD	(A) (RC, RS, RU, UT) (GASOLINE) (SUB FOR AT13038) (NO LONGER AVAILABLE)
1	AT16808	1	HOOD	(RUS) (NO LONGER AVAILABLE)
1	AT16770	1	HOOD	(OR, RC, RS, RU, UT) (REAR EXHAUST) (SUB FOR AT15518) (NO LONGER AVAILABLE)
2	AT13041	1	COVER	(NO LONGER AVAILABLE)
3	T10379	2	CLAMP	-
4	16H180	4	RIVET	5/32" X 1/2"
5	AR28047	1	MEDALLION	-
6	L31750	10	CLIP	(OR, RC, RS, RU, UT) (SUB FOR R27888)
7	AT16328	1	SUPPORT	(SUB FOR AT13040) (NO LONGER AVAILABLE)
7	AT16325	1	SUPPORT	(NO LONGER AVAILABLE)
8	19H1227	6	Cap Screw	1/4" X 1/2"
9	AT16327	1	PANEL	-
9	AT16329	1	PANEL	(SUB FOR AT13043) (NO LONGER AVAILABLE)
10	12H302	12	Lock Washer	1/4"
10	12H302	4	Lock Washer	1/4"
11	14H785	4	Nut	5/16"
12	12H303	6	Lock Washer	5/16"
12	12H303	4	Lock Washer	5/16"
13	19H1813	4	CAP SCREW	5/16" X 5/8"
14	19H2127	2	Cap Screw	5/16" X 7/8"
15	14H786	2	Nut	1/4"
16	AT20629	1	GRILLE	(SUB FOR AT13037)
17	AT16326	1	PANEL	(NLA)
17	AT16328	1	SUPPORT	(SUB FOR AT13042) (NO LONGER AVAILABLE)
18	AR28048	1	MOLDING	(OR, RC, RS, RU, UT)
18	R32282	1	LABEL	(RUS)
18	AR28049	1	MOLDING	(OR, RC, RS, RU, UT)
18	R32283	1	LABEL	(RUS)
19	19H1936	3	Cap Screw	3/8" X 3/4"
19	19H1732	3	Cap Screw	3/8" X 1-1/4"
20	12H304	4	Lock Washer	3/8"
21	24H1305	4	Washer	13/32" X 13/16" X 0.065"
22	19H1919	2	Cap Screw	1/4" X 5/8"
23	19H1227	4	Cap Screw	1/4" X 1/2"
24	24H1287	6	Washer	9/32" X 5/8" X 0.065"
25	L31750	2	CLIP	(SUB FOR R27888)
25	R31286	2	SCREW	-
26	R26858	1	SPRING	-
27	T18161	2	ANGLE	(NO LONGER AVAILABLE)
28	AT16328	1	SUPPORT	(NO LONGER AVAILABLE)
29	AT16329	1	PANEL	(NO LONGER AVAILABLE)
30	M1093T	1	SCREW	(REAR EXHAUST)
31	T11970	1	COVER	(REAR EXHAUST) (NO LONGER AVAILABLE)
32	12H302	2	Lock Washer	1/4"
