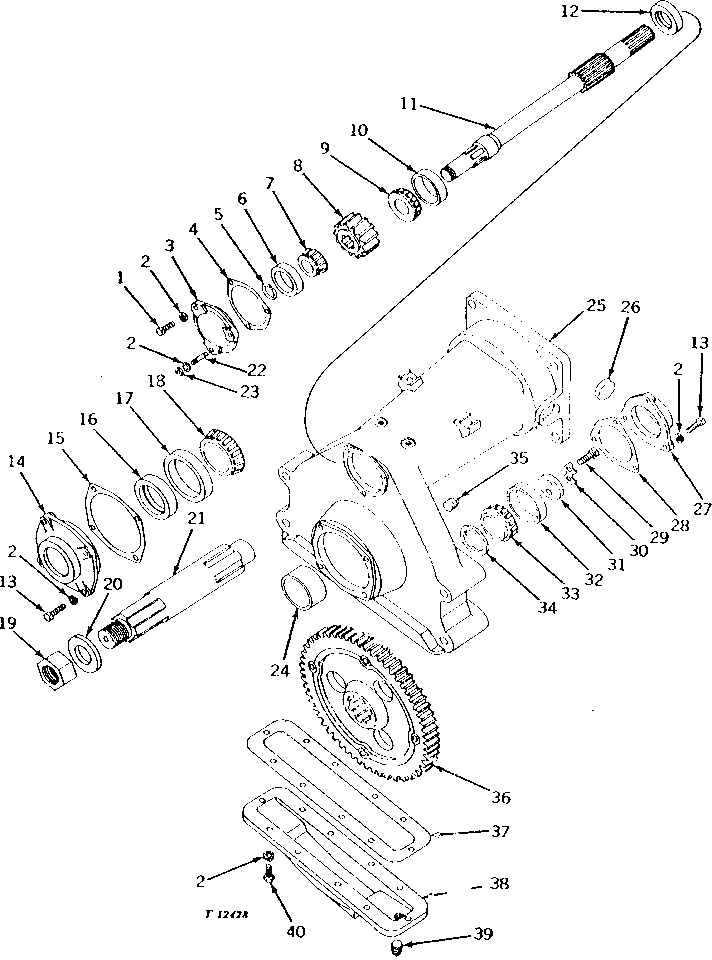

FINAL DRIVE ASSEMBLY (SINGLE ROW-CROP, UTILITY AND ORCHARD) [01J16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1731	2	Cap Screw	3/8" X 1"
2	12H304	20	Lock Washer	3/8"
3	M1792T	1	BEARING HOUSING W/O BEARING	-
4	M2176T	1	SHIM	0.05MM (.002")
4	M2177T	1	SHIM	0.13MM (.005")
4	M2178T	1	SHIM	0.25MM (.010")
5	M205T	1	SNAP RING	-
6	JD7259	1	BEARING CUP	-
7	JD8121	1	BEARING CONE	-
8	T10318	1	PINION	(13 TEETH)
9	JD7207	1	BEARING CONE	-
10	JD7409	1	Bearing Cup	-
11	M1712T	1	SHAFT	-
12	AT12542	1	SEAL	(SUB FOR AM1977T)
13	19H2552	7	CAP SCREW	3/8" X 1-1/8"
14	M2600T	1	BEARING HOUSING W/O BEARING	-
15	M2599T	1	GASKET	-
16	AM939T	1	SEAL	-
17	JD8315	1	BEARING CUP	(SUB JD7272 AND JD8146)
18	JD7589	1	BEARING CONE	(SUB JD7272 AND JD8146)
19	14H656	1	NUT	1-1/2"
20	24H1542	1	Washer	1-17/32" X 3" X 5/16"
21	M2627T	1	SPINDLE	(OR, RS, UT)
21	M2628T	1	SPINDLE	(UT)
22	R32042	1	STUD	(SUB FOR M4405T)
23	14H1076	1	Nut	3/8"
24	M2601T	1	BUSHING	-
25	AM2761T	1	HOUSING	(MARKED M2932T) (NO LONGER AVAILABLE)
26	M1206T	2	Plug	-
27	M2605T	1	COVER	-
28	M2602T	1	SHIM	0.05MM (.002")
28	M2603T	1	SHIM	0.13MM (.005")
28	M2604T	1	SHIM	0.25MM (.010")
29	19H3385	2	Cap Screw	1/2" X 1-1/8"
30	M2370T	1	LOCK	-
31	M2369T	1	BEARING HOUSING W/O BEARING	-
32	JD8314	1	BEARING CUP	(SUB JD7395 AND JD7418)
33	JD7590	1	BEARING CONE	(SUB JD7395 AND JD7418)
34	M1005T	1	WASHER	-
35	15H584	1	Pipe Plug	1/2"
36	AT10207	1	STEERING GEAR	(64 TEETH) (MARKED M2597T AND M4439T) (NO LONGER AVAILABLE)
37	M2226T	1	GASKET	-
38	AM2244T	1	PAN	(MARKED M2401T)
39	15H623	2	Pipe Plug	3/8"
40	19H2552	10	CAP SCREW	3/8" X 1-1/8"

FINAL DRIVE ASSEMBLY (SINGLE ROW-CROP, UTILITY AND ORCHARD) [01J16]
