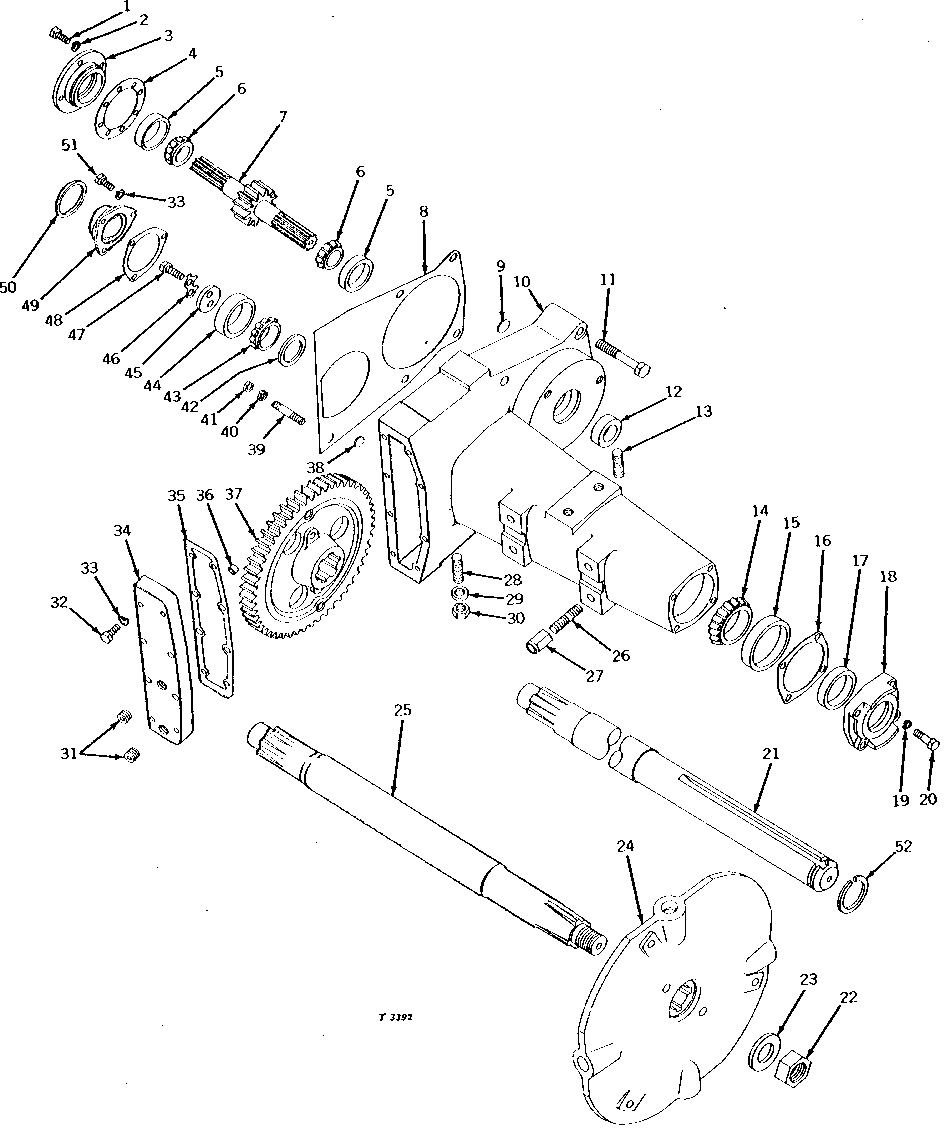

FINAL DRIVE ASSEMBLY (ROW-CROP UTILITY, SPECIAL ROW-CROP UTILITY AND ROW-CROP) [01J12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1905	4	Cap Screw	5/16" X 1"
2	12H303	4	Lock Washer	5/16"
3	M3129T	1	BEARING HOUSING W/O BEARING	-
4	M994T	1	SHIM	0.05MM (.002")
4	M995T	1	SHIM	0.13MM (.005")
4	M996T	1	SHIM	0.25MM (.010")
5	JD8230	2	Bearing Cup	-
6	JD8194	2	Bearing Cone	-
7	T18993	1	SHAFT	(21 AND 13 TEETH) (SUB FOR M4440T)
7	T17493	1	SHAFT	(21 AND 11 TEETH)
8	M3159T	1	GASKET	-
9	30H15	2	PLUG	1-1/8"
10	AT10772	1	HOUSING	(MARKED T10917, T10918 AND T10919)
10	T19598	1	HOUSING	R.H. (SUB FOR T17494)
10	T19599	1	HOUSING	L.H. (SUB FOR T17495)
11	M2671T	4	BOLT	-
11	T15539	2	BOLT	(REAR) (SUB FOR T17490)
11	M2671T	2	BOLT	(FRONT)
12	AT12540	1	Seal	(SUB FOR AM2924T)
13	M3127T	1	STUD	-
14	JD7589	1	BEARING CONE	(SUB JD7272 AND JD8146)
14	JD8146	1	Bearing Cone	-
15	JD8315	1	BEARING CUP	(SUB JD7272 AND JD8146)
15	JD7272	1	Bearing Cup	-
16	-	1	Part 25	0.05MM (.002") (ORDER M1002T)
16	M1003T	1	SHIM	0.13MM (.005")
16	M1004T	1	SHIM	0.25MM (.010")
17	AM939T	1	SEAL	-
18	M1001T	1	RETAINER	(SUB FOR AM972T)
19	12H293	4	Lock Washer	7/16"

FINAL DRIVE ASSEMBLY (ROW-CROP UTILITY, SPECIAL ROW-CROP UTILITY AND ROW-CROP) [01J12]
