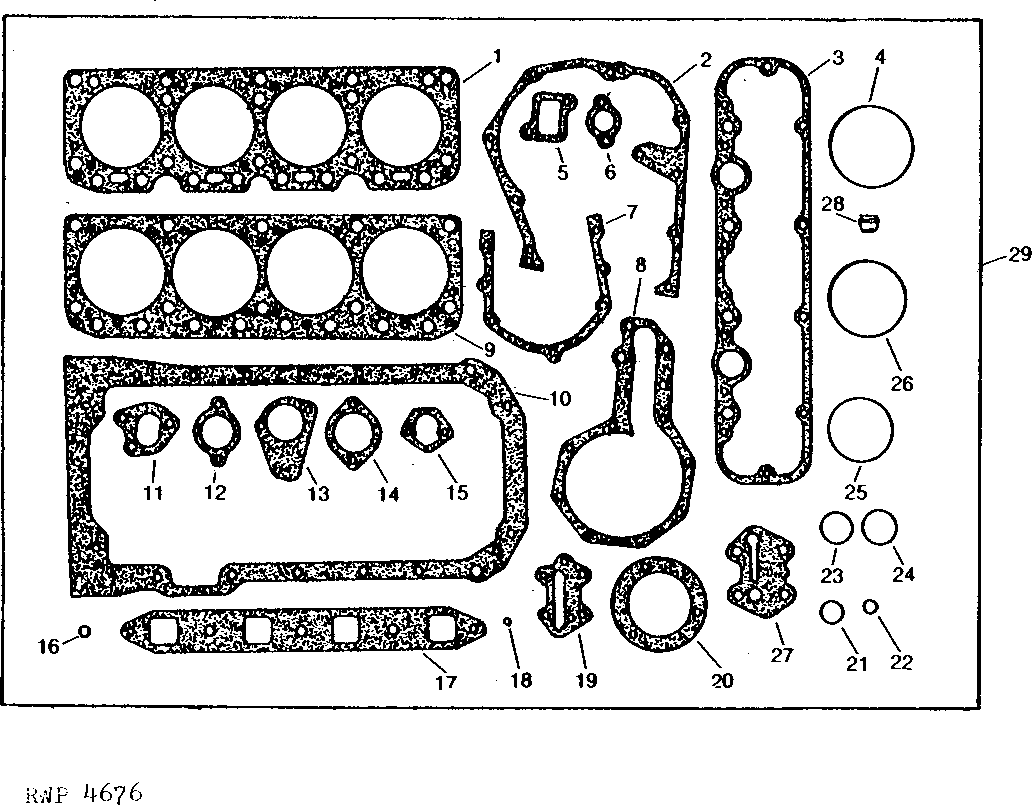

ENGINE OVERHAUL GASKET KIT (DIESEL) [01B21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT16541	1	GASKET	CYLINDER HEAD, (SUB FOR AT14678 AND AT15707) (SUB R99079)
2	T16469	1	GASKET	GEAR COVER
3	T11317	1	GASKET	ROCKER ARM COVER
4	T11178	2	WASHER	FUEL FILTER CASE
5	T11145	1	GASKET	WATER OUTLET
6	T13188	1	GASKET	VENT TUBE
7	T507T	1	GASKET	REAR OIL SEAL HOUSING
8	T26570	1	GASKET	WATER PUMP, (SUB FOR T14688)
9	T17517	1	GASKET	SLEEVE PLATE, (SUB FOR T16165) (SUB R98944)
10	T15018	1	GASKET	OIL PAN (RC, RU)
10	T15025	1	GASKET	OIL PAN (OR, RS, RUS, UT)
11	T10858	1	GASKET	WATER PUMP ATTACHING
12	T11155	2	GASKET	INTAKE MANIFOLD
13	T491T	1	GASKET	CAMSHAFT REAR COVER
14	T437T	1	GASKET	THERMOSTAT COVER
15	R27285	1	GASKET	FUEL PUMP OPENING COVER
16	T16331	4	GASKET	GLOW PLUG
17	T13376	1	GASKET	EXHAUST MANIFOLD
18	M3150T	2	Washer	CAMSHAFT THRUST PLATE
19	T12456	1	GASKET	OIL FILTER BASE
20	T510T	1	GASKET	FRONT OIL SEAL PLATE
21	R460R	1	O-Ring	-
22	T11167	4	WASHER	INJECTION NOZZLE
22	T18969	4	GASKET	INJECTION NOZZLE
23	T11221	8	WASHER	-
24	T19687	4	O-Ring	UPPER TURBULENCE CHAMBER, (SUB FOR T11220)
25	M96T	1	GASKET	OIL FILTER CASE
26	T12457	4	WASHER	-
27	T19043	1	GASKET	OIL FILTER BASE
28	AT15246	4	SEAL	VALVE GUIDE
29	AT16573	1	GASKET	(SUB FOR AT14667 AND AT15778)

ENGINE OVERHAUL GASKET KIT (DIESEL) [01B21]
