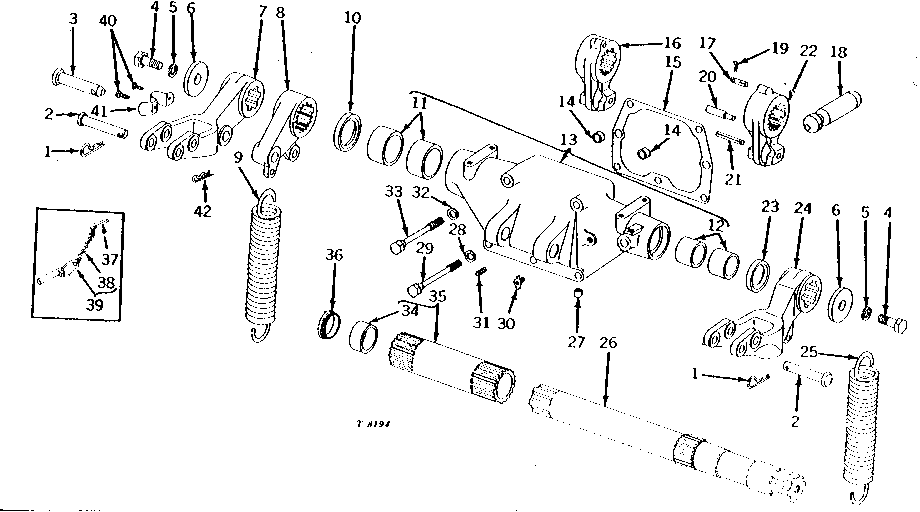

DUAL HYDRAULIC ROCKSHAFT ASSEMBLY (SINGLE ROW-CROP) [02C01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	A3581R	2	Spring Locking Pin	-
2	T18536	2	PIN FASTENER	(SUB FOR T11174)
3	M2071T	1	PIN	-
3	M2071T	1	PIN	(ALSO ORDER A3581R) (SUB FOR M2113T)
4	T11297	2	CAP SCREW	-
5	12H294	2	Lock Washer	5/8"
6	24H1374	2	Washer	21/32" X 3" X 3/8"
7	T14867	1	ARM	(NO LONGER AVAILABLE)
8	M3565T	1	ARM	-
9	M2421T	1	SPRING	-
9	M3168T	1	SPRING	-
10	AM3433T	1	SEAL	-
11	T12740	2	BUSHING	-
12	T12738	2	BUSHING	-
13	AT11948	1	HOUSING	(MARKED T12734) INCLUDES BUSHINGS (NO LONGER AVAILABLE)
14	M827T	2	BUSHING	-
15	M3271T	1	GASKET	-
16	M2138T	1	ARM	(NO LONGER AVAILABLE)
17	M2109T	2	GROOVE PIN	-
18	M554T	2	PIN	(SUB FOR AM761T)
19	R72653	2	Snap Ring	(SUB FOR M2396T)
20	M1975T	1	PIN FASTENER	-
21	34H319	2	SPRING PIN	1/4" X 2-1/8"
22	M2137T	1	ARM	(NO LONGER AVAILABLE)
23	AM3432T	1	SEAL	-
24	T14866	1	ARM	(NO LONGER AVAILABLE)
25	M2593T	1	SPRING	-
25	M3168T	1	SPRING	-
26	M2005T	1	ROCKSHAFT	-
27	M1873T	2	DOWEL PIN	-
28	T20168	3	Washer	(SUB FOR M2834T)
29	19H1806	3	CAP SCREW	1/2" X 5-3/4"
30	AT13740	1	Drain Valve	(SUB FOR AM292T)
31	15H604	1	Pipe Plug	1/4"
32	M3244T	2	WASHER	-
33	M285T	2	CAP SCREW	-
34	M3292T	1	BUSHING	-
35	AM1922T	1	ROCKSHAFT	-
36	AT13262	1	SEAL	-
37	11M7084	1	Cotter Pin	5 X 25 MM
38	T19751	1	LINK CHAIN	(SUB FOR AM1910T) (NO LONGER AVAILABLE)
39	B11182	1	QUICK LOCK PIN	(SUB FOR AM1926T) (SUB M115827)
40	34H212	2	SPRING PIN	5/64" X 5/8", (SUB FOR M2119T)
41	M2011T	1	CLIP	-
42	A3581R	1	Spring Locking Pin	-

DUAL HYDRAULIC ROCKSHAFT ASSEMBLY (SINGLE ROW-CROP) [02C01]
