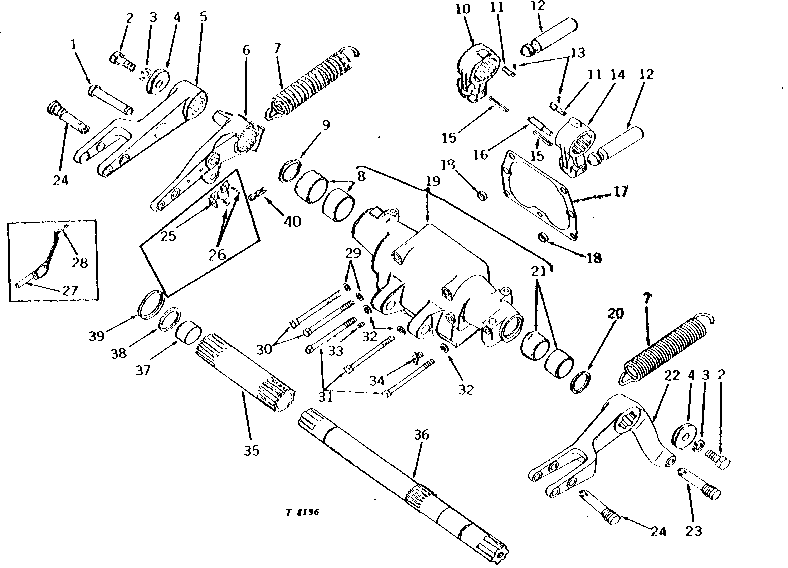

DUAL HYDRAULIC ROCKSHAFT ASSEMBLY (ROW-CROP UTILITY AND ROW-CROP) [02C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M2071T	1	PIN	-
1	M2071T	1	PIN	(SUB FOR M2113T) (ALSO ORDER A3581R)
2	T11297	2	CAP SCREW	-
3	12H294	2	Lock Washer	5/8"
4	24H1374	2	Washer	21/32" X 3" X 3/8"
5	M2851T	1	LIFT ARM	(NO LONGER AVAILABLE)
6	M3167T	1	ARM	(NO LONGER AVAILABLE)
7	M3168T	2	SPRING	-
8	T12740	2	BUSHING	-
9	AM3433T	1	SEAL	-
10	M2138T	1	ARM	(NO LONGER AVAILABLE)
11	M2109T	2	GROOVE PIN	-
12	M554T	2	PIN	(SUB FOR AM761T)
13	R72653	2	Snap Ring	(SUB FOR M2396T)
14	M2137T	1	ARM	(NO LONGER AVAILABLE)
15	34H319	2	SPRING PIN	1/4" X 2-1/8"
16	M1975T	1	PIN FASTENER	-
17	M3271T	1	GASKET	-
18	M827T	2	BUSHING	-
19	AT11949	1	HOUSING	(MARKED T12735)
20	AM3432T	1	SEAL	-
21	T12738	2	BUSHING	-
22	M3166T	1	ARM	(NO LONGER AVAILABLE)
23	AM1928T	2	PIN FASTENER	-
24	-	2	Part 25	(SUB A3581R AND T18536) (SUB FOR AM1927T)
25	M2011T	1	CLIP	-
26	34H212	2	SPRING PIN	5/64" X 5/8", (SUB FOR M2119T)
27	AA21292	1	Quick Lock Pin	(SUB FOR AM1926T OR B11182)
28	11M7084	1	Cotter Pin	5 X 25 MM
29	M3244T	2	WASHER	3/16" X 1"
30	M285T	2	CAP SCREW	-
31	19H1806	3	CAP SCREW	1/2" X 5-3/4"
32	T20168	3	Washer	(SUB FOR M2834T)
33	15H604	2	Pipe Plug	1/4"
33	15H275	1	Pipe Plug	1/4"
34	AT13740	1	Drain Valve	(SUB FOR AM292T)
35	AM1922T	1	ROCKSHAFT	-
36	M2005T	1	ROCKSHAFT	-
37	M3292T	1	BUSHING	-
38	AT13262	1	SEAL	(SUB FOR M2107T)
39	AT13262	1	SEAL	(SUB FOR M1880T)
40	A3581R	1	Spring Locking Pin	-

DUAL HYDRAULIC ROCKSHAFT ASSEMBLY (ROW-CROP UTILITY AND ROW-CROP) [02C03]
