DUAL HYDRAULIC FRONT COVER AND QUADRANT (SINGLE ROW-CROP) [02C24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
26	19H2657	2	CAP SCREW	5/16" X 3-1/8"
26	19H2681	1	CAP SCREW	5/16" X 5-7/8", UPPER REAR
27	M4430T	1	SPRING	-
28	M2170T	1	BUSHING	-
29	M2095T	1	SNAP RING	-
30	M3737T	1	SHAFT	(NO LONGER AVAILABLE)
31	M3736T	2	BUSHING	(NLA)
32	AM3426T	1	SEAL	-
33	AM3427T	1	SHAFT	(NO LONGER AVAILABLE)
34	T19580	1	SEAL	(SUB FOR AT16742)
35	M847T	2	WASHER	-
36	M205T	1	SNAP RING	-
37	M3265T	2	SNAP RING	-
38	-	1	Part 14	(SUB T12619 AND T13119) (SUB FOR M3266T)
38	T12619	2	PLUG	-
39	-	1	Part 16	(SUB T13119 AND T12619) (SUB FOR M543T)
39	T13119	2	O-Ring	-
40	15H666	1	Pipe Plug	3/8"
41	15H253	2	Pipe Plug	1/8"
42	AM1576T	1	TUBE	-
43	AM1586T	1	EXHAUST CAP	-
44	M1370T	1	ADAPTER FITTING	-
44	M1345T	1	ELBOW FITTING	-
45	M2919T	1	VALVE	-
47	M3150T	2	Washer	-
48	11M7079	4	Cotter Pin	0.098" X 0.472"
49	P46404	4	Pin Fastener	(SUB FOR L307T)
50	M1980T	4	STRAP	-
51	M3506T	1	CRANK	R.H. (NO LONGER AVAILABLE)
52	M3507T	1	CRANK	L.H. (NO LONGER AVAILABLE)
53	12H302	7	Lock Washer	1/4"
54	19H1791	2	Cap Screw	1/4" X 1-1/4"
55	19H2036	5	Cap Screw	1/4" X 7/8"
56	JD7797	1	Lubrication Fitting	-
57	M3564T	1	LEVER	(NO LONGER AVAILABLE)
58	14H1080	2	Nut	3/8"
59	14H774	1	Nut	3/8"
60	M3730T	1	STUD	(NO LONGER AVAILABLE)
61	14H769	1	NUT	3/8"
62	AT25884	1	BALL JOINT	(SUB FOR AM1925T)
63	AM1924T	1	Ball Joint	-
64	M1304T	1	WASHER	-
65	M1306T	1	SNAP RING	-
66	M1977T	2	WASHER	-
67	T11397	1	BUSHING	-
68	T11399	1	WASHER	-
69	T11392	1	DRAIN PLUG	-
46A	-	1	Part 25	(SUB T18482, T11392, T11397, AM1074T, M1098T, T18481 AND T11399) (SUB FOR M4053T)
46B	AT21166	1	COVER	(SUB FOR T18482) (NO LONGER AVAILABLE)

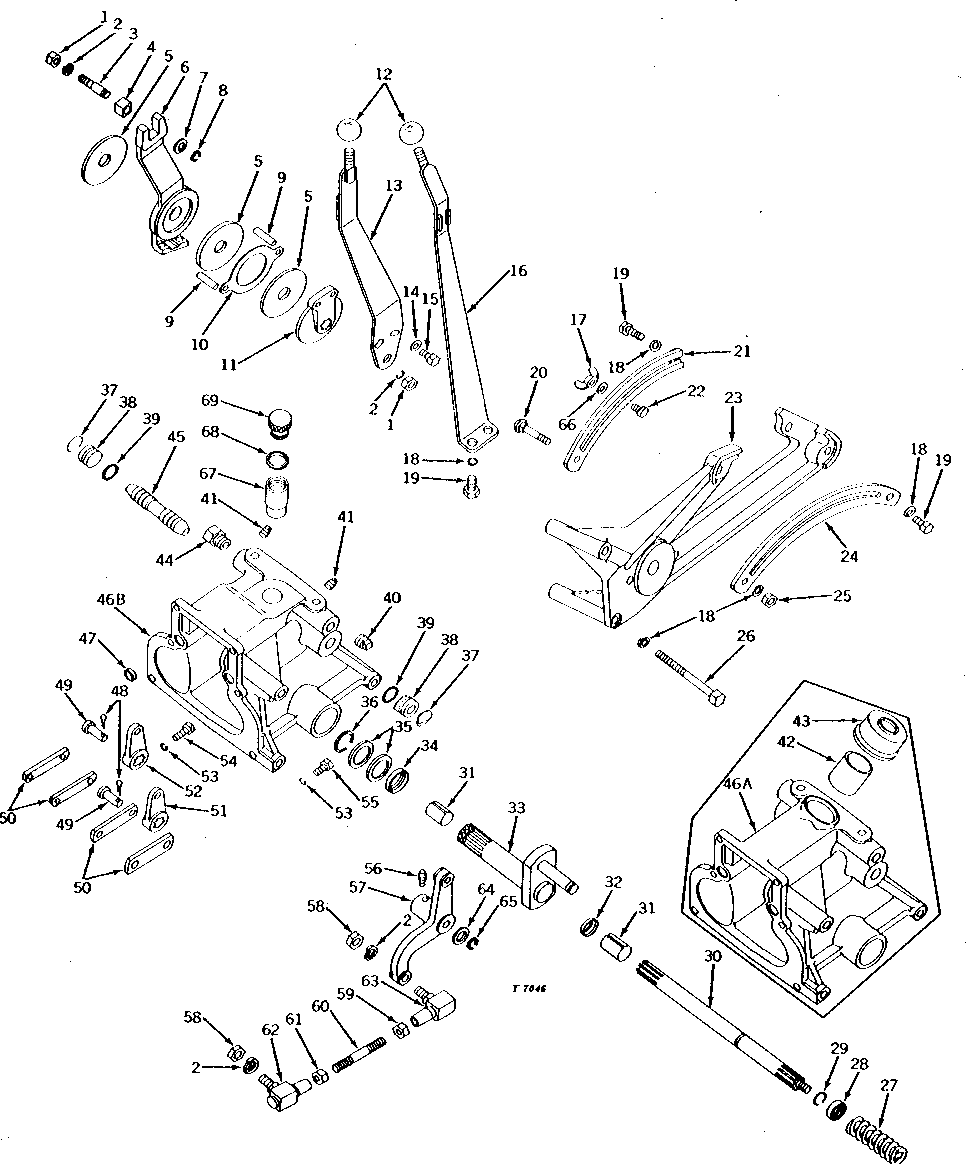

DUAL HYDRAULIC FRONT COVER AND QUADRANT (SINGLE ROW-CROP) [02C24]
