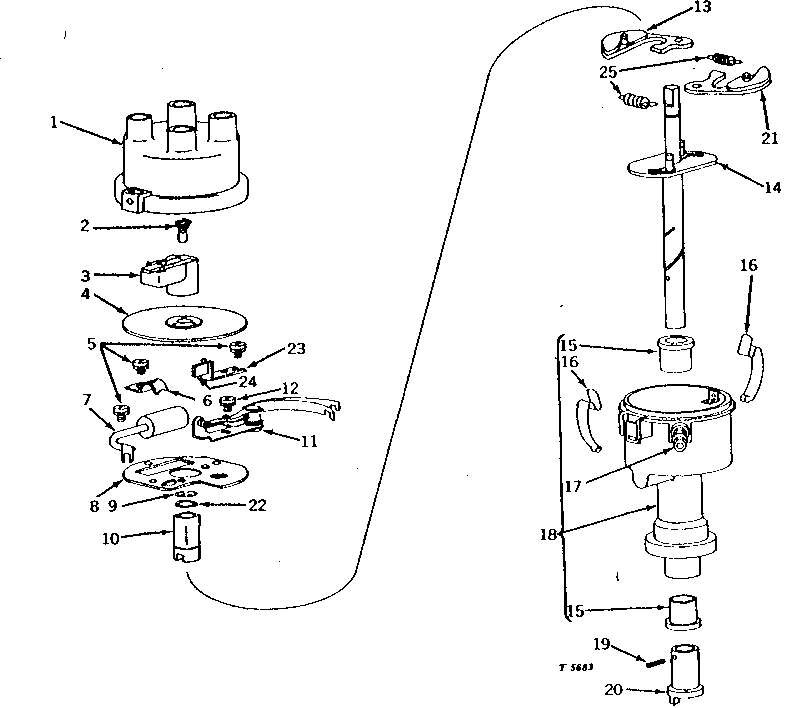

DISTRIBUTOR (WICO NO. X-30091E) PRESTOLITE [01G21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT14190	1	CAP	(SUB FOR AT11561)
2	AT14189	1	SPRING	(SUB FOR AT11266)
3	AR12001	1	ROTOR	(SUB FOR AT11264)
4	AT11263	1	SEAL	-
5	AT11260	3	SCREW WITH WASHER	-
6	T11567	1	CLAMP	(SUB AT15929)
7	AT14468	1	CAPACITOR	(SUB FOR AR12000, AT14873 OR AT15929)
8	T11568	1	PLATE	(NO LONGER AVAILABLE)
9	R30437	1	Snap Ring	(SUB FOR T15850)
10	T15851	1	CAM	(SUB FOR T11971) (NO LONGER AVAILABLE)
11	AR12003	1	BREAKER POINTS	-
12	AT11259	1	SCREW WITH WASHER	(NO LONGER AVAILABLE)
13	AT14121	1	WEIGHT	(SUB FOR AT11261) (NLA)
14	AT14123	1	SHAFT	(SUB FOR AT11560) (SUB AT21351 AND AT21941)
15	T11528	2	BUSHING	-
16	T11570	2	CLIP	-
17	AT11258	1	DRY CHARGED BATTERY	-
18	AT11267	1	HOUSING	(NO LONGER AVAILABLE)
19	T17309	1	PIN	(NO LONGER AVAILABLE)
20	T10467	1	COUPLING	(NLA)
21	AT14122	1	WEIGHT	(SUB FOR AT11262)
22	T15849	1	WASHER	(NO LONGER AVAILABLE)
23	T12753	1	BRACKET	(NO LONGER AVAILABLE)
24	T17259	1	SEAL	(SUB FOR 5446) (NO LONGER AVAILABLE)
25	AT14792	1	SPRING	-
..	AT14119	1	IGNITION DISTRIBUTOR	(SUB AT21351 AND AT21941)

DISTRIBUTOR (WICO NO. X-30091E) PRESTOLITE [01G21]

Нет текстового описания
